Ismail Flanges is a Jakarta, Indonesia-based quality manufacturer and supplier of Alloy Steel Flanges, providing strong and durable flange solutions for challenging industrial uses. With consideration to international standards like ASTM A182 and ASME B16.5, these flanges are specifically engineered to work under extreme temperature conditions, high-pressure, and corrosive environments. Ismail Flanges provides a broad spectrum of alloy steel grades such as F1, F5, F9, F11, F12, F22, and F91 to match different operating requirements in industries such as oil & gas, power generation, petrochemicals, and refineries.
Alloy Steel Flanges contain elements such as chromium, molybdenum, and occasionally vanadium, which improve their mechanical strength, hardness, and resistance to corrosion. Depending on the grade, they have tensile strengths of 415 MPa or more to well above 850 MPa. They have fine resistance to oxidation, thermal fatigue, and creep during long exposure to high temperature. Heat treatment operations like normalization, quenching, and tempering are generally used to increase toughness and endurance in service.
| ASTM A182 Flange Size Chart | 1/2″ (15 NB) to 48″ (1200NB) DN10~DN5000 |
|---|---|
| ASME SA182m Alloy Steel SORF Flange Standards | ANSI/ASME B16.5, B16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, GOST Flange, ASME/ANSI B16.5/16.36/16.47A/16.47B, MSS S44, ISO70051, JISB2220, BS1560-3.1, API7S-15, API7S-43, API605, EN1092 |
| Alloy Steel ASTM A182 Flange Pressure Rating ANSI | Class 150 LBS, 300 LBS, 600 LBS, 900 LBS, 1500 LBS, 2500 LBS |
| Alloy Steel Flange Pressure Calculation in DIN | 6Bar 10Bar 16Bar 25Bar 40Bar / PN6 PN10 PN16 PN25 PN40, PN64 |
| Alloy Steel FlangeJIS | 5K, 10 K, 16 K 20 K, 30 K, 40 K, 63 K |
| Alloy Steel FlangeUNI | 6Bar 10Bar 16Bar 25Bar 40Bar |
| ASTM A182 FlangeEN | 6Bar 10Bar 16Bar 25Bar 40Bar |
| Coating | Oil Black Paint, Anti-rust Paint, Zinc Plated, Yellow Transparent, Cold and Hot Dip Galvanized |
| Most common types of ASME SA182m Alloy Steel Flange | Forged / Threaded / Screwed / Plate |
| Test Certificates | EN 10204/3.1B Raw Materials Certificate 100% Radiography Test Report Third Party Inspection Report, etc |
| ASTM A182 Flange Production technique |
|
| ASTM A182 Alloy Steel Flange Connect Type/ Flange Face Type | Raised Face (RF), Ring Type Joint (RTJ), Flat Face (FF), Large Male-Female (LMF), Lap-Joint Face (LJF), Small Male-Female (SMF), Small Tongue, Large Tongue & Groove, Groove |
| Special design | As per your drawing AS, ANSI, BS, DIN and JIS 15 NB (1/2″) to 200 NB (8″) Equal and Reducing Configurations |
| ASTM A182 Flange Test | Direct-reading Spectrograph, Hydrostatic testing machine, X-ray detector, UI trasonic flaw detector, Magnetic particle detector |
| ASTM A182 Alloy Steel Flange Equipment | Press machine, Bending machine, Pushing Machine, electric bevelling machine, Sand-blasting machine etc |
| Alloy Steel ASTM A182 Flange Origin | Indian / West Europe / Japan / USA / Korean |
| Manufacturer of Alloy Steel Flange | ANSI DIN, GOST, JIS, UNI, BS, AS2129, AWWA, EN, SABS, NFE etc. : -BS Flange, EN Flange, API 6A Flange, ANSI Flange, ASME Flange, DIN Flange, EN1092-1 Flange, UNI Flange, JIS/ KS Flange, BS4504 Flange, GB Flange, AWWA C207 Flange, GOST Flange, PSI Flange
|
| Alloy Steel Flange Uses & application |
|
| Alloy Steel ASTM A182 Flange Export to | Ireland, Singapore, Indonesia, Ukraine, Saudi Arabia, Spain, Canada, USA, Brazil, Thailand, Korea, Iran, India, Egypt, Oman, Dubai, Peru, etc |
| Grade | C | Mn | Si | S | P | Cr | Mo |
| A182 F5 | ≤0.15 | ≤0.6 | ≤0.5 | ≤0.04 | ≤0.03 | 4-6 | 0.44-0.65 |
| A182 F9 | ≤0.15 | ≤0.6 | 1.00 | ≤0.03 | ≤0.03 | 8-10 | 0.90-1.10 |
| A182 F11 | 0.05-0.2 | 0.3-0.8 | 0.5-1 | ≤0.030 | ≤0.030 | 1-1.5 | 1-1.5 |
| A182 F22 | 0.05-0.15 | 0.3-0.6 | ≤0.5 | ≤0.04 | ≤0.04 | 2-2.5 | 0.87-1.13 |
| A182 F91 | 0.05-0.15 | 0.3-0.6 | ≤0.5 | ≤0.04 | ≤0.04 | 2-2.5 | 0.87-1.13 |
| Grade | Tensile Strength (Mpa) | Yield Strength (Mpa) | Elongation % |
| A182 F5 | 415 – 585 | ≥205 | ≥20 |
| A182 F9 | 380 min | 585 min | ≥30 |
| A182 F11 | 415 – 585 | ≥205 | ≥20 |
| A182 F22 | 415-585 | ≥205 | ≥20 |
| A182 F91 | ≥590 | ≥415 | ≥20 |

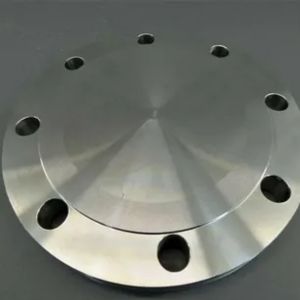

Ismail Flanges, a leading supplier in Indonesia, Jakarta, offers an extensive selection of Alloy Steel Flanges, including weld neck flanges, slip-on flanges, blind flanges, threaded flanges, and lap joint flanges. Designed for diverse industrial applications, our high-quality inventory and commitment to exceptional service make us a trusted choice for flange products in the region.
These flanges are extensively utilized in mission-critical systems like boiler parts, high-pressure steam pipes, nuclear reactors, chemical processing units, and heavy-duty piping systems. Alloy Steel Flanges are particularly useful in thermal cycle, high mechanical load, or aggressive chemical exposure applications. They ensure safe, leak-tight connections and remain reliable during dynamic operating conditions. Their tested performance and flexibility make them a popular choice among engineers and project managers operating in high-demand industrial applications.
Yes, we offer custom sizes for Alloy Steel Flanges to meet specific project needs. Our team at Ismail Flanges is committed to providing tailored solutions for all your requirements. For more details, contact us at sales@ismailflanges.id.
We are renowned for delivering products with precise, accurate dimensions. Each product undergoes thorough testing, both destructive and non-destructive, to ensure quality before being shipped to our customers.
Our team is ready to assist you. Contact us for any queries or personalized solutions.
