Based in Jakarta, Indonesia, Ismail Flanges is a top producer and supplier of Hastelloy Flanges, offering high-performance flanging solutions to businesses all over the world. Nickel is the main component of the Hastelloy family of corrosion-resistant metal alloys, which also contains different amounts of molybdenum, iron, cobalt, and chromium. Hastelloy is well-known for its exceptional resistance to harsh chemicals, high temperatures, and oxidising and reducing conditions, making it the perfect material for demanding applications. Our Hastelloy flanges meet international standards and come in a variety of grades, including C22, C276, and X. For all project requirements, Ismail Flanges provides dependable delivery, competitive pricing, and precision engineering.
High nickel (roughly 50–70%), significant molybdenum (up to 17%), chromium (12–16%), iron, and trace elements like cobalt and tungsten, depending on the grade (e.g., C22 or C276), are all common in hastelloy flanges. This composition offers remarkable resistance to oxidising agents, stress corrosion cracking, and pitting. Hastelloy flanges typically have high elongation and ductility, with tensile strengths ranging from 690 to 785 MPa and yield strengths between 275 and 355 MPa. In order to ensure long-term durability and structural integrity, these mechanical properties enable them to function dependably under severe chemical conditions, high pressures, and extremely high temperatures.
| B564 Gr Flange Size Chart | 1/2″ (15 NB) to 48″ (1200NB) DN10~DN5000 |
|---|---|
| Hastelloy Alloy Flange Standards | ANSI/ASME B16.5, B16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, GOST Flange, ASME/ANSI B16.5/16.36/16.47A/16.47B, MSS S44, ISO70051, JISB2220, BS1560-3.1, API7S-15, API7S-43, API605, EN1092 |
| Alloy Grade Flange Pressure Rating ANSI | Class 150 LBS, 300 LBS, LBS, 900 LBS, 1500 LBS, 2500 LBS |
| ASTM B564 Hastelloy Flanges Pressure Calculation in DIN | 6Bar 10Bar 16Bar 25Bar 40Bar / PN6 PN10 PN16 PN25 PN40, PN64 |
| ASME SB 564 Flange | 5K, 10 K, 16 K 20 K, 30 K, 40 K, 63 K |
| ASME SB564 Hastelloy Alloy Flange UNI | 6Bar 10Bar 16Bar 25Bar 40Bar |
| B564 Flange EN | 6Bar 10Bar 16Bar 25Bar 40Bar |
| Coating | Oil Black Paint, Anti-rust Paint, Zinc Plated, Yellow Transparent, Cold and Hot Dip Galvanized |
| Most common types of ASTM B564 Hastelloy Flange | Forged / Threaded / Screwed / Plate |
| Test Certificates | EN 10204/3.1B Raw Materials Certificate 100% Radiography Test Report Third Party Inspection Report, etc |
| ASME SB564M Alloy Flange Production technique | Forged, Heat treated and machined |
| B564 Grade Flange Connect Type/ Flange Face Type | Raised Face (RF), Ring Type Joint (RTJ), Flat Face (FF), Large Male-Female (LMF), Lap-Joint Face (LJF), Small Male-Female (SMF), Small Tongue, Large Tongue & Groove, Groove |
| Special design | As per your drawing AS, ANSI, BS, DIN and JIS 15 NB (1/2″) to 200 NB (8″) Equal and Reducing Configurations |
| ASME B564 Nickel Alloy Flange Test | Direct-reading Spectrograph, Hydrostatic testing machine, X-ray detector, UI trasonic flaw detector, Magnetic particle detector |
| ASTM B564 Alloy Flange Equipment | Press machine, Bending machine, Pushing Machine, electric bevelling machine, Sand-blasting machine etc |
| Alloy Flange Origin | Indian / West Europe / Japan / USA / Korean |
| Manufacturer of Hastelloy Alloy ASTM B564 Flange | ANSI DIN, GOST, JIS, UNI, BS, AS2129, AWWA, EN, SABS, NFE etc. ASTM B564 Flange: -BS Flange, EN Flange, API 6A Flange, ANSI Flange, ASME Flange, DIN Flange, EN1092-1 Flange, UNI Flange, JIS/ KS Flange, BS4504 Flange, GB Flange, AWWA C207 Flange, GOST Flange, PSI Flange B.S: BS4504 , BS3293, BS1560, BS10 AS 2129: Table D; Table E; Table H ANSI B16.5, ANSI B16.47 Series A & B, MSS SP44, ASA, API-605, AWWA, Custom Drawings ANSI : ANSI B16.5, ANSI B16.47(API605), MSS SP44, ANSI B16.36, ANSI B16.48 ANSI B16.5, ANSI B16.47, MSS SP44, ANSI B16.36, ANSI B16.48 American standard (ANSI) German (DIN) British standard (BS) DIN: DIN 2527, DIN 2566, DIN 2573, DIN 2576, DIN 2641, DIN 2642, DIN 2655, DIN 2656, DIN 2627, DIN 2628, DIN 2629, DIN 2631, DIN 2632, DIN 2633, DIN 2634, DIN 2635, DIN 2636, DIN 2637, DIN 2638 ASTM B564 Hastelloy Flanges The other standard: AWWA C207; EN1092-1, GOST12820, JIS B2220; KS B1503, SABS1123; NFE29203; UNI2276 |
| ASME SB564M Hastelloy Flange Uses & application | Bitumen upgraders. Heavy oil refineries. Nuclear power (mostly seamless). Petrochemicals and acids. |

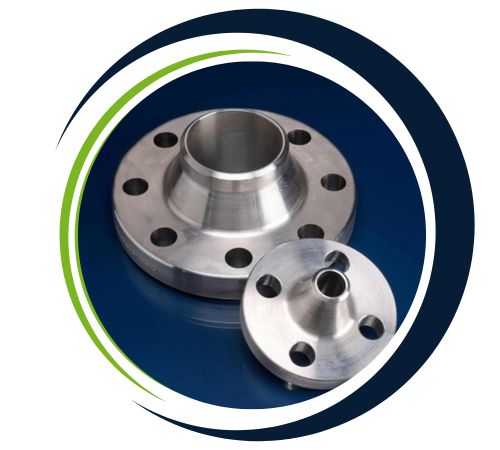

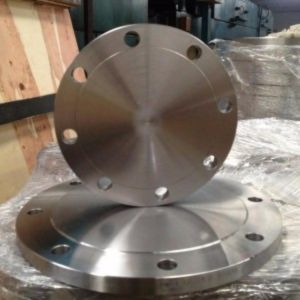

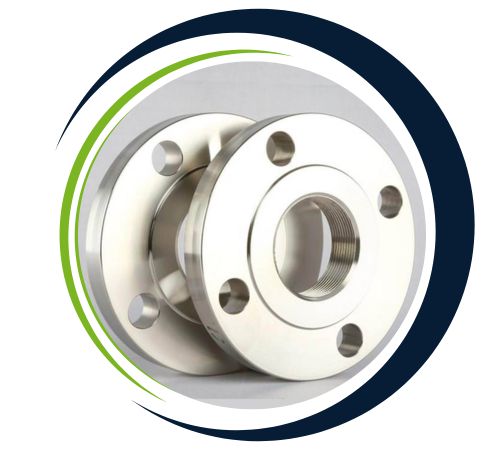

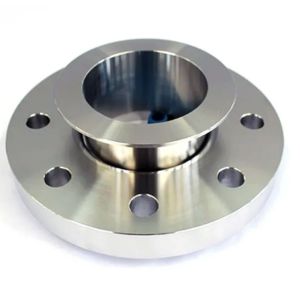

Ismail Flanges, a leading supplier in Indonesia, Jakarta, offers an extensive selection of Hastelloy Flanges, including weld neck flanges, slip-on flanges, blind flanges, threaded flanges, and lap joint flanges. Designed for diverse industrial applications, our high-quality inventory and commitment to exceptional service make us a trusted choice for flange products in the region.
Industries that work in extremely corrosive and hot conditions frequently use hastelloy flanges. Wastewater treatment systems, pulp and paper, marine engineering, chemical processing, and pollution control are important applications. They are perfect for use in reactors, heat exchangers, pressure vessels, flue gas scrubbers and piping systems that handle strong acids like nitric, sulphuric and hydrochloric acid. Hastelloy flanges are also utilised in food processing and pharmaceutical facilities where resistance to contamination is essential. They are a favoured option for mission-critical applications in harsh environments due to their remarkable durability, resistance to localised corrosion, and extended service life.
| ASME/ANSI B 16.5 | Blind Flange, High Hub Blind Flange, Slip on Flange, Welding Neck Flange, Socket Weld Flange, Ring Type Joint Flange, Lap Joint Flange, Threaded Flange |
| PRESSURE CLASS | 150, 300, 400, 600, 900, 1500, 2500 |
| ASME/ANSI B 16.47 | Blind Flange [Series A & B],Welding Neck Flange |
| PRESSURE CLASS | 75, 150, 300, 400, 600, 900 |
| ASME/ANSI B 16.36 | Slip on Flange, Threaded Flange, Welding Neck Flange, |
| PRESSURE CLASS | 300, 400, 600, 900, 1500, 2500 |
| BS 4504 SEC 3.1 | Plate Flange, Loose Plate Flange, Loose Plate With Weld Neck Flange, Blank Flange, Welding Neck Flange, Hubbed Slip on Flange, Hubbed Threaded Flange, Lapped Pipe End Flange, |
| PRESSURE CLASS | PN 2.5 TO PN 40 |
| BS 4504[PART 1] | Plate Flange, Loose Plate With Weld On Plate Collar, Blank Flange, Welding Neck Flange, Hubbed Slip-On Hubbed Threaded, |
| PRESSURE CLASS | PN 2.5 TO PN 400 |
| BS 1560 BOSS | Plate Flange, Loose Plate With Weld On Plate Collar, Blank Flange, Welding Neck Flange, Hubbed Slip-On Hubbed Threaded, |
| PRESSURE CLASS | 150, 300, 400, C276, 900, 1500, 2500 |
| BS10 | Welding Neck Flange, Plate Slip-On Flange, Screwed Boss Flange, Slip-On Boss Flange, Blind Flange |
| TABLE | D, E, F, H |
| DIN FLANGES | DIN 2527, 2566, 2573, 2576, 2641,2642, 2655, 2656, 2627, 2628, 2629, 2631, 2632, 2633, 2634, 2635, 2636, 2637,2638, 2673 |
| PRESSURE CLASS | PN 6 TO PN 100 |
| Flange Schedule/Class | Pipe Size – Pipe Flanges | Flange Connection Type | Flange Material | Max. Pressure |
|---|---|---|---|---|
| ASME B16.5 Class 150 | 1/2″ | FNPT | Hastelloy Flanges | 150 psi |
| ASME B16.5 Class 150 | 1/2″ | Socket Weld | Hastelloy Alloy Flanges | 275 psi |
| ASME B16.5 Class 150 | 1/2″ | Welded | Hastelloy Flanges | 150 psi |
| ASME B16.5 Class 150 | 3/4″ | FNPT | Hastelloy Alloy Flanges | 150 psi |
| ASME B16.5 Class 150 | 3/4″ | Socket Weld | Hastelloy Flanges | 275 psi |
| ASME B16.5 Class 150 | 1-1/4″ | Socket Weld | Hastelloy Alloy Flanges | 275 psi |
| ASME B16.5 Class 150 | 1-1/2″ | Socket Weld | Hastelloy Flanges | 275 psi |
| ASME B16.5 Class 150 | 2″ | FNPT | Hastelloy Alloy Flanges | 150 psi |
| ASME B16.5 Class 150 | 2″ | Socket Weld | Hastelloy Flanges | 275 psi |
| ASME B16.5 Class 150 | 2-1/2″ | Socket Weld | Hastelloy Alloy Flanges | 275 psi |
| ASME B16.5 Class 150 | 3″ | Socket Weld | Hastelloy Flanges | 275 psi |
| ASME B16.5 Class 150 | 4″ | FNPT | Hastelloy Alloy Flanges | 150 psi |
| ASME B16.5 Class 150 | 4″ | Socket Weld | Hastelloy Flanges | 275 psi |
| ASME B16.5 Class 300 | 1/2″ | Slip On | Hastelloy Alloy Flanges | 720 psi |
| ASME B16.5 Class 300 | 1/2″ | Slip On | Hastelloy Flanges | 720 psi |
| ASME B16.5 Class 300 | 1″ | Slip On | Hastelloy Alloy Flanges | 720 psi |
| ASME B16.5 Class 300 | 1″ | Slip On | Hastelloy Flanges | 720 psi |
| ASME B16.5 Class 300 | 1-1/4″ | FNPT | Hastelloy Alloy Flanges | 720 psi |
| ASME B16.5 Class 300 | 1-1/4″ | Slip On | Hastelloy Flanges | 720 psi |
| ASME B16.5 Class 300 | 1-1/2″ | Slip On | Hastelloy Alloy Flanges | 720 psi |
| ASME B16.5 Class 300 | 1-1/2″ | Slip On | Hastelloy Flanges | 720 psi |
| ASME B16.5 Class 300 | 2″ | Slip On | Hastelloy Alloy Flanges | 720 psi |
| ASME B16.5 Class 300 | 2″ | Slip On | Hastelloy Flanges | 720 psi |
| ASME B16.5 Class 300 | 2-1/2″ | Slip On | Hastelloy Alloy Flanges | 720 psi |
| ASME B16.5 Class 300 | 2-1/2″ | Slip On | Hastelloy Flanges | 720 psi |
| ASME B16.5 Class 300 | 3″ | Slip On | Hastelloy Alloy Flanges | 720 psi |
| ASME B16.5 Class 300 | 3″ | Slip On | Hastelloy Flanges | 720 psi |
| ASME B16.5 Class 300 | 4″ | Slip On | Hastelloy Alloy Flanges | 720 psi |
| ASME B16.5 Class 300 | 4″ | Slip On | Hastelloy Flanges | 720 psi |
Yes, we offer custom sizes for Hastelloy Flanges to meet specific project needs. Our team at Ismail Flanges is committed to providing tailored solutions for all your requirements. For more details, contact us at sales@ismailflanges.id.
We are renowned for delivering products with precise, accurate dimensions. Each product undergoes thorough testing, both destructive and non-destructive, to ensure quality before being shipped to our customers.
Our team is ready to assist you. Contact us for any queries or personalized solutions.
