Located in Jakarta, Indonesia, Ismail Flanges is a top producer and supplier of Hastelloy C76 Flanges, which are made to withstand severe corrosion in demanding industrial settings. The nickel-molybdenum alloy Hastelloy C76 is renowned for its exceptional resistance to potent oxidising and reducing agents, such as strong acids and corrosion caused by chloride. Our flanges are designed for high-performance applications in vital systems like pollution control units, offshore installations, and chemical processing facilities. Our Hastelloy C76 flanges are trusted for their exceptional mechanical stability, precision, and durability under harsh service conditions. They are available in a variety of types and pressure ratings and meet international standards.
Nickel (above 55%) and molybdenum (14–17%) make up the majority of Hastelloy C76 Flanges, with trace amounts of iron, cobalt, and carbon. This alloy exhibits remarkable resistance to pitting, stress corrosion cracking, and hydrochloric, sulphuric, and nitric acids. Mechanically, Hastelloy C76 has a yield strength of roughly 275–345 MPa and a tensile strength of roughly 690–760 MPa. It also provides good ductility and high elongation. For an extended service life, these characteristics guarantee that the flanges function well in corrosive, high-pressure, and high-temperature environments.
| C276 Forged Fittings Specifications | ASTM B564/ ASME SB564 |
|---|---|
| C276 Alloy Forged Fittings size | 1/8” NB to 4” NB (Socketweld & Screwed-Threaded) |
| Hastelloy C276 Forged Fittings Dimensions | ASME 16.11, MSS SP-79, 83, 95, 97, BS 3799 |
| Hastelloy C276 Forged Fittings Types | Socketweld Fittings, Screwed-Threaded Fittings |
| ASTM B564 C276 Hastelloy Forged Fittings Pressure Rating | Threaded End-2000lb/ 3000lb/ 6000lbs Socket-weld End-3000/ 6000/ 9000lbs |
| Hastelloy C276 Forged Fittings Thread | NPT, BSPT, BSPP |
| C276 Hastelloy Forged Fittings Test Certificates | EN 10204/3.1B Raw Materials Certificate 100% Radiography Test Report Third Party Inspection Report, etc |
| Nickel Alloy C276 Forged Fittings Origin & Mills | Jakarta |
| Specialized manufacturer of | 90º Elbows, 45º Elbows, Tees, Cross, Couplings, Reducers, Inserts, Caps, Nipples, and Unions, Forged Pipe Fittings, Socket Weld & Threaded, Equal Tees & Reducing Tees, 90° & 45° Elbows, Plugs |
| Material Test Certificates (MTC) as per EN 10204 3.1 and EN 10204 3.2, Test Certificates certifying NACE MR0103, NACE MR0175 | |

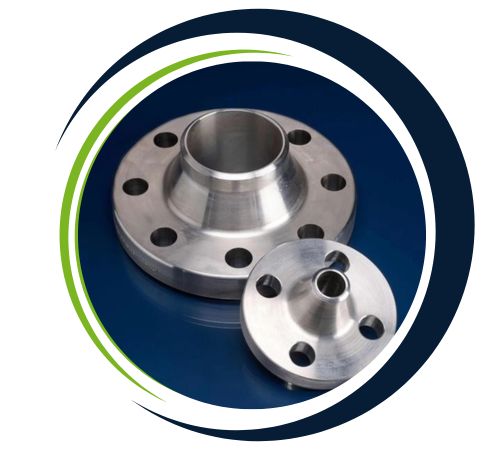

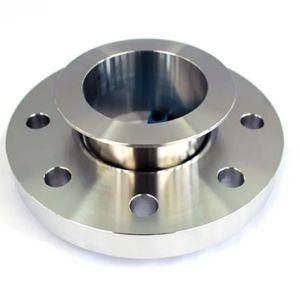

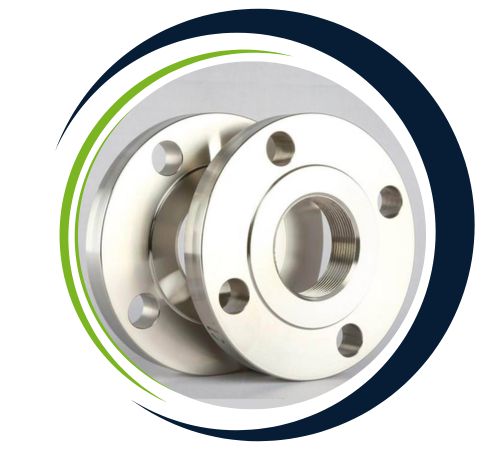

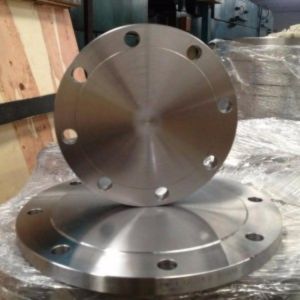

Ismail Flanges, a leading supplier in Indonesia, Jakarta, offers an extensive selection of Hastelloy C276 Flanges, including weld neck flanges, slip-on flanges, blind flanges, threaded flanges, and lap joint flanges. Designed for diverse industrial applications, our high-quality inventory and commitment to exceptional service make us a trusted choice for flange products in the region.
Hastelloy C76 Flanges are utilised in harsh and highly corrosive chemical processing settings. They are perfect for scrubbers, condensers, heat exchangers, reactors, and pressure vessels in the pulp and paper, wastewater treatment, petrochemical, and pharmaceutical industries. These flanges are used in marine and offshore engineering because of their resilience to chloride-rich environments and their consistent performance in systems that handle strong acids, particularly sulphuric and hydrochloric acid. They are appropriate for applications involving thermal cycling and fluctuating pressure because of their exceptional resistance to heat and chemicals. For systems that require a lot of maintenance and safety, Hastelloy C76 flanges are preferred.
| ASTM B564 / B564M | Forged Fittings and valves and parts for high temperature service. Standard Specification for Wrought Austenitic Hastelloy Forged Fittings |
| BS21 | Threading. |
| BS3799 | Specification for Steel pipe fittings, screwed and Socket-welding for the petroleum industry |
| ANSI B16.11 | Forged steel fittings socket-welding and threaded. Socket Welding and Threaded Forged Fittings |
| ANSI/ASME B1.20.1 | Pipe threads, general purpose (inch). |
| ISO 4144 | Hastelloy fittings threaded to ISO 7-1. |
| MSS SP-95 | Swage(d) Nipples and Bull Plugs |
Yes, we offer custom sizes for Hastelloy C276 Flanges to meet specific project needs. Our team at Ismail Flanges is committed to providing tailored solutions for all your requirements. For more details, contact us at sales@ismailflanges.id.
| STANDARD | UNS | WERKSTOFF NR. | AFNOR | EN | JIS | OR | GOST |
| Hastelloy C276 | N10276 | 2.4819 | – | NiMo16Cr15W | NW 0276 | ЭП760 | ХН65МВУ |
| Grade | C | Mo | Mn | Si | Fe | P | S | Co | Cr | W | V | Ni |
| C276 | 0.01 | 15.0 – 17.0 | 1.0 | 0.08 | 4.00 – 7.00 | 0.04 | 0.03 | 2.5 | 14.5 – 16.5 | 3 – 4.5 | 0.35 | Bal |
| Grade | Density | Melting Point | Yield Strength (0.2%Offset) | Tensile Strength | Elongation |
| C276 | 8.89 g/cm3 | 1370 °C (2500 °F) | Psi – 52,000 , MPa – 355 | Psi – 1,15,000 , MPa – 790 | 40 % |
We are renowned for delivering products with precise, accurate dimensions. Each product undergoes thorough testing, both destructive and non-destructive, to ensure quality before being shipped to our customers.
Our team is ready to assist you. Contact us for any queries or personalized solutions.
