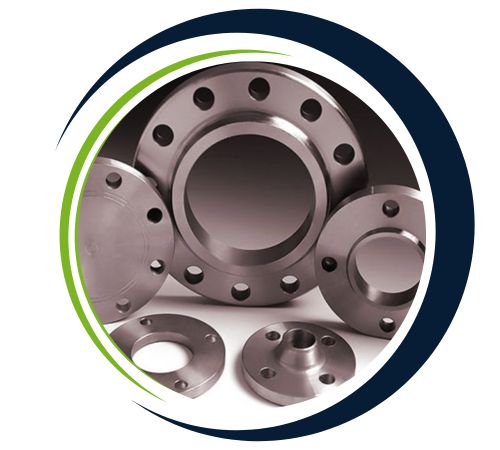

A well-known producer and supplier of Hastelloy C22 Flanges, Ismail Flanges is situated in Jakarta, Indonesia, and provides corrosion-resistant solutions for harsh and demanding environments. A versatile nickel-chromium-molybdenum alloy, Hastelloy C22 is renowned for its remarkable resistance to reducing and oxidising agents. Our flanges are made to last as long as possible in sectors like pollution control, marine, and chemical processing. We offer a wide variety of flange types that meet international standards, including blind, slip-on, and weld neck flanges. Ismail Flanges guarantees dependable products for crucial piping and pressure systems with a dedication to quality and accuracy.
About 56% nickel, 20–22.5% chromium, 12.5–14.5% molybdenum, and 2–6% iron make up Hastelloy C22 Flanges. Tungsten, cobalt, and trace elements like carbon and silicon are also present. Superior resistance to pitting, crevice corrosion, and stress corrosion cracking is offered by this sophisticated alloy formulation. In terms of mechanical properties, Hastelloy C22 provides outstanding elongation and toughness along with a tensile strength of roughly 690–785 MPa and a yield strength of 275–355 MPa. These characteristics make the flanges perfect for use in extremely corrosive and high-pressure environments because they enable them to retain structural integrity under harsh thermal and chemical conditions.
| C22 Forged Fittings Specifications | ASTM B564/ ASME SB564 |
|---|---|
| Alloy C22 Forged Fittings size | 1/8” NB to 4” NB (Socketweld & Screwed-Threaded) |
| Hastelloy C22 Forged Fittings Dimensions | ASME 16.11, MSS SP-79, 83, 95, 97, BS 3799 |
| Hastelloy C22 Forged Fittings Types | Socketweld Fittings, Screwed-Threaded Fittings |
| ASTM B564 C22 Hastelloy Forged Fittings Pressure Rating | Threaded End-2000lb/ 3000lb/ 6000lbs Socket-weld End-3000/ 6000/ 9000lbs |
| Hastelloy C22 Forged Fittings Thread | NPT, BSPT, BSPP |
| C22 Hastelloy Forged Fittings Test Certificates | EN 10204/3.1B Raw Materials Certificate 100% Radiography Test Report Third Party Inspection Report, etc |
| Nickel Alloy C22 Forged Fittings Origin & Mills | Jakarta |
| Specialized manufacturer of | 90º Elbows, 45º Elbows, Tees, Cross, Couplings, Reducers, Inserts, Caps, Nipples, and Unions, Forged Pipe Fittings, Socket Weld & Threaded, Equal Tees & Reducing Tees, 90° & 45° Elbows, Plugs |
| Material Test Certificates (MTC) as per EN 10204 3.1 and EN 10204 3.2, Test Certificates certifying NACE MR0103, NACE MR0175 | |

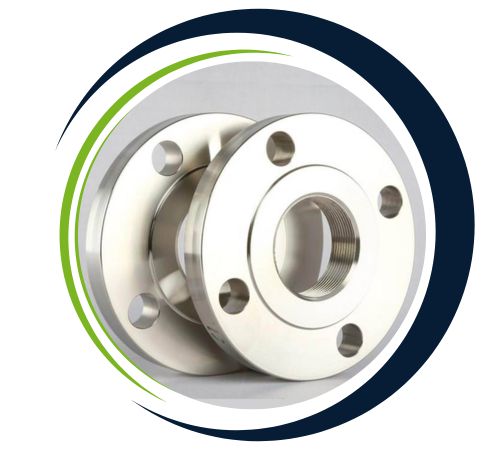

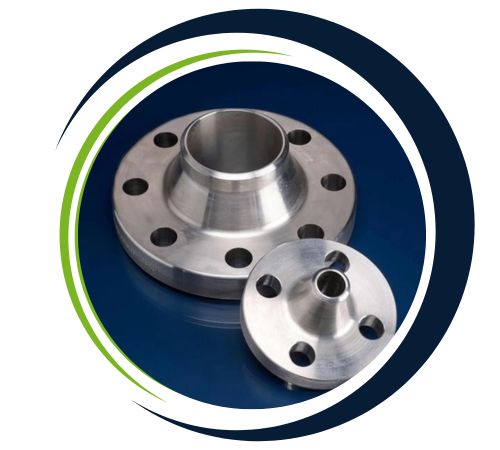

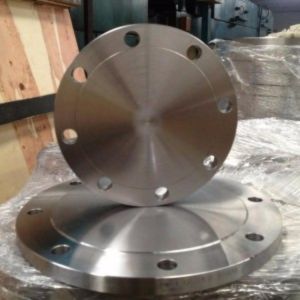

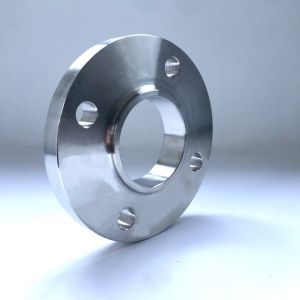

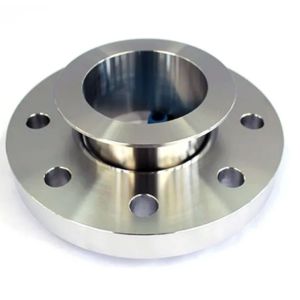

Ismail Flanges, a leading supplier in Indonesia, Jakarta, offers an extensive selection of Hastelloy C22 Flanges, including weld neck flanges, slip-on flanges, blind flanges, threaded flanges, and lap joint flanges. Designed for diverse industrial applications, our high-quality inventory and commitment to exceptional service make us a trusted choice for flange products in the region.
Industries that need to withstand harsh conditions and highly corrosive chemicals frequently use Hastelloy C22 flanges. Reactors, heat exchangers, evaporators, scrubbers, and pressure vessels are frequently used in pulp and paper, chemical processing, and pharmaceutical manufacturing. When dealing with strong acids such as sulphuric, hydrochloric, nitric, and ferric acids, they are extremely helpful. In marine and offshore engineering, where resistance to seawater and extreme weather conditions is crucial, C22 flanges are also used. In systems where failure is not an option, their dependability, toughness, and resistance to localised corrosion guarantee long-term performance.
| ASTM B564 / B564M | Forged Fittings and valves and parts for high temperature service. Standard Specification for Wrought Austenitic Hastelloy Forged Fittings |
| BS21 | Threading. |
| BS3799 | Specification for Steel pipe fittings, screwed and Socket-welding for the petroleum industry |
| ANSI B16.11 | Forged steel fittings socket-welding and threaded. Socket Welding and Threaded Forged Fittings |
| ANSI/ASME B1.20.1 | Pipe threads, general purpose (inch). |
| ISO 4144 | Hastelloy fittings threaded to ISO 7-1. |
| MSS SP-95 | Swage(d) Nipples and Bull Plugs |
Yes, we offer custom sizes for Hastelloy C22 Flanges to meet specific project needs. Our team at Ismail Flanges is committed to providing tailored solutions for all your requirements. For more details, contact us at sales@ismailflanges.id.
| STANDARD | UNS | WERKSTOFF NR. | AFNOR | EN | JIS | BS | GOST |
| Hastelloy C22 | N06022 | 2.4602 | – | NiCr21Mo14W | NW 6022 | – | – |
| Grade | C | Mo | Mn | Si | Fe | P | S | Co | Cr | W | V | Ni |
| C22 | 0.010 | 12.5 – 14.5 | 0.50 | 0.08 | 2.00 – 6.00 | 0.02 | 0.02 | 2.5 | 20 – 22.5 | 2.5 – 3.5 | 0.35 | Bal |
| Grade | Density | Melting Point | Yield Strength (0.2%Offset) | Tensile Strength | Elongation |
| C22 | 8.69 g/cm3 | 1399 °C (2550 °F) | Psi – 45000 , MPa – 310 | Psi – 1,00,000 , MPa – 690 | 45 % |
We are renowned for delivering products with precise, accurate dimensions. Each product undergoes thorough testing, both destructive and non-destructive, to ensure quality before being shipped to our customers.
Our team is ready to assist you. Contact us for any queries or personalized solutions.
