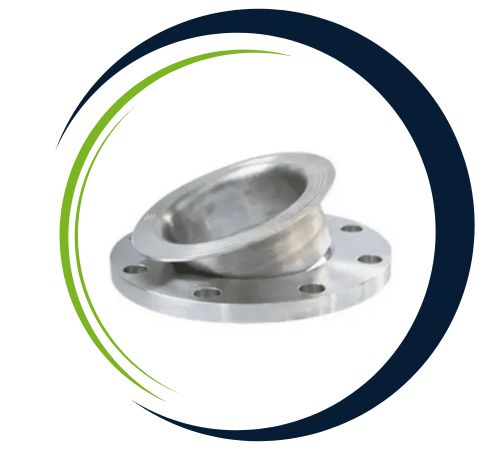

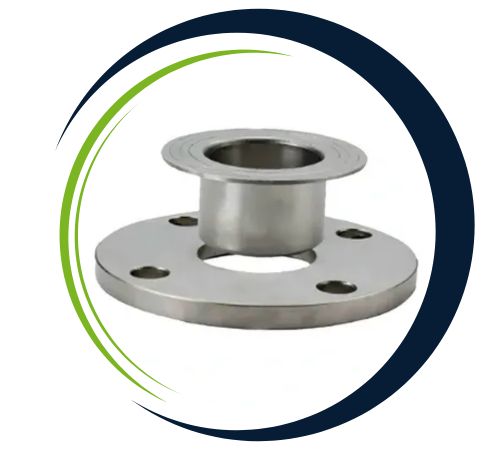

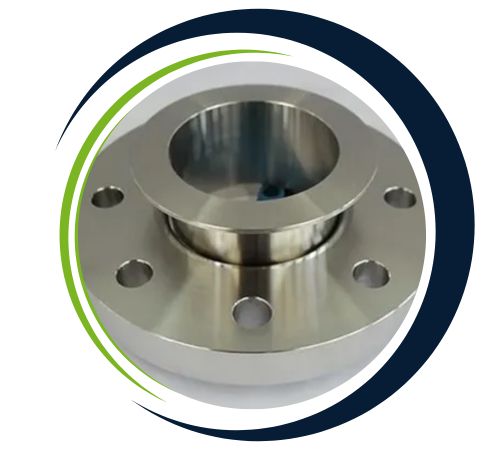

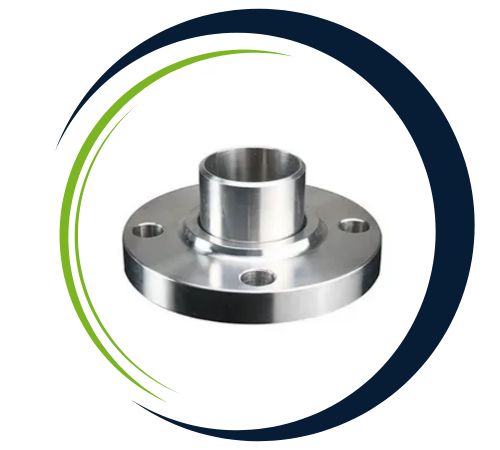

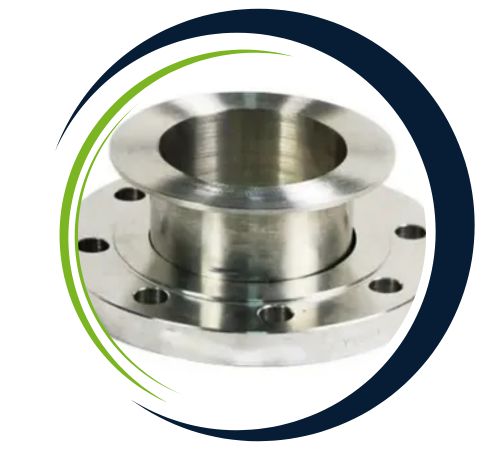

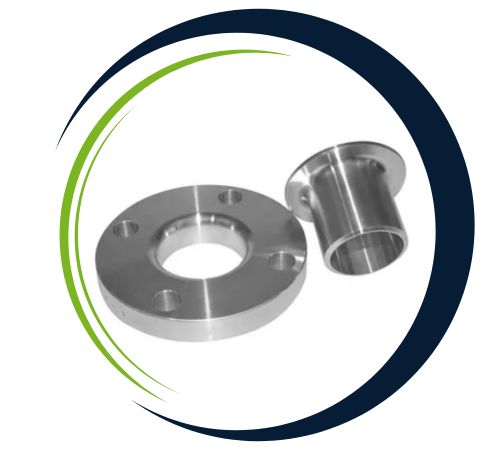

Ismail Flanges is a top producer and supplier of Hastelloy Lap Joint Flanges in Jakarta, Indonesia, providing high-quality solutions for companies operating in heavily corrosive environments. Utilized with stub ends, these flanges are perfect for applications that need to be often disassembled for inspection, cleaning, or maintenance purposes. Produced from corrosion-resistant Hastelloy alloys like C22, C276, and C2000, these flanges function exceedingly well in harsh chemical and high-temperature conditions. Ismail Flanges guarantees that all products are of international quality, supplying crucial industries like chemical processing, pharmaceuticals, marine, and pollution control with reliable and durable parts.
Hastelloy Lap Joint Flanges consist of nickel (up to 60%), molybdenum (up to 17%), chromium (up to 23%), iron, and other elements based on the grade of the alloy. This alloy possesses very good resistance to oxidizing and reducing agents, plus good protection against pitting, crevice corrosion, and stress corrosion cracking. Mechanically, Hastelloy C276, for instance, offers about 690 MPa tensile strength and a yield strength of about 283 MPa. These flanges are paired with a stub end and are best suited for non-permanent connections that require repeated removal.
| Size Chart | 1/2″ (15 NB) to 48″ (1200NB) DN10~DN5000 |
|---|---|
| Hastelloy Lap Joint Flange Standards | ANSI/ASME B16.5, B16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, GOST Flange, ASME/ANSI B16.5/16.36/16.47A/16.47B, MSS S44, ISO70051, JISB2220, BS1560-3.1, API7S-15, API7S-43, API605, EN1092 |
| Hastelloy Alloy LJRF Flange Pressure Rating ANSI | Class 150 LBS, 300 LBS, 600 LBS, 900 LBS, 1500 LBS, 2500 LBS |
| ASTM B564 Hastelloy Lap Joint Flanges Pressure Calculation in DIN | 6Bar 10Bar 16Bar 25Bar 40Bar / PN6 PN10 PN16 PN25 PN40, PN64 |
| ASME SB 564 Lap Joint Flange | 5K, 10 K, 16 K 20 K, 30 K, 40 K, 63 K |
| ASME SB564 Hastelloy Lap Joint Flange UNI | 6Bar 10Bar 16Bar 25Bar 40Bar |
| B564 Lap Joint Flange EN | 6Bar 10Bar 16Bar 25Bar 40Bar |
| Coating | Oil Black Paint, Anti-rust Paint, Zinc Plated, Yellow Transparent, Cold and Hot Dip Galvanized |
| Test Certificates | EN 10204/3.1B Raw Materials Certificate 100% Radiography Test Report Third Party Inspection Report, etc |
| ASME SB564M Hastelloy Alloy Lap Joint Flange Production technique | Forged, Heat treated and machined |
| B564 Lap Joint Flange Connect Type/ Flange Face Type | Raised Face (RF), Ring Type Joint (RTJ), Flat Face (FF), Large Male-Female (LMF), Lapped Joint Face (LJF), Small Male-Female (SMF), Small Tongue, Large Tongue & Groove, Groove |
| Special design | As per your drawing AS, ANSI, BS, DIN and JIS 15 NB (1/2″) to 200 NB (8″) Equal and Reducing Configurations |
| ASME B564 Lap Joint Flange Test | Direct-reading Spectrograph, Hydrostatic testing machine, X-ray detector, UI trasonic flaw detector, Magnetic particle detector |
| ASTM B564 Hastelloy Alloy Lap Joint Flange Equipment | Press machine, Bending machine, Pushing Machine, electric bevelling machine, Sand-blasting machine etc |
| Hastelloy Alloy Lap Joint Flange Origin | Indian / West Europe / Japan / USA / Korean |
| Manufacturer of Hastelloy Lap Joint Flange | ANSI DIN, GOST, JIS, UNI, BS, AS2129, AWWA, EN, SABS, NFE etc. ASTM B564 Lap Joint Flange: -BS Flange, EN Flange, API 6A Flange, ANSI Flange, ASME Flange, DIN Flange, EN1092-1 Flange, UNI Flange, JIS/ KS Flange, BS4504 Flange, GB Flange, AWWA C207 Flange, GOST Flange, PSI Flange B.S: BS4504 , BS3293, BS1560, BS10 AS 2129: Table D; Table E; Table H ANSI B16.5, ANSI B16.47 Series A & B, MSS SP44, ASA, API-605, AWWA, Custom Drawings ANSI : ANSI B16.5, ANSI B16.47(API605), MSS SP44, ANSI B16.36, ANSI B16.48 ANSI B16.5, ANSI B16.47, MSS SP44, ANSI B16.36, ANSI B16.48 American standard (ANSI) German (DIN) British standard (BS) DIN: DIN 2527, DIN 2566, DIN 2573, DIN 2576, DIN 2641, DIN 2642, DIN 2655, DIN 2656, DIN 2627, DIN 2628, DIN 2629, DIN 2631, DIN 2632, DIN 2633, DIN 2634, DIN 2635, DIN 2636, DIN 2637, DIN 2638 ASTM B564 C276 Hastelloy Flanges The other standard: AWWA C207; EN1092-1, GOST12820, JIS B2220; KS B1503, SABS1123; NFE29203; UNI2276 |
| ASME SB564M Hastelloy Lap Joint Flange Uses & application | Bitumen upgraders. Heavy oil refineries. Nuclear power (mostly seamless). Petrochemicals and acids. |
Ismail Flanges, a leading supplier in Indonesia, Jakarta, offers an extensive selection of Hastelloy Lap Joint Flanges, including weld neck flanges, slip-on flanges, blind flanges, threaded flanges, and lap joint flanges. Designed for diverse industrial applications, our high-quality inventory and commitment to exceptional service make us a trusted choice for flange products in the region.
Hastelloy Lap Joint Flanges are extensively used in aggressive fluid-handling industries like chemical processing, wastewater treatment, pharmaceuticals, marine operations, and food processing. Due to their removable design, they are excellent for systems that need to be frequently inspected or serviced without the need to disassemble piping. They are generally fitted in heat exchangers, reactors, tanks, and process piping where highly corrosive chemicals like sulfuric acid, hydrochloric acid, or chlorine derivatives are used. Their resistance to hostile environments, along with ease of assembly and alignment, renders them a satisfactory selection for high-integrity, corrosion-susceptible systems.
| ASME/ANSI B 16.5 | Lap Joint Flange |
| PRESSURE CLASS | 150, 300, 400, 600, 900, 1500, 2500 |
| PRESSURE CLASS | 75, 150, 300, 400, 600, 900 |
| ASME/ANSI B 16.36 | Lap Joint Flange |
| PRESSURE CLASS | 300, 400, 600, 900, 1500, 2500 |
| BS 4504 SEC 3.1 | Hubbed Lap Joint Flange |
| PRESSURE CLASS | PN 2.5 TO PN 40 |
| BS 4504[PART 1] | Hubbed Lap Joint Hubbed Threaded, |
| PRESSURE CLASS | PN 2.5 TO PN 400 |
| BS 1560 BOSS | Hubbed Lap Joint Hubbed Threaded |
| PRESSURE CLASS | 150, 300, 400, 600, 900, 1500, 2500 |
| BS10 | Lap Joint Flange |
| TABLE | D, E, F, H |
| DIN FLANGES | DIN 2527, 2566, 2573, 2576, 2641,2642, 2655, 2656, 2627, 2628, 2629, 2631, 2632, 2633, 2634, 2635, 2636, 2637,2638, 2673 |
| PRESSURE CLASS | PN 6 TO PN 100 |
| STANDARD | WERKSTOFF NR. | UNS | JIS | GOST | EN | OR |
| Hastelloy C276 | 2.4819 | N10276 | NW 0276 | ХН65МВУ | NiMo16Cr15W | ЭП760 |
| Hastelloy C22 | 2.4602 | N06022 | NW 6022 | – | NiCr21Mo14W | – |
| Hastelloy B2 | 2.4617 | N10665 | – | – | – | – |
Yes, we offer custom sizes for Hastelloy Lap Joint Flanges to meet specific project needs. Our team at Ismail Flanges is committed to providing tailored solutions for all your requirements. For more details, contact us at sales@ismailflanges.id.
We are renowned for delivering products with precise, accurate dimensions. Each product undergoes thorough testing, both destructive and non-destructive, to ensure quality before being shipped to our customers.
Our team is ready to assist you. Contact us for any queries or personalized solutions.
