API - Type 6B Welding Neck Flanges 5,000 PSI Manufacturer and Supplier in Jakarta, Indonesia

Ismail Flanges is a well-respected manufacturer and supplier of API Type 6B Welding Neck Flanges, rated for an impressive 5,000 PSI, and proudly based in Jakarta, Indonesia. These flanges are crafted to meet the stringent API 6A standards, ensuring secure, leak-proof connections in the challenging oil and gas sector. Ismail Flanges provides a comprehensive selection of 6B Welding Neck Flanges in various sizes and material classes, all meticulously machined for a perfect fit and dependable sealing. With cutting-edge forging techniques, precise manufacturing, and strict quality control, the company delivers flanges that are trusted in wellhead equipment, manifolds, and high-pressure piping systems around the globe.

API - Type 6B Welding Neck 5,000 PSI Flanges Supplier in Indonesia, API - Type 6B Welding Neck 5,000 PSI Flanges Exporters in Indonesia, API Type 6B 5000 PSI Welding Neck Flanges Manufacturers in Surabaya, API - Type 6B Welding Neck 5,000 PSI Flanges Price List in Bekasi, API - Type 6B Welding Neck 5,000 PSI Flanges Dealer in Surabaya, API - Type 6B Welding Neck 5,000 PSI Flanges Manufacturer in Jakarta, API - Type 6B Welding Neck 5,000 PSI Flanges Bekasi, API - Type 6B Welding Neck 5,000 PSI Flanges Exporters in Bandung, API - Type 6B Welding Neck 5,000 PSI Flanges Price List, API Type 6B Flange Stockist in Indonesia

API Type 6B 5000 PSI Welding Neck Flange

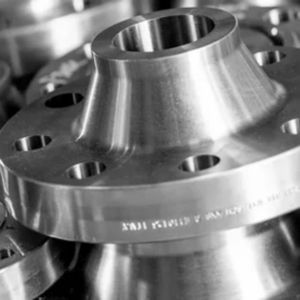

API Type 6B 5000 PSI Pressure Rating Welding Neck Flange

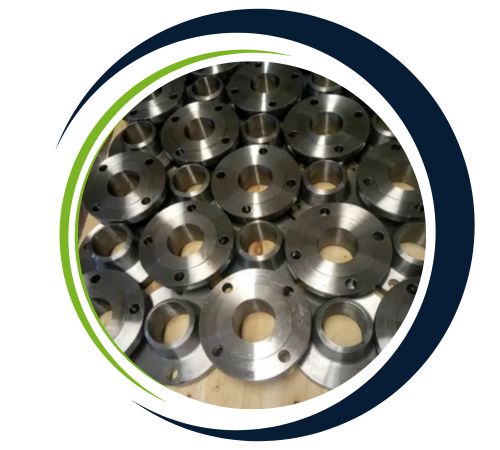

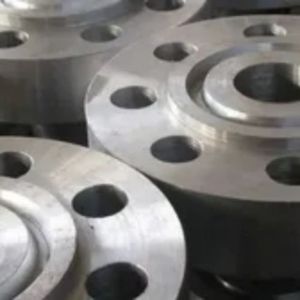

API Type 6B 5,000 PSI Industrial WNRTJ Flanges

API 6B Welding Neck Flanges are generally forged from high-strength alloy steels like ASTM A105 or A694 F52/F60, and they undergo heat treatment to enhance durability and performance. These flanges are designed with controlled amounts of carbon, manganese, and other alloying elements to guarantee strength and toughness. Their mechanical properties include a minimum yield strength of 52,000–60,000 psi and a tensile strength that can reach up to 75,000 psi. Featuring precision-machined raised face or ring-type joint sealing surfaces and a tapered hub for optimal stress distribution, these flanges are rated for 5,000 psi working pressure, ensuring reliable performance in critical service conditions.

API - Type 6B Welding Neck 5,000 PSI Flanges Weight Chart in Bekasi, API - Type 6B Welding Neck 5,000 PSI Flanges Supplier in Indonesia, API - Type 6B Welding Neck 5,000 PSI Flanges Stockists in Surabaya, API Type 6B Flange Dealer in Surabaya, API - Type 6B Welding Neck 5,000 PSI Flanges Price in Bandung, API - Type 6B Welding Neck 5,000 PSI Flanges Weight Chart, API - Type 6B Welding Neck 5,000 PSI Flanges Weight Chart, API Type 6B Flange Exporter in Bandung

Largest API - Type 6B Welding Neck Flanges 5,000 PSI Supplier in Indonesia, Jakarta

Ismail Flanges, a leading supplier in Indonesia, Jakarta, offers an extensive selection of API – Type 6B Welding Neck Flanges 5,000 PSI, including weld neck flanges, slip-on flanges, blind flanges, threaded flanges, and lap joint flanges. Designed for diverse industrial applications, our high-quality inventory and commitment to exceptional service make us a trusted choice for flange products in the region.

Contact us to get a quick quote for your requirement.

We offer These Flanges as per DIN, ISO, JIS or ANSI Standard.

Specification Chart Of API Type 6B Welding Neck Flanges 5,000 PSI

Specification Table Of :	API Type 6B Flange
ADNOC Approved Manufacturer Of Standards	ASME B16.36, DIN, AWWA C207, B16.47 Series A & B, BS1560-3.1, EN-1092, ASME B16.48, API605, BS4504, EN1092, UNI, ISO, MSS S44, IS 2062, ISO70051, API, API7S-43, ANSI/ASME B16.5, API7S-15
Temperature Ratings	150 LB To 2500 LB
Size Chart	(1/2″) To (48″)
Manufacturing Process	Heat Treated/ Machined / Forged
Face Type Details	Raised Face, Large Tongue & Large Male-Female And Small Male-Female, Groove And Small Tongue Groove, RTJ, Flat Face, Lap-Joint Face.
Forging Materials	Stainless Steel, Alloy Steel, Carbon Steel, Duplex Steel & Super Duplex Steel, Cast Iron, Inconel, Mild Steel, Hastelloy, Copper Nickel, Wrought Iron.
Thickness	NPS ≤ 18
Flanges High Temperature	Above 200° Celsius (400°F) For 150 Class Or Above 400° Celsius (750°F)
JIS Standards	5K, 10K, 40K, 16K 20K 30K, 63K
Our Top Selling Products	Lap Joint, Socket-Weld, Blind, Threaded, Weld Neck, Slip-On
Buy Flanges For Pipe Connection	Power Plants Industry Food Processing And Manufacturing Waterworks Systems Nuclear Power Application Municipal Pipe Systems Fossil Fuel Power Plants Oil And Gas Industry
Type Of Making Format	Plate /Forged/ Threaded
Bore Diameter	NPS ≤ 10

API Type 6B 5000 PSI Welding Neck Flange Dimensions Chart

Normal Pipe Sizes	Daimeter Of Flanges		Daimeter Of RTJ		Hight Of Flanges			Flanges Bolting			Flanges Hub			RING
Normal Pipe Sizes	Outside Daimeter	C	K	P	T	Q	LN	BC	N	H	X	HL	JL	R / RX
2-1/16″	215	3	124	95.25	46.1	38.1	109.5	165.10	8	26	104.8	60.3	43.7	24
2-9/16″	245	3	137	107.95	49.3	41.3	112.7	190.50	8	29	123.8	73.0	54.9	27
3-1/8″	265	3	168	136.53	55.6	47.7	125.4	203.20	8	32	133.3	88.9	67.5	35
4-1/16″	310	3	194	161.93	62.0	54.0	131.8	241.30	8	35	161.9	114.3	88.1	39
5-1/8″	375	3	229	193.68	81.0	73.1	163.5	292.10	8	42	196.8	141.3	110.3	44
7-1/16″	395	6	248	211.15	92.1	82.6	181.0	317.50	12	39	228.6	168.3	132.6	46
9″	485	6	318	269.88	103.2	92.1	223.8	393.70	12	45	292.1	219.1	173.8	50
11″	585	6	371	323.85	119.1	108.0	265.1	482.60	12	51	368.3	273.1	216.7	54

The API Type 6B Welding Neck Flange (5,000 PSI) is generally applied in high-pressure applications in various industries like oil & gas, petrochemicals and power generation. The flanges are critical to providing secure, leak-free connections within mission-critical systems that include piping and valves. They are accountable for the integration of pumps, pressure vessels, and other high-performing equipment. Typical uses include offshore drilling platforms, pipeline facilities, refineries, heat exchangers and water treatment facilities. Built to endure severe stress and hostile environments. These flanges offer a safe, rugged joint that improves system reliability and safety in the most severe operating conditions.

API Type 6B 5000 PSI Welding Neck Flange Weight Chart

NPS In Inch.	DN In MM	Flange Outside Daimeter A In MM	Flange Thickness D In MM	API 6a SORF Flange Weight In KG	API 6a WN Flange Weight In KG	API 6a BLRF Flange Weight In KG
1/ 2	15	88.9	11.2	0.4	0.5	0.4
3/ 4	20	98.6	12.7	0.6	0.7	0.6
1	25	108	14.2	0.8	1	0.9
1 1/ 4	32	117.3	15.7	1	1.3	1.2
1 1/ 2	40	127	17.5	1.3	1.7	1.5
2	50	152.4	19.1	2.1	2.6	2.4
2 1/ 2	65	177.8	22.4	3.3	4.1	3.9
3	80	190.5	23.9	3.9	4.9	4.9
3 1/ 2	90	215.9	23.9	4.8	6.1	6.2
4	100	228.6	23.9	5.3	6.8	7.0
5	125	254	23.9	6.1	8.6	8.6
6	150	279.4	25.4	7.5	10.6	11.3
8	200	342.9	28.4	12.1	17.6	19.6
10	250	406.4	30.2	16.5	24	28.6
12	300	482.6	31.8	26.2	36.5	43.2
14	350	533.4	35.1	34.6	48.4	58.1
16	400	596.9	36.6	44.8	60.6	76.1
18	450	635	39.6	48.9	68.3	93.7
20	500	698.5	42.9	61.9	84.5	122.0
24	600	812.8	47.8	86.9	115	185.0

API - Type 6B Welding Neck 5,000 PSI Flanges Supplier in Surabaya, API - Type 6B Welding Neck 5,000 PSI Flanges Bandung, API - Type 6B Welding Neck 5,000 PSI Flanges Suppliers in Surabaya, API Type 6B Flange Price in Jakarta, API - Type 6B Welding Neck 5,000 PSI Flanges Price List in Bekasi, API - Type 6B Welding Neck 5,000 PSI Flanges Stockist in Bekasi, API Type 6B Flange Price List in Bandung

Types of API - Type 6B Welding Neck Flanges 5,000 PSI

Are Custom Sizes Available for API - Type 6B Welding Neck Flanges 5,000 PSI

Yes, we offer custom sizes for API – Type 6B Welding Neck Flanges 5,000 PSI to meet specific project needs. Our team at Ismail Flanges is committed to providing tailored solutions for all your requirements. For more details, contact us at sales@ismailflanges.id.

Material Testing

We are renowned for delivering products with precise, accurate dimensions. Each product undergoes thorough testing, both destructive and non-destructive, to ensure quality before being shipped to our customers.
