EN 1092-1 Type 11 Flanges Manufacturer and Supplier in Jakarta, Indonesia

Ismail Flanges, a leading manufacturer and supplier located in Jakarta, Indonesia, proudly offers top-notch EN 1092-1 Type 11 Flanges that adhere to international standards. With a focus on precision-engineered flanges, the company provides products that excel in performance, durability, and reliability across a range of industries. These EN 1092-1 Type 11 Flanges are weld neck flanges, commonly utilized in critical piping systems that demand robust, leak-proof connections. Catering to sectors like oil & gas, petrochemical, water treatment, and power generation, Ismail Flanges guarantees timely delivery, competitive pricing, and exceptional support for customers both in Indonesia and around the globe.

EN 1092-1 Type 11 Loose Flange Jakarta, EN 1092-1 Type 11 Plate Flange United kingdom, EN 1092-1 Type 11 Forged Flanges Indonesia, EN 1092-1 Type 11 Flanges Surabaya, Raised Face EN 1092-1 Type 11 Flanges Indonesia, EN 1092-1 Type 11 PN10 Flange Manufacturer in Surabaya, EN 1092-1 Type 11 Flanges Bandung.

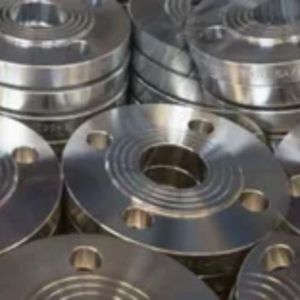

EN 1092-1 Type 11 Flanges

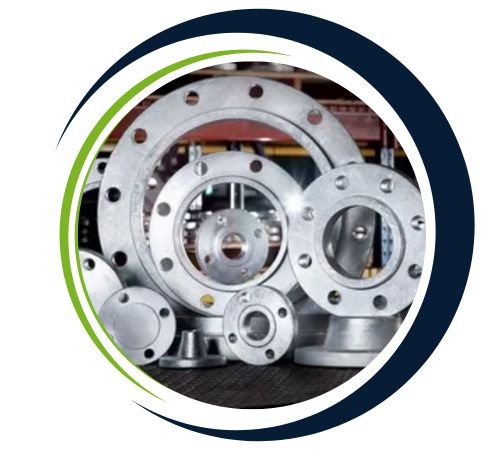

EN 1092-1 Type 11 Loose Flange

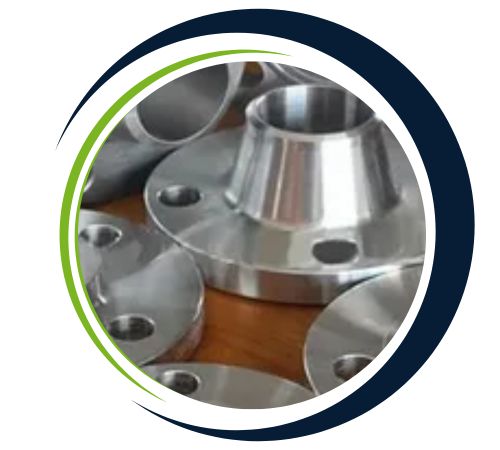

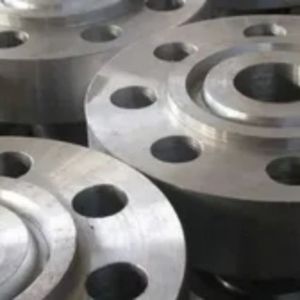

EN 1092-1 Type 11 Plate Flange

The EN 1092-1 Type 11 Flanges from Ismail Flanges are crafted from high-quality materials, including carbon steel, stainless steel (304/316), and alloy steel. This careful selection of materials ensures excellent corrosion resistance and mechanical strength. The mechanical properties feature tensile strength ranging from 485 to 700 MPa, a yield strength of at least 250 MPa, and elongation of 20 to 25%, depending on the material grade. Built for high-pressure and high-temperature applications, these flanges are meticulously machined to achieve tight tolerances, optimal sealing, and outstanding performance in demanding industrial settings.

EN 1092-1 Type 11 Flanges Stockist in Jakarta, EN 1092-1 Type 11 Flanges Manufacturer in United kingdom, EN 1092-1 Type 11 Flanges Supplier in Indonesia, EN 1092-1 Type 11 Flanges Supplier in Surabaya, EN 1092-1 Type 11 Flanges Manufacturer in Indonesia, EN 1092-1 Type 11 Flanges Stockist in Surabaya, EN 1092-1 Type 11 Pipe Flanges Bandung.

Largest EN 1092-1 Type 11 Flanges in Indonesia, Jakarta

Ismail Flanges, a leading supplier in Indonesia, Jakarta, offers an extensive selection of EN 1092-1 Type 11 Flanges, including weld neck flanges, slip-on flanges, blind flanges, threaded flanges, and lap joint flanges. Designed for diverse industrial applications, our high-quality inventory and commitment to exceptional service make us a trusted choice for flange products in the region.

Contact us to get a quick quote for your requirement.

We offer These Flanges as per DIN, ISO, JIS or ANSI Standard.

EN 1092-1 Type 11 Flanges Specification

Size	(1/2″) To (48″)
Pressure	PN6, PN10, PN16, PN25, PN40, PN64, PN100, PN160
Size Of Bore Diameter Flange	NPS ≤ 10
Standard Dimensions	EN-1092, ASME B16.48, API605, BS4504, EN1092, UNI, ISO, API7S-43, ANSI/ASME B16.5, API7S-15, MSS S44, IS 2062, ASME B16.36, DIN, AWWA C207, B16.47 Series A & B, BS1560-3.1, ISO70051, API.
Minimum Pressure	150# To 2500#
Flange Face Type Manufacturer	Raised Face, Groove And Small Tongue Groove, RTJ, Flat Face, Large Tongue & Large Male-Female And Small Male-Female, Lap-Joint Face.
Top Six Type Of Flange	Threaded Flange, Lap Joint Flange, Socket-Weld Flange, Blind Flange, Slip-On Flange, Weld Neck Flange
Standard Materials	Duplex Steel & Super Duplex Steel, Copper Nickel, Inconel, Mild Steel, Stainless Steel, Hastelloy, Alloy Steel, Carbon Steel.
Thickness Length	NPS ≤ 18
Manufacturing Process	Forged/ Machined/ Heat Treated
Other Type Of Flange	Forged/ Plate/ Threaded

EN 1092-1 Type 11 Flange Dimensions

Rated Diameter	Flange					Neck				Raised face		Screws			Weight (7,85 Kg/dm3)
Rated Diameter	d1	k	D	b	h1	d3	s	r	h2	d4	f	d2	Thread	Bolt holes	Kg
15	21,3	65	95	16	38	32	2,00	4	6	45	2	14	M12	4	0,768
20	26,9	75	105	18	40	40	2,30	4	6	58	2	14	M12	4	1,090
25	33,7	85	115	18	40	46	2,60	4	6	68	2	14	M12	4	1,300
32	42,4	100	140	18	42	56	2,60	6	6	78	2	18	M16	4	1,910
40	48,3	110	150	18	45	64	2,60	6	7	88	3	18	M16	4	2,150
50	60,3	125	165	20	48	75	2,90	6	8	102	3	18	M16	4	2,850
65	76,1	145	185	22	52	90	2,90	6	10	122	3	18	M16	8	3,680
80	88,9	160	200	24	58	105	3,20	8	12	138	3	18	M16	8	4,780
100	114,3	190	235	24	65	134	3,60	8	12	162	3	22	M20	8	6,460
125	139,7	220	270	26	68	162	4,00	8	12	188	3	26	M24	8	8,860
150	168,3	250	300	28	75	192	4,50	10	12	218	3	26	M24	8	11,700
200	219,1	320	375	34	88	244	6,30	10	16	285	3	30	M27	12	21,000
250	273,0	385	450	38	105	306	7,10	12	18	345	3	33	M30	12	34,200
300	323,9	450	515	42	115	362	8,00	12	18	410	4	33	M30	16	47,600
350	355,6	510	580	46	125	408	8,80	12	20	465	4	36	M33	16	69,300
400	406,4	585	660	50	135	462	11,00	12	20	535	4	39	M36	16	98,000
450	457,0	610	685	57	135	500	12,50	12	20	560	4	39	M36	20	105,000

EN 1092-1 TYPE 11 PN25 WNRF FLANGE DIMENSIONS

Rated Diameter	Flange					Neck				Raised face		Screws			Weight (7,85 Kg/dm3)
Rated Diameter	d1	k	D	b	h1	d3	s	r	h2	d4	f	d2	Thread	Bolt holes	Kg
200	219,1	310	360	30	80	244	6,3	10	16	278	3	26	M24	12	17,100
250	273	370	425	32	88	298	7,1	12	18	335	3	30	M27	12	24,300
300	323,9	430	485	34	92	352	8,0	12	18	395	4	30	M27	16	31,800
350	355,6	490	555	38	100	398	8,0	12	20	450	4	33	M30	16	48,800
400	406,4	550	620	40	110	452	8,8	12	20	505	4	36	M33	16	63,300
450	457	600	670	46	110	500	8,8	12	20	550	4	36	M33	20	76,000
500	508	660	730	48	125	558	10,0	12	20	615	4	36	M33	20	97,000
600	610	770	845	48	125	660	11,0	12	20	720	5	39	M36	20	121,000
700	711	875	960	50	129	760	14,2	12	20	820	5	42	M39	24	155,000

EN 1092-1 Type 11 Flanges are mainly utilized in industries that require secure, permanent welded connections for high-pressure pipelines. Common applications include the transportation of oil and gas, operations in petrochemical plants, water distribution systems, power generation facilities, and marine engineering projects. These weld neck flanges are perfect for critical services where thermal expansion, pressure changes, and mechanical stresses are common. The tapered hub design effectively reduces stress concentration at the flange’s base. Ismail Flanges provides these flanges in a variety of sizes and pressure ratings (PN6 to PN40) to accommodate different project needs.

EN 1092-1 Type 11 Loose Flange Jakarta, EN 1092-1 Type 11 Plate Flange United kingdom, EN 1092-1 Type 11 Forged Flanges Indonesia, EN 1092-1 Type 11 Flanges Surabaya, Raised Face EN 1092-1 Type 11 Flanges Indonesia, EN 1092-1 Type 11 PN10 Flange Manufacturer in Surabaya, EN 1092-1 Type 11 Flanges Bandung.

Types of EN 1092-1 Type 11 Flanges

Are Custom Sizes Available for EN 1092-1 Type 11 Flanges?

Yes, we offer custom sizes for EN 1092-1 Type 11 Flanges to meet specific project needs. Our team at Ismail Flanges is committed to providing tailored solutions for all your requirements. For more details, contact us at sales@ismailflanges.id.

Material Testing

We are renowned for delivering products with precise, accurate dimensions. Each product undergoes thorough testing, both destructive and non-destructive, to ensure quality before being shipped to our customers.
