Ismail Flanges, based in Jakarta, Indonesia, stands out as a trusted manufacturer and supplier of GOST 12820-80 flanges. They pride themselves on delivering top-notch flanges crafted in line with the Soviet and Russian standard GOST 12820-80. These flat flanges are primarily used for welded pipe connections in low- to medium-pressure pipelines, specifically those ranging from PN 0.6 MPa to PN 2.5 MPa. With a flat face design that works seamlessly with gaskets, they find applications in various industries, including water supply, oil and gas, heating systems, and chemical processing. Ismail Flanges guarantees precision in dimensions, resistance to corrosion, and compatibility with other pipeline components that adhere to CIS standards.
GOST 12820-80 flanges are typically crafted from carbon steel grades like St3sp, 20, or 09G2S, and they also come in stainless steel options such as 12X18H10T for environments prone to corrosion. These materials generally provide tensile strengths ranging from 400 to 600 MPa and yield strengths between 235 and 350 MPa, making them ideal for moderate-pressure applications. The flanges feature a flat face with either smooth or serrated sealing surfaces and are designed to work with gaskets for a secure seal. This structure facilitates straightforward installation and maintenance in systems that require dependable, low-to-medium pressure flange connections.
| Standard | GOST / ГОСТ 12820-80 |
| Size | 1/2″ to 48″ |
| UNI | 6Bar 16Bar 10Bar 25Bar 40Bar |
| Class | 300 LBS, 150 LBS, 900 LBS, 600 LBS, 1500 LBS, 2500 LBS |
| EN | 6Bar 25Bar 10Bar 40Bar 16Bar |
| Flanges Face Type Provided By Manufacturer | RF (Raised Face), RTJ (Ring Type Joint) |
| BS | BS4504 , BS4504, BS1560, BS10 |
| Value Added Services | CNC Machining, Customised Flanges |
| Outer diameters | 1/2” to 24” |
| Making Methods Provided By Manufacturer | Casting And Forging Rolling And Cutting |
| JIS | 5K, 16 K 10 K, 20 K, 40 K, 30 K, 63 K |
| Flanges Test | Hydrostatic testing machine/ UI trasonic flaw detector/ X-ray detector/ Direct-reading Spectrograph/ Magnetic particle detector |
| Coating/Surface Treatment By Manufacturer | Antirust Paint, Oil Black Paint, Yellow Transparent, Zinc Plated, Cold and Hot Dip Galvanized |
| Flanges Equipment | Pushing Machine/ electric bevelling machine/ Press machine/ Bending machine/ Sand-blasting machine etc |
| Standards Provided By Manufacturer | BS4504, BS 10, API7S-15, JISB2220, BS1560-3.1, ANSI/ASME B16.5/16.36/16.47A/16.47B, EN1092, DIN, API7S-43, API605, B16.48, ISO70051, MSS S44 |

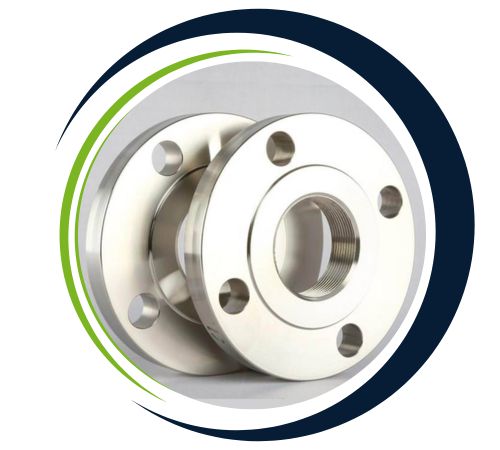

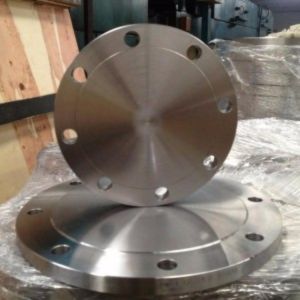

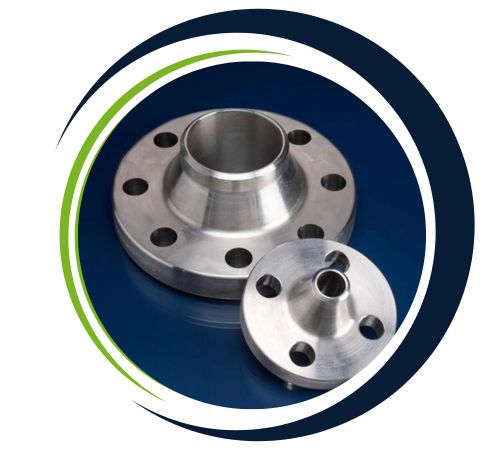

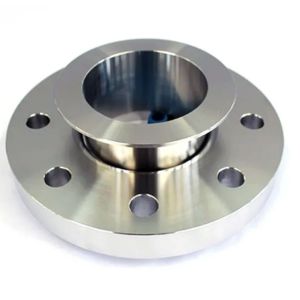

Ismail Flanges a leading supplier in Indonesia, Jakarta, offers an extensive selection of GOST 12820-80 Flanges, including weld neck flanges, slip-on flanges, blind flanges, threaded flanges, and lap joint flanges. Designed for diverse industrial applications, our high-quality inventory and commitment to exceptional service make us a trusted choice for flange products in the region.
GOST 12820-80 flanges are extensively utilized in pipeline systems for transporting water, steam, oil, gas, and other non-aggressive fluids under moderate pressure. You’ll often find them in district heating networks, municipal water systems, chemical processing facilities, and industrial setups that follow GOST or CIS standards. Their straightforward flat-face design not only simplifies installation but also makes them perfect for routine maintenance. Additionally, these flanges are employed in pressure vessels and storage tanks as flange ends. GOST 12820-80 flanges offer a cost-effective and standardized solution for low-to-medium pressure piping, where reliability and functionality are paramount.
| Pressure PN = 0.6 MPa (6 kgf/s m²) | |||||||
| Designation | D, mm | D1, mm | dv, mm | b, mm | d, mm | answer, pcs. | Mass, kg. |
| Flat flange GOST 12820-80 (01) 1-15-6 st.3 (20) | 80 | 55 | 19 | 10 | 11 | 4 | 0,33 |
| Flat flange GOST 12820-80 (01) 1-20-6 st.3 (20) | 90 | 65 | 26 | 12 | 0,53 | ||
| Flat flange GOST 12820-80 (01) 1-25-6 st.3 (20) | 100 | 75 | 33 | 12 | 0,64 | ||
| Flat flange GOST 12820-80 (01) 1-32-6 st.3 (20) | 120 | 90 | 39 | 13 | 14 | 1,01 | |
| Flat flange GOST 12820-80 (01) 1-40-6 st.3 (20) | 130 | 100 | 46 | 13 | 1,21 | ||
| Flat flange GOST 12820-80 (01) 1-50-6 st.3 (20) | 140 | 110 | 59 | 13 | 1,33 | ||
| Flat flange GOST 12820-80 (01) 1-65-6 st.3 (20) | 160 | 130 | 78 | 13 | 1,63 | ||
| Flat flange GOST 12820-80 (01) 1-80-6 st.3 (20) | 185 | 150 | 91 | 15 | 18 | 2,44 | |
| Flat flange GOST 12820-80 (01) 1-100-6 st.3 (20) | 205 | 170 | 110 | 15 | 2,85 | ||
| Flat flange GOST 12820-80 (01) 1-125-6 st.3 (20) | 235 | 200 | 135 | 17 | 8 | 3,88 | |
| Flat flange GOST 12820-80 (01) 1-150-6 st.3 (20) | 260 | 225 | 161 | 17 | 4,39 | ||
| Flat flange GOST 12820-80 (01) 1-200-6 st.3 (20) | 315 | 280 | 222 | 19 | 5,89 | ||
| Flat flange GOST 12820-80 (01) 1-250-6 st.3 (20) | 370 | 335 | 273 | 20 | 12 | 7,67 | |
| Flat flange GOST 12820-80 (01) 1-300-6 st.3 (20) | 435 | 395 | 325 | 20 | 22 | 10,28 | |
| Flat flange GOST 12820-80 (01) 1-350-6 st.3 (20) | 485 | 445 | 377 | 22 | 12,58 | ||
| Flat flange GOST 12820-80 (01) 1-400-6 st.3 (20) | 535 | 495 | 426 | 24 | 16 | 15,2 | |
| Flat flange GOST 12820-80 (01) 1-500-6 st.3 (20) | 640 | 600 | 530 | 25 | 19,72 | ||
| Flat flange GOST 12820-80 (01) 1-600-6 st.3 (20) | 755 | 705 | 630 | 25 | 26 | 20 | 26,24 |
| Flat flange GOST 12820-80 (01) 1-800-6 st.3 (20) | 975 | 920 | 820 | 27 | 30 | 24 | 46,14 |
| Flat flange GOST 12820-80 (01) 1-1000-6 st.3 (20) | 1 175 | 1 120 | 1 020 | 31 | 28 | 64,36 | |
| Flat flange GOST 12820-80 (01) 1-1200-6 st.3 (20) | 1 400 | 1 340 | 1 220 | 34 | 33 | 32 | 99,03 |
Yes, we offer custom sizes for GOST 12820-80 Flanges to meet specific project needs. Our team at Ismail Flanges is committed to providing tailored solutions for all your requirements. For more details, contact us at sales@ismailflanges.id
We are renowned for delivering products with precise, accurate dimensions. Each product undergoes thorough testing, both destructive and non-destructive, to ensure quality before being shipped to our customers.
Our team is ready to assist you. Contact us for any queries or personalized solutions.
