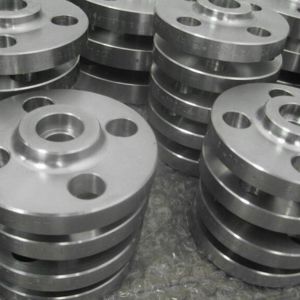

Ismail Flanges, Jakarta, Indonesia-based, is a trusted Incoloy 825 Flanges manufacturer and supplier offering corrosion-resistant, high-performance flange solutions for harsh chemical and high-temperature applications. Flanges are produced according to international specifications like ASTM B564 and ASME B16.5, providing reliable performance in challenging industries such as chemical processing, offshore oil and gas, pollution control, and nuclear fuel reprocessing. Ismail Flanges’ Incoloy 825 Flanges are renowned for their exceptional strength, dimension precision, and resistance to corrosive materials of a diverse nature.
Incoloy 825 Flanges consist of a majority of nickel content (38–46%), with considerable proportions of iron, chromium, and minute additions of molybdenum, copper, and titanium. This makes them highly resistant to sulfuric and phosphoric acids, seawater, pitting, stress corrosion cracking, and intergranular attack. The tensile strength of these flanges is normally about 585 MPa and is stable in high-hardness conditions at high temperatures, which suits them for both oxidizing and reducing environments.
Specifications : ASTM B564 / ASME SB564
Dimensions : ANSI/ASME B16.5, B 16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, etc.
Standard : ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, etc.
Size : 1/2″ (15 NB) to 48″ (1200NB)
Class/Pressure : 150#, 300#, 600#, 900#, 1500#, 2500#, PN6, PN10, PN16, PN25, PN40, PN64 etc.

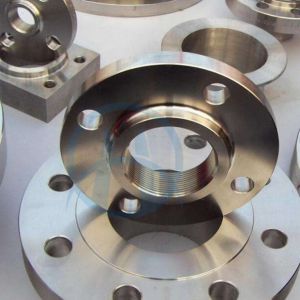

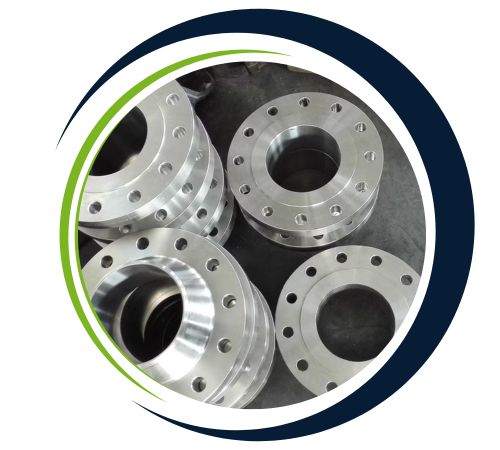

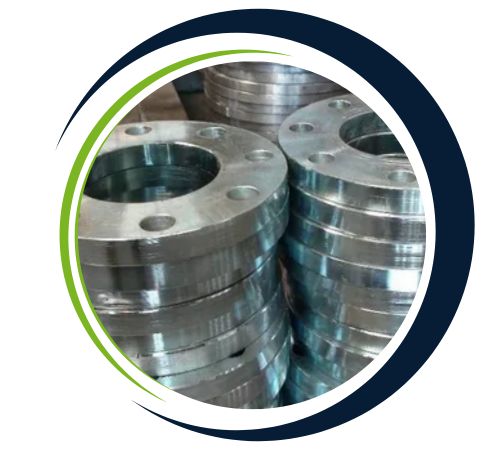

Flange Face Type : Flate Face (FF), Raised Face (RF), Ring Type Joint (RTJ)

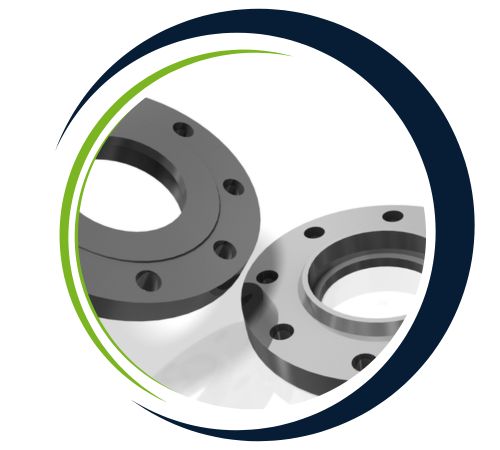

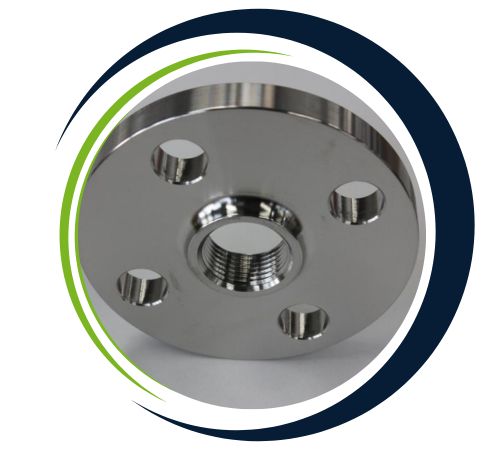

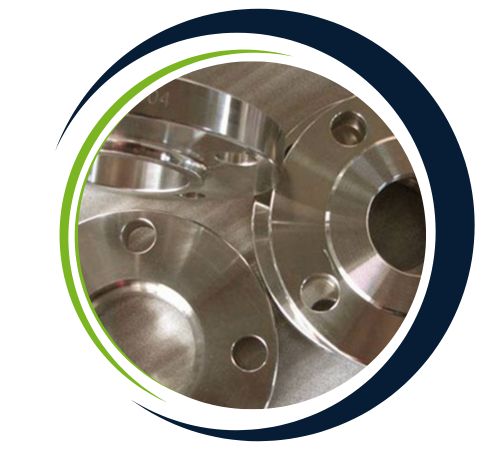

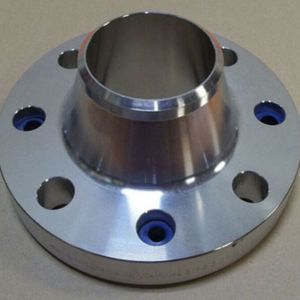

Type : Slip on flanges, Socket weld flanges, Forged flanges, Blind flanges, Welding neck flange, Ring type joint flange, Spectacle blind flange, Reducing flange, Threaded / Screwed flange, Tongue and Groove flange, Long weld neck flange, Flat flange, Industrial flanges, Plate flange, ASME B16.5 flanges.
Ismail Flanges, a leading supplier in Indonesia, Jakarta, offers an extensive selection of Incoloy 825 Flanges, including weld neck flanges, slip-on flanges, blind flanges, threaded flanges, and lap joint flanges. Designed for diverse industrial applications, our high-quality inventory and commitment to exceptional service make us a trusted choice for flange products in the region.
| Grade | C | Mn | Si | S | Cu | Fe | Ni | Cr | Al | Ti |
| Incoloy 825 | 0.05 max | 1.00 max | 0.5 max | 0.03 max | 1.50 – 3 | 22.00 min | 38 – 46 | 19.50 – 23.50 | 0.02 max | 0.06 – 1.20 |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 8.14 g/cm3 | 1400 °C (2550 °F) | Psi – 80,000 , MPa – 550 | Psi – 32,000 , MPa – 220 | 30 % |
These flanges are generally applied in heat exchangers, chemical vessels, acid plants, pickling units, and piping systems with aggressive fluids. Incoloy 825 Flanges are especially efficient in systems confronted with aggressive chemicals, high salinity, and temperature stresses. Their superior resistance to localized corrosion and their capability to maintain mechanical properties during long periods of time make them the choice of critical operations demanding safety, reliability, and long-term performance.
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN | OR |
| Incoloy 825 | 2.4858 | N08825 | NCF 825 | NA 16 | ЭП703 | NFE30C20DUM | NiCr21Mo | XH38BT |
Yes, we offer custom sizes for Incoloy 825 Flanges to meet specific project needs. Our team at Ismail Flanges is committed to providing tailored solutions for all your requirements. For more details, contact us at sales@ismailflanges.id.
We are renowned for delivering products with precise, accurate dimensions. Each product undergoes thorough testing, both destructive and non-destructive, to ensure quality before being shipped to our customers.
Our team is ready to assist you. Contact us for any queries or personalized solutions.
