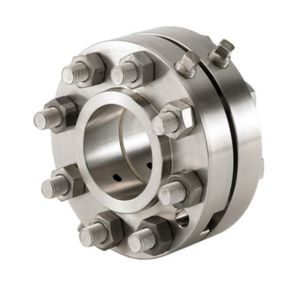

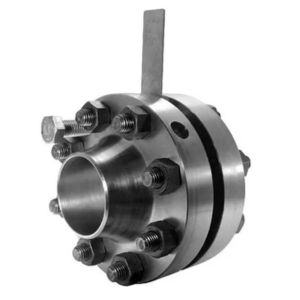

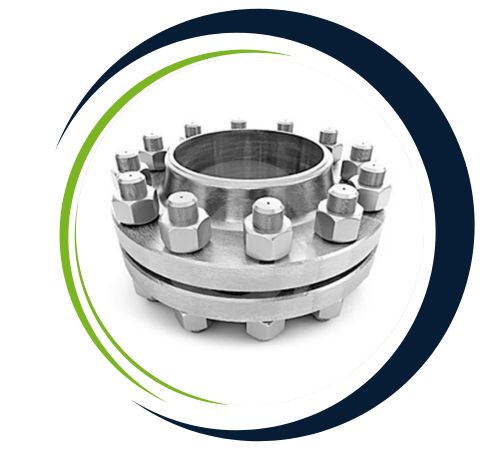

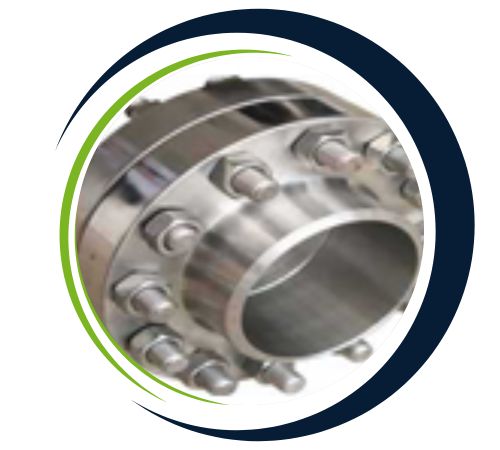

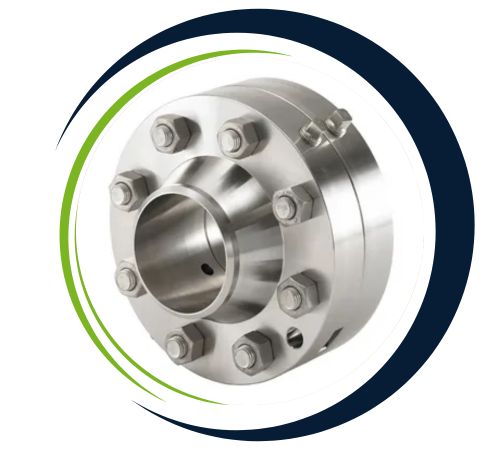

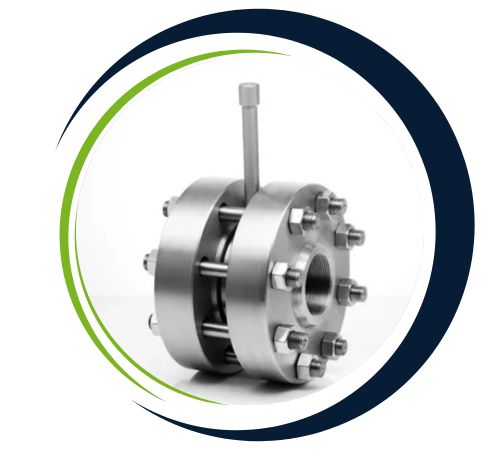

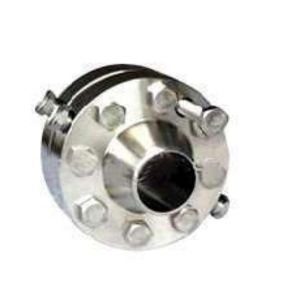

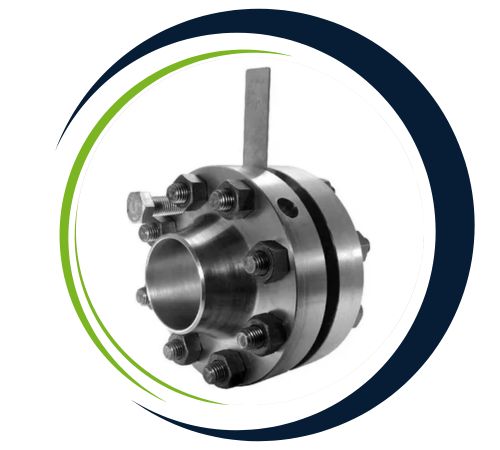

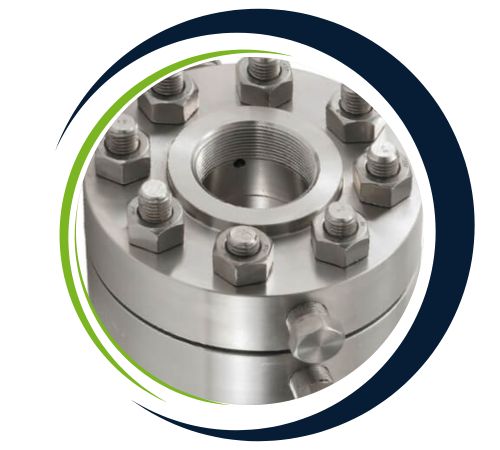

Ismail Flanges is a trusted Inconel Orifice Flanges manufacturer and exporter that is located in Jakarta, Indonesia. Our orifice flanges are designed for flow-measuring systems, where precise observation of fluid or gas is necessary. Made from high-performance Inconel alloy, our flanges are built to maintain the requirements under corrosive and high-temperature application. We provide orifice flanges with integrated orifice plates and pressure tap holes according to ASME and API specifications. Inconel orifice flanges are extensively applied in power plants, chemical processing, and offshore platforms. Ismail Flanges delivers customized, long-lasting, and accurate flow-control flange solutions according to industrial process demands.
Inconel Orifice Flanges consist of nickel (58–72%), chromium (14–21%), and molybdenum, with smaller proportions of iron and niobium. Such materials provide superior corrosion resistance and mechanical strength. Tensile strength is generally in the order of 750–1000 MPa, and yield strength is 300–600 MPa. They are able to sustain performance over high temperatures above 1000°C and offer elongation of about 30%. They are resistant to chloride-induced corrosion and oxidizing environments and hence suitable for detecting aggressive or high-temperature process fluids. The orifice flange design incorporates tapped holes for differential pressure measurement.
Ismail Flanges, a premier supplier in Indonesia, Jakarta, specializes in high-quality Inconel Orifice Flanges, valued for their exceptional durability, corrosion resistance, precise engineering, and suitability across diverse industrial applications.
| Specifications | ASTM B564 / ASME SB564 |
|---|---|
| Dimensions | ANSI/ASME B16.5, B16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, etc. |
| Standard | ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, etc. |
| Size | 1/2″ (15 NB) to 48″ (1200NB) |
| Class / Pressure | 150#, 300#, 600#, 900#, 1500#, 2500#, PN6, PN10, PN16, PN25, PN40, PN64 etc. |
| Flange Face Type | Flat Face (FF), Raised Face (RF), Ring Type Joint (RTJ) |
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN | OR |
| Inconel 600 | 2.4816 | N06600 | NCF 600 | NA 13 | МНЖМц 28-2,5-1,5 | NC15FE11M | NiCr15Fe | – |
| Inconel 625 | 2.4856 | N06625 | NCF 625 | NA 21 | ХН75МБТЮ | NC22DNB4M | NiCr22Mo9Nb | – |
| Inconel 718 | 2.4668 | N07718 | – | – | – | – | – | – |
Inconel Orifice Flanges are specially utilized in flow metering systems for the measurement of fluid or gas flow rate through pipes. They are widespread in chemical, oil & gas, and power generation industries and provide consistent performance under rigorous conditions. Inconel Orifice Flanges are mounted with orifice plates and differential pressure gauges for accurate flow measurement. Their corrosion resistance and high strength make them ideal for use in systems transporting steam, acids, hydrocarbons, and seawater. They‘re frequently applied in offshore drilling rigs, thermal facilities, and refinery plants. Inconel orifice flanges improve system efficiency, safety, and control in critical flow measuring operations.
Yes, we offer custom sizes for Inconel Orifice Flanges to meet specific project needs. Our team at Ismail Flanges is committed to providing tailored solutions for all your requirements. For more details, contact us at sales@ismailflanges.id.
We are renowned for delivering products with precise, accurate dimensions. Each product undergoes thorough testing, both destructive and non-destructive, to ensure quality before being shipped to our customers.
Our team is ready to assist you. Contact us for any queries or personalized solutions.
