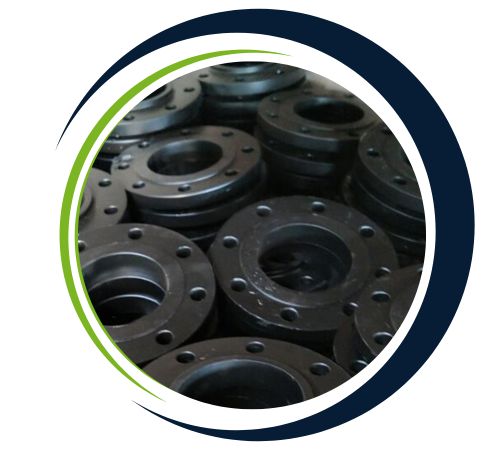

Ismail Flanges, based in Indonesia, Jakarta, is a premier manufacturer and supplier of Low Temperature Carbon Steel LF2 Flanges. Engineered for exceptional performance in sub-zero environments, our LF2 flanges offer superior strength, durability, and resistance to brittle fracture, making them ideal for demanding applications in industries like oil and gas, petrochemicals, and power generation. With a focus on quality and customer satisfaction, Ismail Flanges delivers customized, high-quality solutions that meet industry standards, ensuring secure, reliable connections in critical systems.
Low-alloy carbon steel, which is ideal for cold-temperature service, is used to make LF2 Carbon Steel Flanges. It contains carbon, manganese, silicon, phosphorus, and sulphur. These flanges have an elongation of about 22%, a tensile strength of 485–620 MPa, and a minimum yield strength of 250 MPa. At temperatures as low as -46°C, LF2 flanges provide exceptional impact resistance along with good weldability and machinability. Because of their mechanical characteristics, they are ideal for low-temperature applications that call for durability, ductility, and strength in the face of changing pressure and temperature.
|
Specifications |
ASTM A350 LF2 / ASME SA350 |
|
Dimensions |
ANSI/ASME B16.5, B 16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, etc. |
|
Standard |
ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, etc. |
|
Size |
1/2″ to 48″ |
|
Material |
ASTM A350 LF1, LF2 CL1/CL2, LF3 CL1/CL2 |
|
Class / Pressure |
150#, 300#, 600#, 900#, 1500#, 2500#, PN6, PN10, PN16, PN25, PN40, PN64 etc. |
|
Flange Face Type |
Flate Face (FF), Raised Face (RF), Ring Type Joint (RTJ) |
|
Element |
Weight % |
|
Carbon |
0.30 max |
|
Silicon |
0.15 – 0.30 |
|
Manganese |
0.6 – 1.35 |
|
Phosphorus |
0.35 max |
|
Sulphur |
0.040 max |
|
Molybdenum |
0.12 max |
|
Copper |
0.40 max |
|
Chromium |
0.30 max |
|
Nickel |
0.40 max |
|
Vanadium |
0.08 max |
|
Niobium |
0.02 max |
|
Property |
Values |
|
Ultimate Tensile Strength |
485 – 655 N/mm2 |
|
0.2% Yield Strength |
250 N/mm2 min |
|
Elongation |
22% min |
|
Reduction of Area |
30% min |
|
Charpy Impact Toughness |
20 average / 16 min J at -46o C |
|
Hardness |
197 HB |

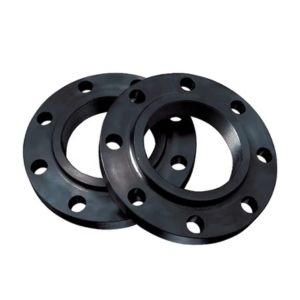

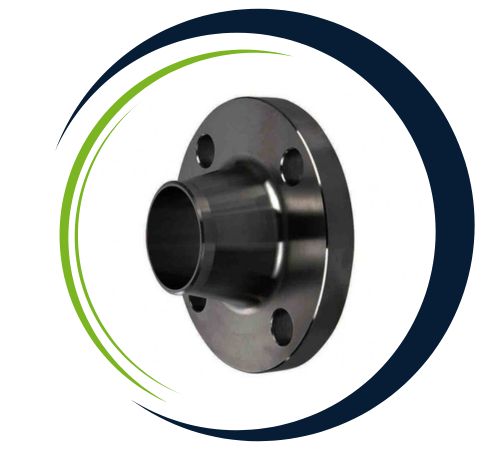

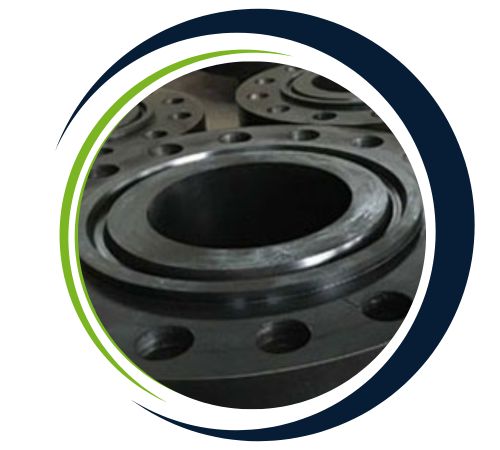

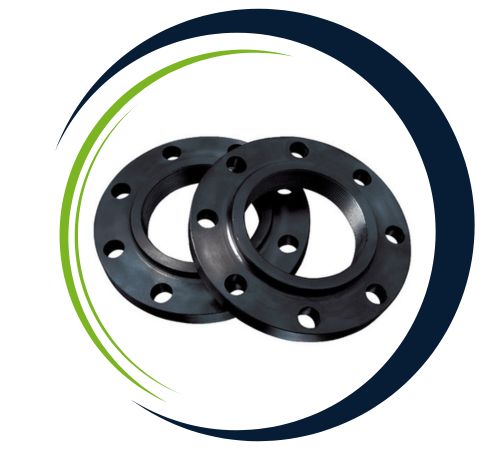

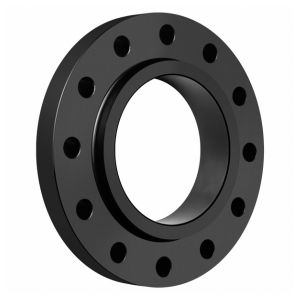

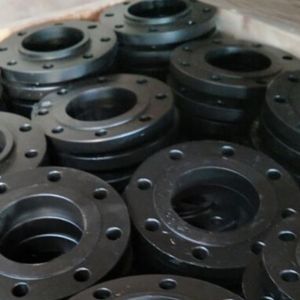

Ismail Flanges, a leading supplier in Indonesia, Jakarta, offers an extensive selection of Low Temperature Carbon Steel LF2 Flanges, including weld neck flanges, slip-on flanges, blind flanges, threaded flanges, and lap joint flanges. Designed for diverse industrial applications, our high-quality inventory and commitment to exceptional service make us a trusted choice for flange products in the region.
Low Temperature Carbon Steel LF2 Flanges are frequently utilised in refineries, cryogenic facilities, oil and gas transmission, LNG processing, and other applications where service temperatures are below freezing. They are perfect for use in low-temperature applications such as heat exchangers, valves, piping systems, and pressure vessels. These flanges guarantee structural integrity and leak-proof connections in systems subjected to mechanical stress and thermal cycling. LF2 flanges are also frequently found in power generation units, chemical plants, and offshore platforms where safety and dependability in extremely cold temperatures are crucial.
Yes, we offer custom sizes for Low Temperature Carbon Steel LF2 Flanges to meet specific project needs. Our team at Ismail Flanges is committed to providing tailored solutions for all your requirements. For more details, contact us at sales@ismailflanges.id.
We are renowned for delivering products with precise, accurate dimensions. Each product undergoes thorough testing, both destructive and non-destructive, to ensure quality before being shipped to our customers.
Our team is ready to assist you. Contact us for any queries or personalized solutions.
