Nickel Alloy 200 Flanges Manufacturer and Supplier in Jakarta, Indonesia

Reputable Nickel Alloy 200 Flange manufacturer and supplier Ismail Flanges, with headquarters in Jakarta, Indonesia, provides premium solutions for sectors needing exceptional resistance to corrosive environments. Commercially available nickel alloy 200 offers exceptional resistance to a variety of corrosive media, including acidic and alkaline conditions. These flanges are extensively utilised in industries such as electronics, food handling, and chemical processing because of their exceptional mechanical qualities and resistance to high-temperature oxidation. To guarantee the functionality and longevity of our products, Ismail Flanges combines state-of-the-art technology with stringent quality controls.

Nickel Alloy DIN 2.4066 Flanges Supplier in Surabaya, Nickel Alloy 200 Flanges Bandung, Nickel 200 Flanges Suppliers in Surabaya, UNS N02200 Flanges Price in Jakarta, DIN 2.4066 Flanges Price List in Bekasi, Alloy 200 Flanges Stockist in Bekasi, UNS N02200 Flanges Price List in Bandung

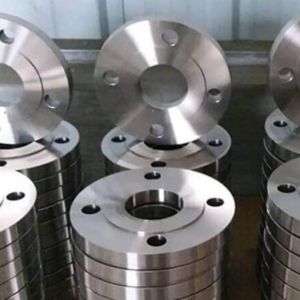

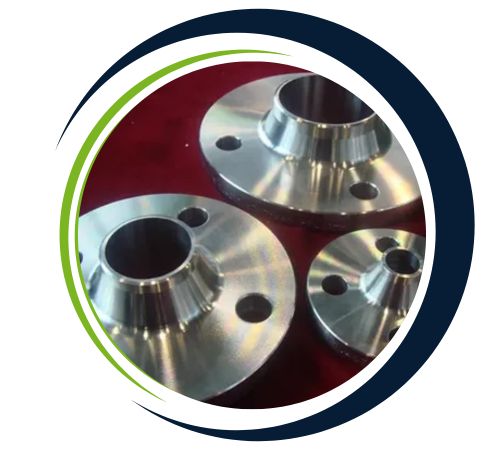

Nickel Alloy 200 Flanges

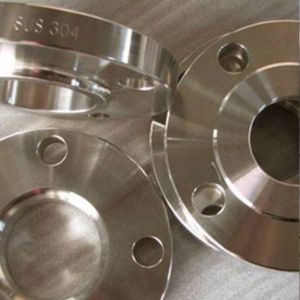

Nickel Alloy 200 Raised Face Flanges

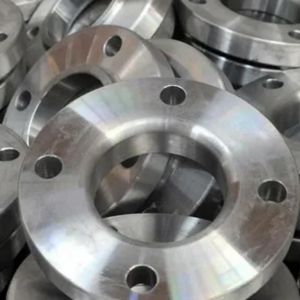

Nickel Alloy 200 RTJ Flange

The composition of Nickel Alloy 200 Flanges is 99% pure nickel with trace amounts of copper (0.3%), iron (0.4%), and other elements. Nickel 200 has exceptional corrosion resistance due to its high purity, especially in acidic and alkaline environments. The material has an elongation of roughly 40%, a yield strength of 170 MPa, and a tensile strength of 450 MPa. It provides excellent thermal and electrical conductivity and maintains its stability at high temperatures. Additionally, nickel alloy 200 flanges exhibit outstanding fabricability and weldability, which makes them perfect for a variety of industrial applications.

UNS N02200 Flanges Weight Chart in Bekasi, Nickel Alloy 200 Flanges Supplier in Indonesia, DIN 2.4066 Flanges Stockists in Surabaya, Alloy 200 Flanges Dealer in Surabaya, UNS N02200 Flanges Price in Bandung, Nickel Alloy 200 Flanges Weight Chart, Nickel DIN 2.4066 Flanges Weight Chart

Nickel Alloy 200 Flanges Specification

Grade	Nickel Alloy 200 / UNS N02200
Standard	ASTM B564, ASME SB564
Dimensions	ANSI / ASME B16.5, B16.47 Series A & B, B.16.48, BS4504, BS10, DIN, EN-1092, MSS SP44
Size	1/2″ – 48″ (15NB – 1200NB)
Class / Pressure Rating	150 Class, 300 Class, 200 Class, 900 Class, 1500 Class, 2500 Class, PN6, PN10, PN16, PN25, PN40, PN64, etc.
Form	Slip on Flanges (SORF), Threaded Flanges, Weld neck Flanges (WNRF), Blind Flanges, Socket weld Flanges, Lap Joint Flanges, Ring Type Joint Flanges, Spectacle Blind Flanges, Spacer Ring Flanges, Long weld Neck Flanges, Nipo Flange, Nipolet Flanges, Plate Flanges, Flat Flange, Orifice Flanges, Forged Flanges
Flange Face Type	Flat Face (FF), Raised Face (RF), Ring Type Joint(RTJ)

Nickel Alloy 200 Flanges Chemical Composition

Grade	C	Mn	Si	S	Cu	Fe	Ni
Nickel 200	0.15 max	0.35 max	0.35 max	0.01 max	0.25 max	0.40 max	99.0 min

Nickel Alloy 200 Flanges Mechanical Properties

Element	Density	Melting Point	Tensile Strength	Yield Strength (0.2%Offset)	Elongation
Nickel 200	8.9 g/cm3	1446 °C (2635 °F)	Psi – 67000 , MPa – 462	Psi – 21500 , MPa – 148	45 %

Equivalent Grades of Nickel Alloy 200 Flanges

STANDARD	WERKSTOFF NR.	UNS	JIS	BS	GOST	AFNOR	EN
Nickel 200	2.4066	N02200	NW 2200	NA 11	НП-2	N-100M	Ni 99.2

Largest Nickel Alloy 200 Flanges Supplier in Indonesia, Jakarta

Ismail Flanges, a leading supplier in Indonesia, Jakarta, offers an extensive selection of Nickel Alloy 200 Flanges, including weld neck flanges, slip-on flanges, blind flanges, threaded flanges, and lap joint flanges. Designed for diverse industrial applications, our high-quality inventory and commitment to exceptional service make us a trusted choice for flange products in the region.

Contact us to get a quick quote for your requirement.

We offer These Flanges as per DIN, ISO, JIS or ANSI Standard.

Industries that require corrosion resistance and high-temperature performance frequently use nickel alloy 200 flanges. Chemical processing, pharmaceutical manufacturing, food processing, and the oil and gas sector are among the common uses. These flanges are perfect for use in piping systems, heat exchangers, pressure vessels, and valves that are subjected to alkaline conditions, caustic solutions, and corrosive chemicals. Because of its resistance to extreme conditions, the material can also be used in electronics, hydrocarbon processing, and electrochemical applications. In demanding, corrosive conditions, nickel 200 flanges offer enduring performance and durability.

ASTM B564 Nickel Alloy Flanges Supplier in Indonesia, Nickel Alloy 200 Flanges Exporters in Indonesia, UNS N02200 Flanges Manufacturers in Surabaya, DIN 2.4066 Flanges Price List in Bekasi, UNS N02200 Flanges Dealer in Surabaya, Alloy 200 Flanges Manufacturers in Surabaya, Nickel Alloy 200 Flanges Suppliers in Indonesia, DIN 2.4066 Flanges Dealers in Indonesia

Types of Nickel Alloy 200 Flanges

Dimensions of Nickel Alloy 200 Flanges

Size in Inch	Size in mm	Outer Diameter	Flange Thickness	Hub OD	Weld Neck OD	Welding Neck Length	Bore	RF Diameter	RF Height	PCD	Weld Face
		A	B	C	D	E	F	G	H	I	J
1/2	15	90	9.6	30	21.3	46	Refer Note	34.9	2	60.3	1.6
3/4	20	100	11.2	38	26.7	51		42.9	2	69.9	1.6
1	25	110	12.7	49	33.4	54		50.8	2	79.4	1.6
1 1/4	32	115	14.3	59	42.2	56		63.5	2	88.9	1.6
1 1/2	40	125	15.9	65	48.3	60		73	2	98.4	1.6
2	50	150	17.5	78	60.3	62		92.1	2	120.7	1.6
2 1/2	65	180	20.7	90	73	68		104.8	2	139.7	1.6
3	80	190	22.3	108	88.9	68		127	2	152.4	1.6
3 1/2	90	215	22.3	122	101.6	70		139.7	2	177.8	1.6
4	100	230	22.3	135	114.3	75		157.2	2	190.5	1.6
5	125	255	22.3	164	141.3	87		185.7	2	215.9	1.6
6	150	280	23.9	192	168.3	87		215.9	2	241.3	1.6
8	200	345	27	246	219.1	100		269.9	2	298.5	1.6
10	250	405	28.6	305	273	100		323.8	2	362	1.6
12	300	485	30.2	365	323.8	113		381	2	431.8	1.6
14	350	535	33.4	400	355.6	125		412.8	2	476.3	1.6
16	400	595	35	457	406.4	125		469.9	2	539.8	1.6
18	450	635	38.1	505	457.2	138		533.4	2	577.9	1.6
20	500	700	41.3	559	508	143		584.2	2	635	1.6
24	600	815	46.1	663	610	151		692.2	2	749.3	1.6

Size of NICKEL ALLOY 200 Flanges

Normal Sizes In inch	Dimension	Flanges Dimensional Sizes 1/2 inch. to 2 1/2 inch.
		Class 125 Class 150		Class 300		Class 400		Class 600		Class 900		Class 1500		Class 2500
		inch.	mm	inch.	millimeter	inch.	mm	inch.	mm	inch.	mm	inch.	mm	inch		mm
1/2	A	3 1/2	88.9	3 3/4	95.2	3 3/4	95.2	3 3/4	95.2	4 3/4	121	4 3/4	121	5 1/4	133.4
	b	7/16	11.1	9/16	14.3	9/16	14.3	9/16	14.3	7/8	22.2	7/8	22.2	1 3/16	30.2
	D2	1 3/8	34.9	1 3/8	34.9	1 3/8	34.9	1 3/8	34.9	1 3/8	34.9	1 3/8	34.9	1 3/8	34.9
	D1	2 3/8	60.3	2 5/8	66.7	2 5/8	66.7	2 5/8	66.7	3 1/4	82.6	3 1/4	82.6	3 1/2	88.9
	n	4	4	4	4	4	4	4	4	4	4	4	–	4	44
	d	5/8	15.9	5/8	15.9	5/8	15.9	5/8	15.9	7/8	22.2	7/8	22.2	7/8	22.2
3/4	A	3 7/8	98.4	4 5/8	117.5	4 5/8	117.5	4 5/8	117.5	5 1/8	130	5 1/8	130	5 1/2	139.7
	b	1/2	12.7	5/8	15.9	5/8	15.9	5/8	15.9	1	25.4	1	25.4	1 1/4	31.8
	D2	1 11/16	42.9	1 11/16	42.9	1 11/16	42.9	1 11/16	42.9	1 11/16	42.9	1 11/16	42.9	1 11/16	42.9
	D1	2 3/4	69.8	3 1/4	82.5	3 1/4	82.5	3 1/4	82.5	3 1/2	88.9	3 1/2	88.9	3 3/4	95.2
	n	4	4	4	4	4	4	4	4	4	4	4	–	4	44
	d	5/8	15.9	3/4	19	3/4	19	3/4	19	7/8	22.2	7/8	22.2	7/8	22.2
1	A	4 1/4	108	4 7/8	123.8	4 7/8	123.8	4 7/8	123.8	5 7/8	149.2	5 7/8	149.2	6 1/4	159
	b	9/16	14.3	11/16	17.5	11/16	17.5	11/16	17.5	1 1/8	28.6	1 1/8	28.6	1 3/8	34.9
	D2	2	50.8	2	50.8	2	50.8	2	50.8	2	50.8	2	50.8	2	50.8
	D1	3 1/8	79.4	3 1/2	88.9	3 1/2	88.9	3 1/2	88.9	4	102	4	102	4 1/4	108
	n	4	4	4	4	4	4	4	4	4	4	4	4	4	4
	d	5/8	15.9	3/4	19	3/4	19	3/4	19	1	25.4	1	25.4	1	25.4
1 1/4	A	4 5/8	117.5	5 1/4	133.4	5 1/4	133.4	5 1/4	133.4	6 1/4	159	6 1/4	159	7 1/4	184.2
	b	5/8	15.9	3/4	19	13/16	20.6	13/16	20.6	1 1/8	28.6	1 1/8	28.6	1 1/2	38.1
	D2	2 1/2	63.5	2 1/2	63.5	2 1/2	63.5	2 1/2	63.5	2 1/2	63.5	2 1/2	63.5	2 1/2	63.5
	D1	3 1/2	88.9	3 7/8	98.4	3 7/8	98.4	3 7/8	98.4	4 3/8	111	4 3/8	111	5 1/8	130
	n	4	4	4	4	4	4	4	4	4	4	4	4	4	4
	d	5/8	15.9	3/4	19	3/4	19	3/4	19	1	25.4	1	25.4	1 1/8	28.6
1 1/2	A	5	127	6 1/8	155.6	6 1/8	155.6	6 1/8	155.6	7	177.8	7	177.8	8	203
	b	11/16	17.5	13/16	20.6	7/8	22.2	7/8	22.2	1 1/4	31.8	1 1/4	31.8	1 3/4	44.5
	D2	2 7/8	73 98	2 7/8	73	2 7/8	73	2 7/8	73	2 7/8	73	2 7/8	73	2 7/8	73
	D1	3 7/8	4	4 1/2	114	4 1/2	114	4 1/2	114	4 7/8	124	4 7/8	124	5 3/4	146
	n	4	4	4	4	4	4	4	4	4	4	4	4	4	4
	d	5/8	. 15.9	7/8	22.2	7/8	22.2	7/8	22.2	1 1/8	28.6	1 1/8	28.6	1 1/4	31.8
2	A	6	152.4	6 1/2	165.1	6 1/2	165.1	6 1/2	165.1	8 1/2	215.9	8 1/2	215.9	9 1/4	234.9
	b	3/4	19	7/8	22.2	1	25.4	1	25.4	1 1/2	38.1	1 1/2	38.1	2	50.8
	D2	3 5/8	92.1	3 5/8	92.1	3 5/8	92.1	3 5/8	92.1	3 5/8	92.1	3 5/8	92.1	3 5/8	92.1
	D1	4 3/4	121	5	127	5	127	5	127	6 1/2	165.1	6 1/2	165.1	6 3/4	171
	n	4	4	8	8	8	8	8	8	8	8	8	8	8	8
	d	3/4	19	3/4	19	3/4	19	3/4	19	1	25.4	1	25.4	1 1/8	28.6
2 1/2	A	7	177.8	7 1/2	190.5	7 1/2	190.5	7 1/2	190.5	9 5/8	244	9 5/8	244	10 1/2	266.7
	b	7/8	22.2	1	25.4	1 1/8	28.6	1 1/8	28.6	1 5/8	41.3	1 5/8	41.3	2 1/4	57.2
	D2	4 1/8	104.8	4 1/8	104.8	4 1/8	104.8	4 1/8	104.8	4 1/8	105	4 1/8	105	4 1/8	105
	D1	5 1/2	139.7	5 7/8	149.2	5 7/8	149.2	5 7/8	149.2	7 1/2	190.5	7 1/2	190.5	7 3/4	197
	n	4	4	8	8	8	8	8	8	8	8	8	8	8	8
	d	3/4	19	7/8	22.2	7/8	22.2	7/8	22.2	1 1/8	28.6	1 1/8	28.6	1 1/4	31.8

Are Custom Sizes Available for Nickel Alloy 200 Flanges?

Yes, we offer custom sizes for Nickel Alloy 200 Flanges to meet specific project needs. Our team at Ismail Flanges is committed to providing tailored solutions for all your requirements. For more details, contact us at sales@ismailflanges.id.

Material Testing

We are renowned for delivering products with precise, accurate dimensions. Each product undergoes thorough testing, both destructive and non-destructive, to ensure quality before being shipped to our customers.
