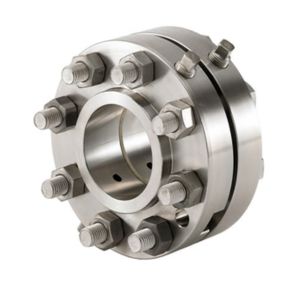

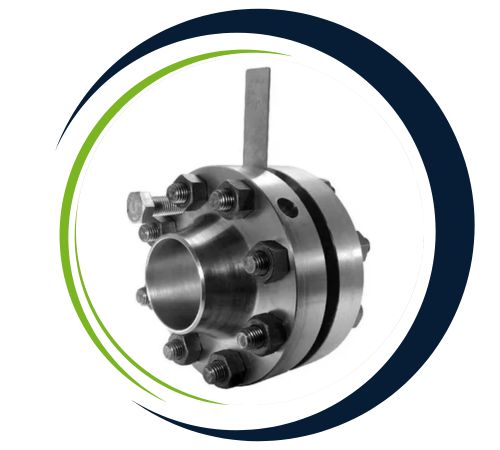

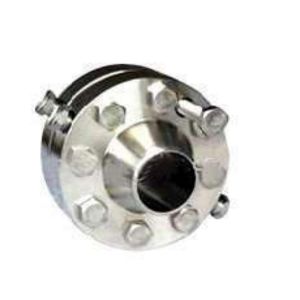

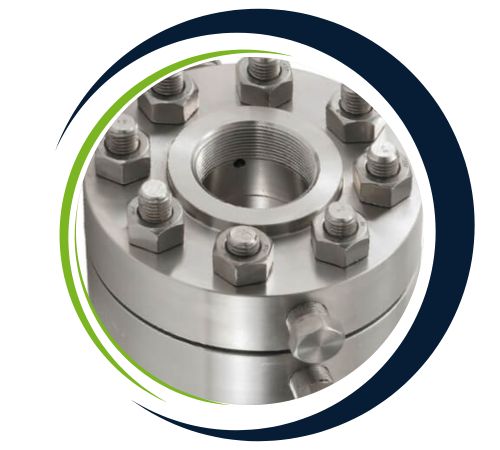

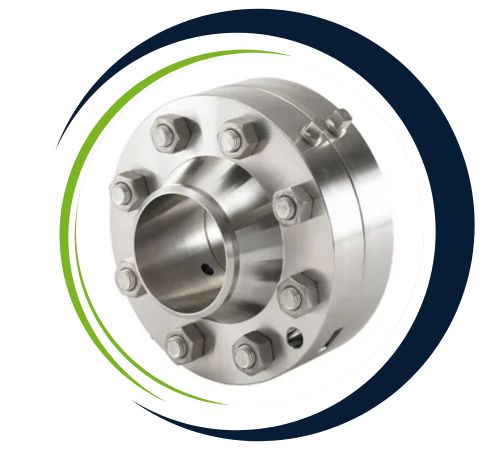

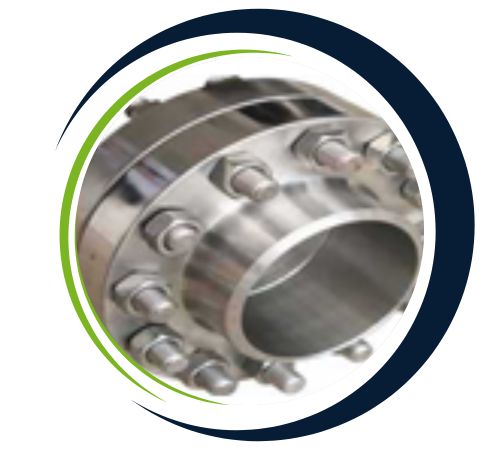

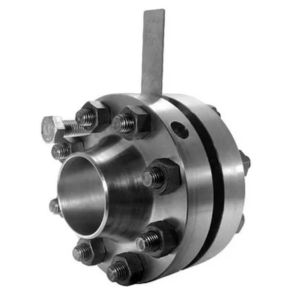

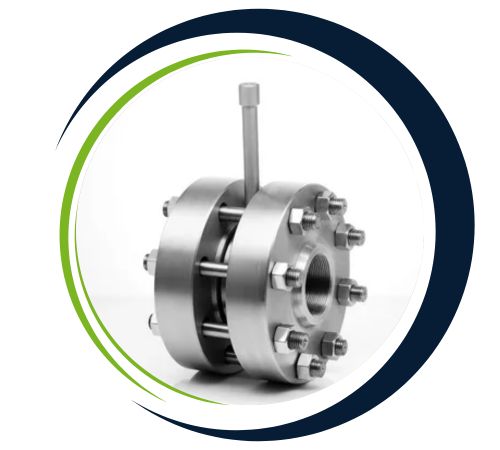

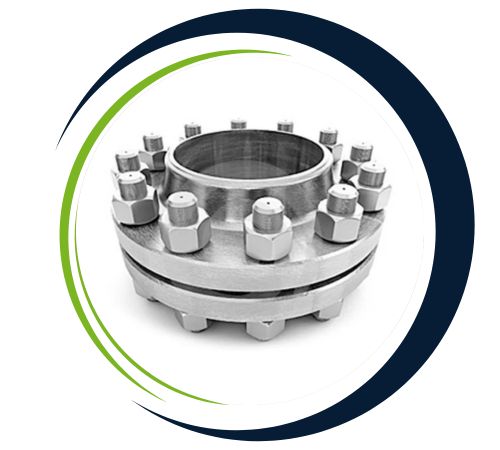

Ismail Flanges is a well-respected manufacturer and supplier of Nickel Alloy Orifice Flanges, proudly based in Jakarta, Indonesia. They specialize in crafting precision-engineered solutions that ensure accurate flow measurement in tough industrial settings. These flanges are expertly designed to securely hold orifice plates between two mating flanges, enabling precise monitoring and control of fluid flow rates. Made from high-performance nickel alloys like Nickel 200/201, Monel 400, Inconel 600/625, and Hastelloy C276, they boast outstanding corrosion resistance, strength, and reliability. Ismail’s Nickel Alloy Orifice Flanges comply with ASME B16.36 standards and are trusted across various sectors, including chemical processing, petrochemicals, power generation, marine, and offshore applications.
Nickel alloy orifice flanges are generally constructed from alloys such as Inconel, Monel or Hastelloy, which provide superior corrosion heat and oxidation resistance. The composition is high in nickel content (up to 80%) with other components such as chromium and molybdenum. Mechanical properties are high tensile strength, usually between 550 MPa and 1000 MPa and fatigue and impact resistance. Physically, they are defined by high density, good weldability, and thermal expansion resistance. These attributes render them suitable for application in chemical, petrochemical and high-temperature processes.
Ismail Flanges, a premier supplier in Indonesia, Jakarta, specializes in high-quality Nickel Alloy Orifice Flanges, valued for their exceptional durability, corrosion resistance, precise engineering, and suitability across diverse industrial applications.
| Specifications | ASTM B564 / ASME SB564 |
|---|---|
| Dimensions | ANSI/ASME B16.5, B16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, etc. |
| Standard | ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, etc. |
| Size | 1/2″ (15 NB) to 48″ (1200NB) |
| Class / Pressure | 150#, 300#, 600#, 900#, 1500#, 2500#, PN6, PN10, PN16, PN25, PN40, PN64 etc. |
| Flange Face Type | Flat Face (FF), Raised Face (RF), Ring Type Joint (RTJ) |
| STANDARD | WERKSTOFF NR. | UNS |
|---|---|---|
| Nickel 200 | 2.4066 | N02200 |
| Nickel 201 | 2.4068 | N02201 |
Nickel alloy orifice flanges are mostly employed in oil and gas, chemical processing and power generation industries for fluid flow measurement and control. They are specifically intended to accommodate orifice plates for accurate measurement of fluid flow rates. Because nickel alloys possess higher corrosion resistance these flanges are best suited for dealing with aggressive, corrosive environments especially in high-temperature and high-pressure conditions. Their strength guarantees durability and dependability and they are thus vital in critical fluid systems that need accuracy and endurance under harsh conditions.
Yes, we offer custom sizes for Nickel Alloy Orifice Flanges to meet specific project needs. Our team at Ismail Flanges is committed to providing tailored solutions for all your requirements. For more details, contact us at sales@ismailflanges.id.
We are renowned for delivering products with precise, accurate dimensions. Each product undergoes thorough testing, both destructive and non-destructive, to ensure quality before being shipped to our customers.
Our team is ready to assist you. Contact us for any queries or personalized solutions.
