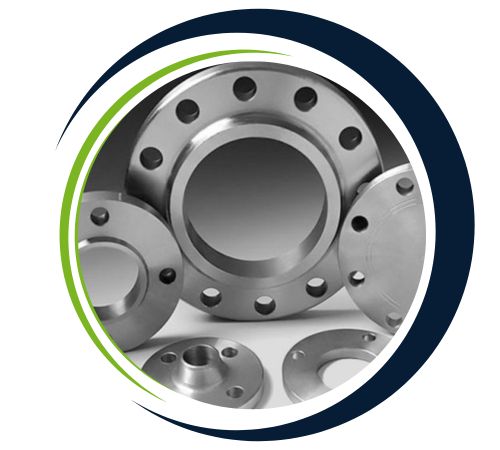

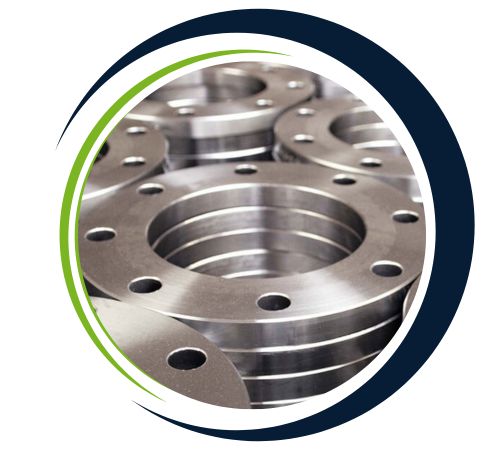

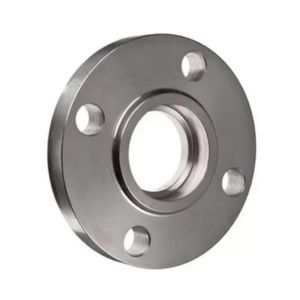

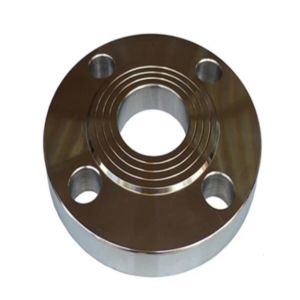

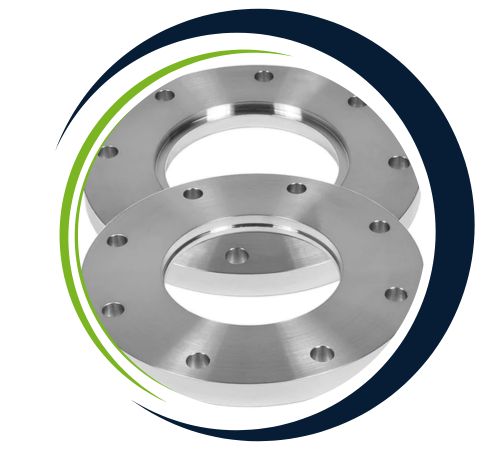

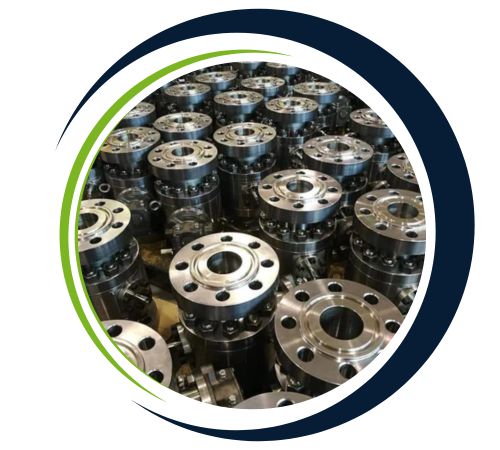

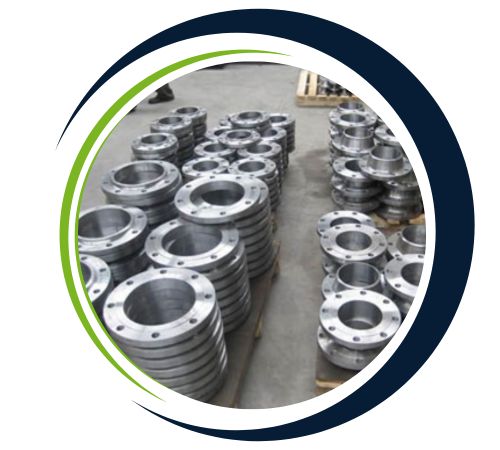

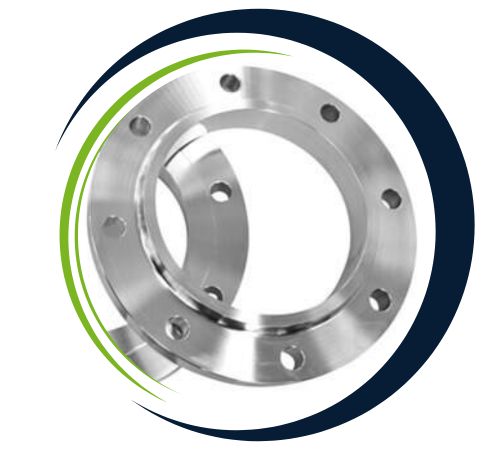

Ismail Flanges is a reputable manufacturer and supplier of Super Duplex Steel Slip On Flanges based in Jakarta, Indonesia. We take pride in offering flanges that are precision-engineered for top-notch performance, especially in high-pressure and corrosive settings. Our Super Duplex slip on flanges are designed to resist pitting, crevice corrosion, and stress corrosion cracking caused by chlorides. With enhanced mechanical strength and excellent weldability, these flanges ensure secure, leak-proof connections in piping systems. We cater to various industries, including offshore, petrochemical, marine, and power generation, providing reliable flange solutions that promise durability, structural integrity, and cost-effectiveness even in the toughest conditions.
Super Duplex Steel Slip On Flanges are crafted from a well-balanced blend of austenitic and ferritic stainless steels, typically containing Chromium (24–26%), Nickel (6–8%), Molybdenum (3–5%), Nitrogen (0.2–0.3%), and Iron (the remainder). These flanges boast impressive mechanical properties, with tensile strength ranging from 750–950 MPa, yield strength around 550 MPa, and elongation of 25–30%. Their unique dual-phase microstructure significantly enhances corrosion resistance, particularly in aggressive environments rich in chlorides. Known for their exceptional toughness, fatigue resistance, and weldability, Super Duplex flanges are perfect for high-performance, high-pressure applications across a variety of industries.
| Specification | ASTM A182 / ASME SA182 |
|---|---|
| Size Chart | 1/2″ (15 NB) to 48″ (1200NB) DN10~DN5000 |
| Standards | ANSI/ASME B16.5, B16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, GOST Flange, ASME/ANSI B16.5/16.36/16.47A/16.47B, M Super Duplex Steel S44, ISO70051, JISB2220, BS1560-3.1, API7S-15, API7S-43, API605, EN1092 |
| Pressure Rating ANSI | Class 150 LBS, 300 LBS, s32760 LBS, 900 LBS, 1500 LBS, 2500 LBS |
| Pressure Calculation in DIN | 6Bar 10Bar 16Bar 25Bar 40Bar / PN6 PN10 PN16 PN25 PN40, PN64 |
| UNI | 6Bar 10Bar 16Bar 25Bar 40Bar |
| EN | 6Bar 10Bar 16Bar 25Bar 40Bar |
| Coating | Oil Black Paint, Anti-rust Paint, Zinc Plated, Yellow Transparent, Cold and Hot Dip Galvanized |
| Test Certificates | EN 10204/3.1B Raw Materials Certificate 100% Radiography Test Report Third Party Inspection Report, etc |
| Production Technique | Forged, Heat treated and machined |
| Connect Type/ Flange Face Type | Raised Face (RF), Ring Type Joint (RTJ), Flat Face (FF), Large Male-Female (LMF), Lap-Joint Face (LJF), Small Male-Female (SMF), Small Tongue, Large Tongue & Groove, Groove |
| Special design | As per your drawing AS, ANSI, BS, DIN and JIS 15 NB (1/2″) to 200 NB (8″) Equal and Reducing Configurations |
| Test | Direct-reading Spectrograph, Hydrostatic testing machine, X-ray detector, UI trasonic flaw detector, Magnetic particle detector |
| Equipment | Presuper-duplex-steel machine, Bending machine, Pushing Machine, electric bevelling machine, Sand-blasting machine etc |
| Manufacturer of | ANSI DIN, GOST, JIS, UNI, BS, AS2129, AWWA, EN, SABS, NFE etc. BS Flange, EN Flange, API 6A Flange, ANSI Flange, ASME Flange, DIN Flange, EN1092-1 Flange, UNI Flange, JIS/ KS Flange, BS4504 Flange, GB Flange, AWWA C207 Flange, GOST Flange, PSI Flange B.S: BS4504 , BS3293, BS1560, BS10 AS 2129: Table D; Table E; Table H ANSI B16.5, ANSI B16.47 Series A & B, M Super Duplex Steel SP44, ASA, API-605, AWWA, Custom Drawings ANSI : ANSI B16.5, ANSI B16.47(API605), M Super Duplex Steel SP44, ANSI B16.36, ANSI B16.48 ANSI B16.5, ANSI B16.47, M Super Duplex Steel SP44, ANSI B16.36, ANSI B16.48 American standard (ANSI) German (DIN) British standard (BS) DIN: DIN 2527, DIN 2566, DIN 2573, DIN 2576, DIN 2641, DIN 2642, DIN 2655, DIN 2656, DIN 2627, DIN 2628, DIN 2629, DIN 2631, DIN 2632, DIN 2633, DIN 2634, DIN 2635, DIN 2636, DIN 2637, DIN 2638 ASTM A182 Ff52 Super Duplex Steel Flanges The other standard: AWWA C207; EN1092-1, GOST12820, JIS B2220; KS B1503, SABS1123; NFE29203; UNI2276 |
| Grades | Super Duplex Steel f55, s32750 , s32760 , f53, f52 |
Ismail Flanges, a leading supplier in Indonesia, Jakarta, offers an extensive selection of Super Duplex Steel slip on flanges, including weld neck flanges, slip-on flanges, blind flanges, threaded flanges, and lap joint flanges. Designed for diverse industrial applications, our high-quality inventory and commitment to exceptional service make us a trusted choice for flange products in the region.
Super Duplex Steel Slip On Flanges are widely utilized in critical applications that demand outstanding corrosion resistance and strength. In the oil and gas industry, they are perfect for offshore platforms, subsea pipelines, and high-pressure production systems. In the chemical and petrochemical sectors, you’ll find them in heat exchangers, pressure vessels, and equipment for processing acids. Their reliability and performance make them a go-to choice for engineers and professionals looking for durable solutions in challenging environments.
| ASME/ANSI B 16.5 | Slip on Flange |
| PRESSURE CLASS | 150, 300, 400, s32760 , 900, 1500, 2500 |
| ASME/ANSI B 16.47 | Blind Flange [Series A & B],Welding Neck Flange |
| PRESSURE CLASS | 75, 150, 300, 400, s32760 , 900 |
| ASME/ANSI B 16.36 | Slip on Flange |
| PRESSURE CLASS | 300, 400, s32760 , 900, 1500, 2500 |
| PRESSURE CLASS | PN 2.5 TO PN 40 |
| BS 4504[PART 1] | Hubbed Slip-On |
| PRESSURE CLASS | PN 2.5 TO PN 400 |
| BS 1560 BOSS | Hubbed Slip-On Hubbed Threaded |
| PRESSURE CLASS | 150, 300, 400, s32760 , 900, 1500, 2500 |
| BS10 | Plate Slip-On Flange, Slip-On Boss Flange |
| TABLE | D, E, F, H |
| DIN FLANGES | DIN 2527, 2566, 2573, 2576, 2641,2642, 2655, 2656, 2627, 2628, 2629, 2631, 2632, 2633, 2634, 2635, 2636, 2637,2638, 2673 |
| PRESSURE CLASS | PN 6 TO PN 100 |
Yes, we offer custom sizes for Super Duplex Steel Slip on Flanges to meet specific project needs. Our team at Ismail Flanges is committed to providing tailored solutions for all your requirements. For more details, contact us at sales@ismailflanges.id.
We are renowned for delivering products with precise, accurate dimensions. Each product undergoes thorough testing, both destructive and non-destructive, to ensure quality before being shipped to our customers.
Our team is ready to assist you. Contact us for any queries or personalized solutions.
