Ismail Flanges stands out as a leading manufacturer and supplier of Duplex Steel 2205 Flanges, proudly based in Jakarta, Indonesia. Known for its commitment to quality, the company delivers flanges that meet the rigorous demands of industries around the globe. The Duplex Steel 2205 Flanges are crafted to offer remarkable mechanical strength and exceptional corrosion resistance, making them perfect for tough and corrosive settings. Ismail Flanges caters to various sectors, including chemical processing, oil & gas, marine, and pulp & paper. With cutting-edge manufacturing facilities and a dedication to precision, the company provides dependable, cost-effective, and timely solutions for clients both in Indonesia and worldwide.
Duplex Steel 2205 Flanges are made up of about 22% chromium, 5–6% nickel, 3% molybdenum, and nitrogen, striking a perfect balance between austenitic and ferritic stainless steels. This unique composition ensures excellent resistance to pitting, crevice, and stress corrosion cracking. The mechanical properties boast a minimum yield strength of 450 MPa, a tensile strength of 620 MPa, and an elongation of 25%. Duplex 2205 Flanges also showcase outstanding fatigue strength and high resistance to erosion and abrasion, making them ideal for demanding industrial environments and high-pressure systems.
| Size Chart | 1/2″ (15 NB) to 48″ (1200NB) DN10~DN5000 |
|---|---|
| JIS | 5K, 10 K, 16 K 20 K, 30 K, 40 K, 63 K |
| UNI | 6Bar 10Bar 25Bar 16Bar 40Bar |
| EN | 25Bar 6Bar 10Bar 16Bar 40Bar |

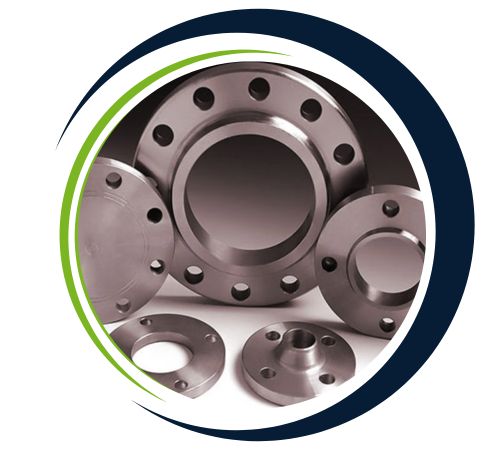

| Connect Type/ Flange Face Type | Ring Type Joint (RTJ), Raised Face (RF), Lap-Joint Face (LJF), Small Male-Female (SMF), Flat Face (FF), Large Male-Female (LMF), Small Tongue, Large Tongue & Groove, Groove |
| Uses & application |
|
| Pressure Rating ANSI | 600 LBS, 900 LBS, 150 LBS, 2500 LBS, 300 LBS, 1500 LBS |
| Pressure Calculation in DIN | 16Bar 6Bar 25Bar 40Bar 10Bar / PN10 PN16 PN6 PN25 PN64 PN40 |
| Test Certificates | EN 10204/3.1B Raw Materials Certificate 100% Radiography Test Report Third Party Inspection Report, etc |
| Coating | Zinc Plated,Oil Black Paint, Cold and Hot Dip Galvanized, Anti-rust Paint, Yellow Transparent |
| Most common types | Threaded / Screwed / Forged / Plate |
| Equipment | Pushing Machine, Press machine, electric bevelling machine, Bending machine, Sand-blasting machine etc |
| Origin | West Europe / Japan / Indian / USA / Korean |
| Test | Direct-reading Spectrograph, UI trasonic flaw detector, Hydrostatic testing machine, X-ray detector, Magnetic particle detector |
| Standards | API605, ANSI/ASME B16.5, B16.47 Series A & B, B16.48, ASME Flanges, API7S-15, API7S-43, BS Flanges, DIN Flanges, EN Flanges, BS4504, BS 10, EN-1092, DIN, ANSI Flanges, GOST Flange, ASME/ANSI B16.5/16.36/16.47A/16.47B, MSS S44, ISO70051, JISB2220, BS1560-3.1, EN1092 |
| Export to | Dubai, Singapore, Indonesia, Ukraine, Korea, Iran, India, Saudi Arabia, Thailand, Egypt, Oman, Spain, Canada, USA, Ireland, Brazil, Peru, etc |
| Special design | As per your drawing AS, ANSI, BS, DIN and JIS 15 NB (1/2″) to 200 NB (8″) Equal and Reducing Configurations |

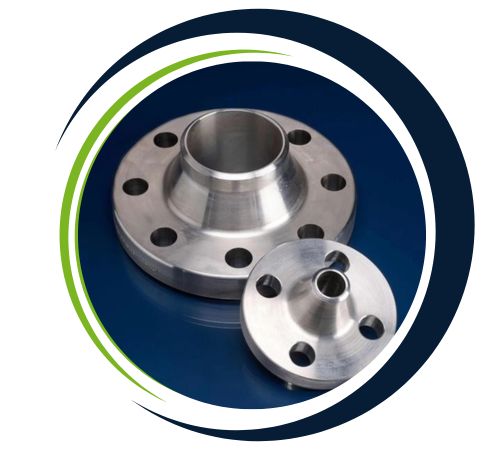

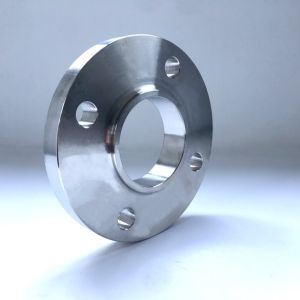

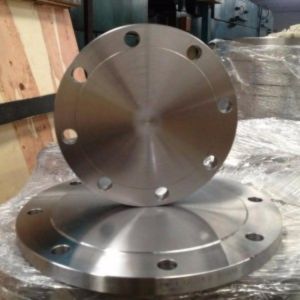

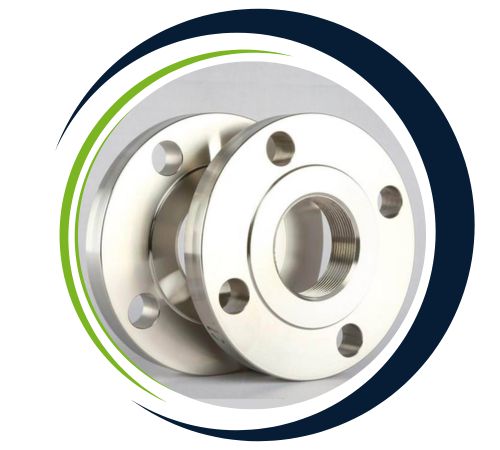

Ismail Flanges, a leading supplier in Indonesia, Jakarta, offers an extensive selection of Duplex Steel Flanges 2205, including weld neck flanges, slip-on flanges, blind flanges, threaded flanges, and lap joint flanges. Designed for diverse industrial applications, our high-quality inventory and commitment to exceptional service make us a trusted choice for flange products in the region.

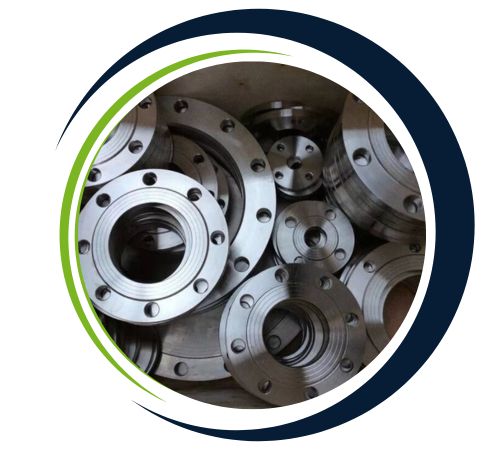

Duplex Steel 2205 Flanges find extensive use in industries that require top-notch corrosion resistance and high mechanical strength. They are commonly utilized in offshore oil & gas platforms, chemical processing facilities, desalination plants, and marine environments where chloride stress corrosion cracking poses a risk. These flanges are perfect for pipelines transporting corrosive substances, heat exchangers, pressure vessels, and structural components in challenging conditions. Ismail Flanges provides a variety of Duplex 2205 Flanges, including weld neck, slip-on, blind, and socket weld types, to cater to diverse operational needs, ensuring longevity and reduced maintenance.
| C | N | P | Si | Mn | Mo | Fe | Cr | S | Ni |
| 1.0 | 0.03 | 0.02 | 2.0 | 3.0 – 3.5 | 22.0 – 23.0 | 0.03 | 4.5 – 6.5 | 0.14 – 0.2 | Bal |
| Grade | Density (kg/m3) | Elastic Modulus (GPa) | Mean Co-eff of Thermal Expansion (μm/m/°C) | Thermal Conductivity (W/m.K) | Specific Heat 0-100°C ( J/kg.K) | Electrical Resistivity (nΩ.m) | |||
| 0-100°C | 0-315°C | 0-538°C | at 100°C | at 500°C | |||||
| 2205 | 782 | 190 | 13.7 | 14.2 | – | 19 | – | 418 | 850 |
| Density | Melting Point | Yield Strength (0.2%Offset) | Tensile Strength | Elongation |
| 7.8 g/cm3 | 1350 °C (2460 °F) | Psi – 80000 , MPa – 550 | Psi – 116000 , MPa – 800 | 15 % |
Yes, we offer custom sizes for Duplex Steel Flanges 2205 to meet specific project needs. Our team at Ismail Flanges is committed to providing tailored solutions for all your requirements. For more details, contact us at sales@ismailflanges.id.
We are renowned for delivering products with precise, accurate dimensions. Each product undergoes thorough testing, both destructive and non-destructive, to ensure quality before being shipped to our customers.
Our team is ready to assist you. Contact us for any queries or personalized solutions.
