Ismail Flanges, located in Jakarta, Indonesia, stands out as a top manufacturer and supplier of Duplex Steel Flanges crafted from UNS S32205. These flanges are celebrated for their remarkable strength, resistance to corrosion, and long-lasting durability. They’re specifically designed to cater to the demands of high-performance piping systems, even in tough environments. UNS S32205, also referred to as ASTM A182 F60, is a popular duplex stainless steel grade that boasts excellent mechanical properties and a strong resistance to stress corrosion cracking. Our flanges are perfect for critical applications across various industries, including oil & gas, petrochemical, marine, power generation, and chemical processing. At Ismail Flanges, we pride ourselves on delivering top-notch products that adhere to global engineering standards.
Duplex Steel Flanges (UNS S32205) are made up of about 22% chromium, 5–6.5% nickel, 3–3.5% molybdenum, and 0.14–0.20% nitrogen, resulting in a well-balanced microstructure of ferrite and austenite. This unique composition grants them impressive tensile strength (620–850 MPa), yield strength (≥450 MPa), and outstanding resistance to chloride stress corrosion cracking, pitting, and crevice corrosion. The duplex structure also enhances fatigue strength and impact toughness. S32205 flanges are particularly well-suited for harsh environments, merging the corrosion resistance of stainless steel with nearly double the strength of traditional austenitic grades like 316L.
| Specification | ASTM A182 / ASME SA182 |
|---|---|
| Size Chart | 1/2″ (15 NB) to 48″ (1200NB) DN10~DN5000 |
| Standards | ANSI/ASME B16.5, B16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, GOST Flange, ASME/ANSI B16.5/16.36/16.47A/16.47B, MSS S44, ISO70051, JISB2220, BS1560-3.1, API7S-15, API7S-43, API605, EN1092 |
| Pressure Rating ANSI | Class 150 LBS, 300 LBS, 600 LBS, 900 LBS, 1500 LBS, 2500 LBS |
| Pressure Calculation in DIN | 6Bar 10Bar 16Bar 25Bar 40Bar / PN6 PN10 PN16 PN25 PN40, PN64 |
| UNI | 6Bar 10Bar 16Bar 25Bar 40Bar |
| EN | 6Bar 10Bar 16Bar 25Bar 40Bar |
| Coating | Oil Black Paint, Anti-rust Paint, Zinc Plated, Yellow Transparent, Cold and Hot Dip Galvanized |
| Test Certificates | EN 10204/3.1B Raw Materials Certificate 100% Radiography Test Report Third Party Inspection Report, etc |
| Production Technique | Forged, Heat treated and machined |
| Connect Type/ Flange Face Type | Raised Face (RF), Ring Type Joint (RTJ), Flat Face (FF), Large Male-Female (LMF), Lap-Joint Face (LJF), Small Male-Female (SMF), Small Tongue, Large Tongue & Groove, Groove |
| Special design | As per your drawing AS, ANSI, BS, DIN and JIS 15 NB (1/2″) to 200 NB (8″) Equal and Reducing Configurations |
| Test | Direct-reading Spectrograph, Hydrostatic testing machine, X-ray detector, UI trasonic flaw detector, Magnetic particle detector |
| Equipment | Press machine, Bending machine, Pushing Machine, electric bevelling machine, Sand-blasting machine etc |
| Manufacturer of | ANSI DIN, GOST, JIS, UNI, BS, AS2129, AWWA, EN, SABS, NFE etc. BS Flange, EN Flange, API 6A Flange, ANSI Flange, ASME Flange, DIN Flange, EN1092-1 Flange, UNI Flange, JIS/ KS Flange, BS4504 Flange, GB Flange, AWWA C207 Flange, GOST Flange, PSI Flange B.S: BS4504 , BS3293, BS1560, BS10 AS 2129: Table D; Table E; Table H ANSI B16.5, ANSI B16.47 Series A & B, MSS SP44, ASA, API-605, AWWA, Custom Drawings ANSI : ANSI B16.5, ANSI B16.47(API605), MSS SP44, ANSI B16.36, ANSI B16.48 ANSI B16.5, ANSI B16.47, MSS SP44, ANSI B16.36, ANSI B16.48 American standard (ANSI) German (DIN) British standard (BS) DIN: DIN 2527, DIN 2566, DIN 2573, DIN 2576, DIN 2641, DIN 2642, DIN 2655, DIN 2656, DIN 2627, DIN 2628, DIN 2629, DIN 2631, DIN 2632, DIN 2633, DIN 2634, DIN 2635, DIN 2636, DIN 2637, DIN 2638 The other standard: AWWA C207; EN1092-1, GOST12820, JIS B2220; KS B1503, SABS1123; NFE29203; UNI2276 |
| Material Test Certificates (MTC) as per EN 10204 3.1 and EN 10204 3.2, Test Certificates certifying NACE MR0103, NACE MR0175 | |

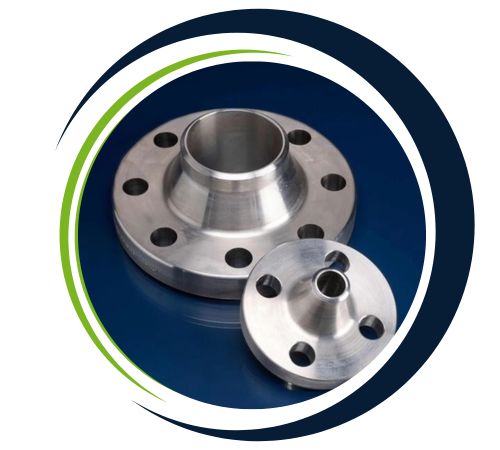

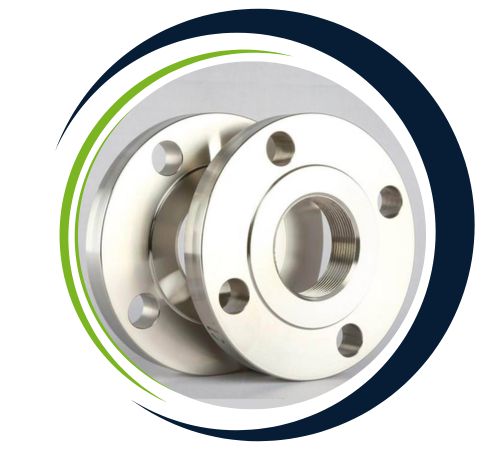

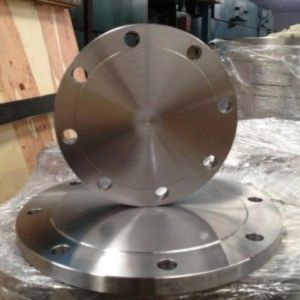

Ismail Flanges, a leading supplier in Indonesia, Jakarta, offers an extensive selection of Duplex Steel Flanges S32205, including weld neck flanges, slip-on flanges, blind flanges, threaded flanges, and lap joint flanges. Designed for diverse industrial applications, our high-quality inventory and commitment to exceptional service make us a trusted choice for flange products in the region.
Duplex Steel Flanges (S32205) are widely utilized in high-pressure, high-temperature, and corrosive settings thanks to their strength and chemical resistance. You’ll often find them in offshore oil rigs, desalination plants, petrochemical refineries, marine systems, power stations, and chemical process piping. These flanges are perfect for applications like heat exchangers, pressure vessels, seawater cooling lines, and other systems that face chloride and acidic conditions. Their combination of high mechanical strength and excellent corrosion resistance makes them a go-to choice for demanding environments.
| STANDARD | UNS | WERKSTOFF NR. |
| Duplex Steel S32205 | s32205 | 1.4462 |
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N | Fe |
| Duplex S32205 | 0.030 max | 2 max | 1 max | 0.030 max | 0.020 max | 21 – 23 | 2.50 – 3.50 | 4.50 – 6.50 | 0.8 – 0.20 | Bal |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 7.8 g/cm3 | 1350 °C (2460 °F) | Psi – 116000 , MPa – 800 | Psi – 80000 , MPa – 550 | 15 % |
Yes, we offer custom sizes for Duplex Steel Flanges S32205 to meet specific project needs. Our team at Ismail Flanges is committed to providing tailored solutions for all your requirements. For more details, contact us at sales@ismailflanges.id.
We are renowned for delivering products with precise, accurate dimensions. Each product undergoes thorough testing, both destructive and non-destructive, to ensure quality before being shipped to our customers.
Our team is ready to assist you. Contact us for any queries or personalized solutions.
