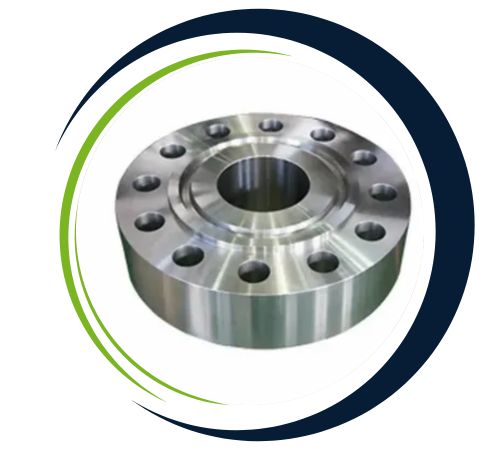

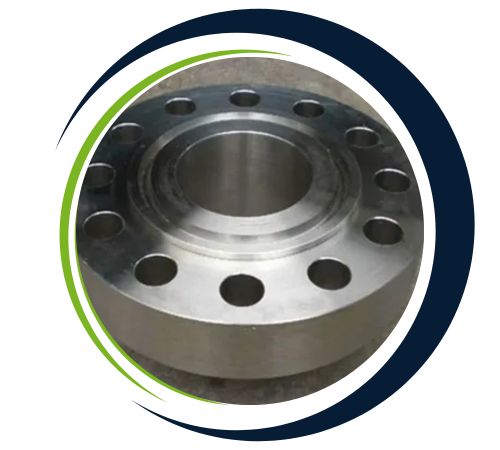

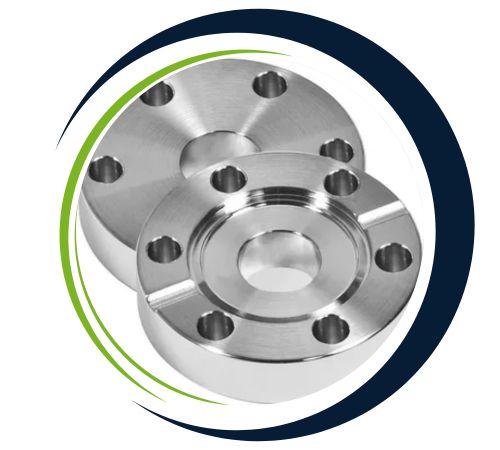

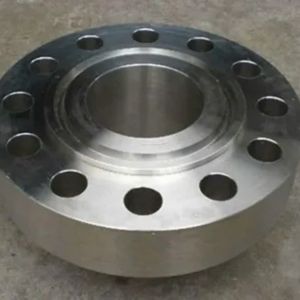

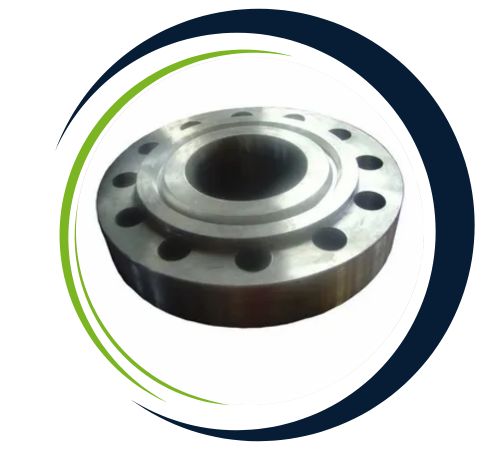

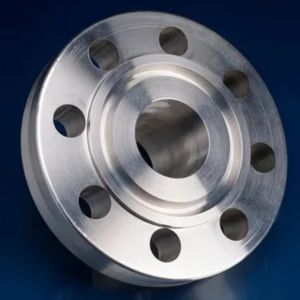

Ismail Flanges is a reliable manufacturer and supplier in Jakarta and Rotherham with a reputation for producing high-performance Titanium Ring Type Joint (RTJ) Flanges to the global marketplace. With an emphasis on quality, accuracy, and reliability, the company supplies industries with high demands for operations, including oil and gas, marine engineering, and chemical processing. Engineered for better sealing in harsh pressure and temperature conditions, flanges provide leak-proof operation even in the toughest conditions. Dedicated to industry compliance and engineering superiority, Ismail Flanges is a trusted provider of corrosion-resistant, long-lasting flange solutions for demanding applications.
Ismail Flanges‘ Titanium RTJ Flanges are mostly made of Ti-6Al-4V, a high-performance titanium alloy that is renowned for its superior strength-to-weight ratio, corrosion resistance, and mechanical integrity. These flanges possess superior tensile strength, high fatigue resistance, and weldability—making them ideal for complex assemblies. Lightness of titanium coupled with its immunity to aggressive chemicals such as seawater, acids, and chlorides provides long-term reliability. Suitable for high-pressure and high-temperature conditions, Titanium RTJ flanges provide safe, leak-tight connections, particularly in areas where low-maintenance and high-strength structures are needed.
| Specification | ASTM B381 / ASME SB381 |
|---|---|
| Size Chart | 1/2″ (15 NB) to 48″ (1200NB) DN10~DN5000 |
| Standards | ANSI/ASME B16.5, B16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, GOST Flange, ASME/ANSI B16.5/16.36/16.47A/16.47B, MSS S44, ISO70051, JISB2220, BS1560-3.1, API7S-15, API7S-43, API605, EN1092 |
| Pressure Rating ANSI | Class 150 LBS, 300 LBS, 600 LBS, 900 LBS, 1500 LBS, 2500 LBS |
| Pressure Calculation in DIN | 6Bar 10Bar 16Bar 25Bar 40Bar / PN6 PN10 PN16 PN25 PN40, PN64 |
| UNI | 6Bar 10Bar 16Bar 25Bar 40Bar |
| EN | 6Bar 10Bar 16Bar 25Bar 40Bar |
| Coating | Oil Black Paint, Anti-rust Paint, Zinc Plated, Yellow Transparent, Cold and Hot Dip Galvanized |
| Test Certificates | EN 10204/3.1B Raw Materials Certificate 100% Radiography Test Report Third Party Inspection Report, etc |
| Production Technique | Forged, Heat treated and machined |
| Connect Type/ Flange Face Type | Ring Type Joint (RTJ), Large Male-Female (LMF), Lap-Joint Face (LJF), Small Male-Female (SMF), Small Tongue, Large Tongue & Groove, Groove |
| Special design | As per your drawing AS, ANSI, BS, DIN and JIS |
| Test | Direct-reading Spectrograph, Hydrostatic testing machine, Gr.5-ray detector, UI trasonic flaw detector, Magnetic particle detector |
| Equipment | Press machine, Bending machine, Pushing Machine, electric bevelling machine, Sand-blasting machine etc |
| Manufacturer of | ANSI DIN, GOST, JIS, UNI, BS, AS2129, AWWA, EN, SABS, NFE etc. BS Flange, EN Flange, API 6A Flange, ANSI Flange, ASME Flange, DIN Flange, EN1092-1 Flange, UNI Flange, JIS/ KS Flange, BS4504 Flange, GB Flange, AWWA C207 Flange, GOST Flange, PSI Flange B.S: BS4504 , BS3293, BS1560, BS10 DIN: DIN 2527, DIN 2566, DIN 2573, DIN 2576, DIN 2641, DIN 2642, DIN 2655, DIN 2656, DIN 2627, DIN 2628, DIN 2629, DIN 2631, DIN 2632, DIN 2633, DIN 2634, DIN 2635, DIN 2636, DIN 2637, DIN 2638 ASTM B381 F316 Titanium Flanges |
| Grades | Titanium Gr.2, Gr.5 |
| Material Test Certificates (MTC) as per EN 10204 3.1 and EN 10204 3.2, Test Certificates certifying NACE MR0103, NACE MR0175 | |
Titanium Ring Type Joint Flanges are extensively applied in oil and gas pipelines, chemical processing facilities, marine conditions, and aerospace applications because of their outstanding sealing efficiency and resistance to corrosion. These flanges are designed to withstand high temperature, high pressure, and corrosive conditions and offer long-lasting leak-free connections in vital pipeline and vessel systems. Comes in different forms including weld neck, slip-on, blind, threaded, and lap joint configurations, Ismail Flanges guarantees flexibility and reliability across use. Its lightweight design and strength ensure that it is perfectly suited for both static and dynamic applications where longevity and safety are central to performance.
Titanium RTJ Ring Type Joint flanges are used in harsh industries where they need to have high strength, lightness, and excellent corrosion resistance. Some of the typical applications are the aerospace, marine, chemical, petrochemical, and oil and gas industries. Titanium RTJ Ring Type Joint flanges are ideal for high-temperature and high-pressure conditions, ensuring uniform sealing in equipment and pipelines. Due to titanium’s resistance to corrosion especially in seawater, chemical reactors, and high-temperature conditions, the flanges are used in offshore platforms, refineries, and desalination plants. Even in systems processing hostile chemicals also titanium RTJ flanges are essential since stainless steel or carbon steel would collapse there.
| ASME/ANSI B 16.5 | RTJ Flange |
| PRESSURE CLASS | 150, 300, 400, 600, 900, 1500, 2500 |
| ASME/ANSI B 16.47 | RTJ Flange [Series A & B],Welding Neck Flange |
| PRESSURE CLASS | 75, 150, 300, 400, 600, 900 |
| ASME/ANSI B 16.36 | RTJ Flange |
| PRESSURE CLASS | 300, 400, 600, 900, 1500, 2500 |
| PRESSURE CLASS | PN 2.5 TO PN 40 |
| BS 4504[PART 1] | Hubbed Slip-On |
| PRESSURE CLASS | PN 2.5 TO PN 400 |
| BS 1560 BOSS | Hubbed Slip-On Hubbed Threaded |
| PRESSURE CLASS | 150, 300, 400, 600, 900, 1500, 2500 |
| BS10 | Plate Slip-On Flange, Slip-On Boss Flange |
| TABLE | D, E, F, H |
| DIN FLANGES | DIN 2527, 2566, 2573, 2576, 2641,2642, 2655, 2656, 2627, 2628, 2629, 2631, 2632, 2633, 2634, 2635, 2636, 2637,2638, 2673 |
| PRESSURE CLASS | PN 6 TO PN 100 |
Yes, we offer custom sizes for Titanium RTJ Flanges to meet specific project needs. Our team at Ismail Flanges is committed to providing tailored solutions for all your requirements. For more details, contact us at sales@ismailflanges.id.
We are renowned for delivering products with precise, accurate dimensions. Each product undergoes thorough testing, both destructive and non-destructive, to ensure quality before being shipped to our customers.
Our team is ready to assist you. Contact us for any queries or personalized solutions.
