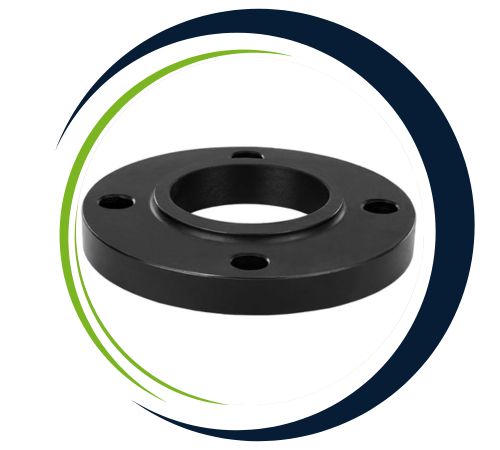

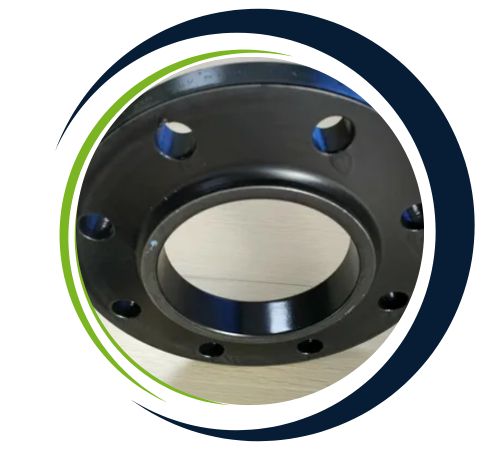

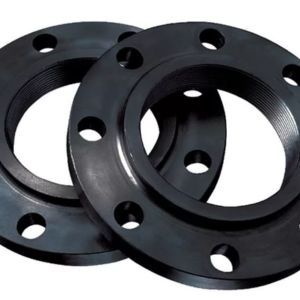

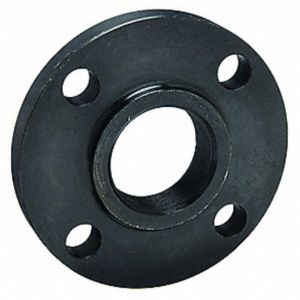

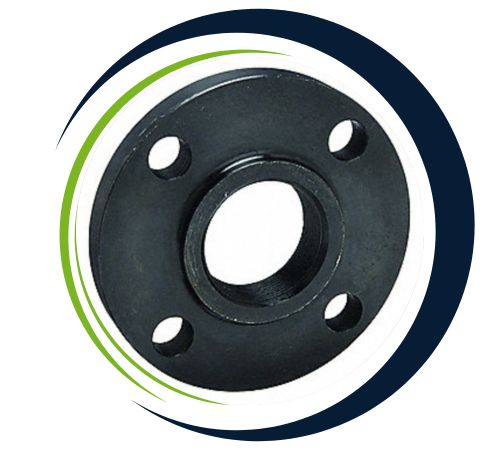

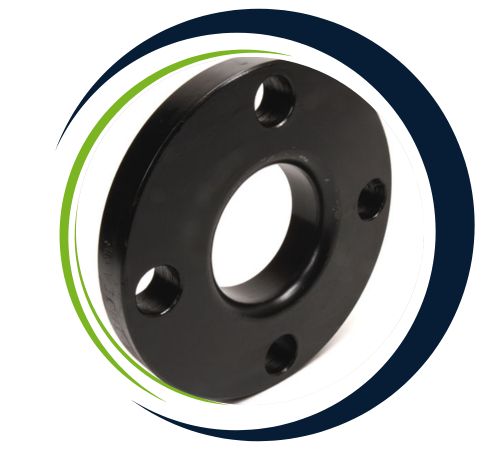

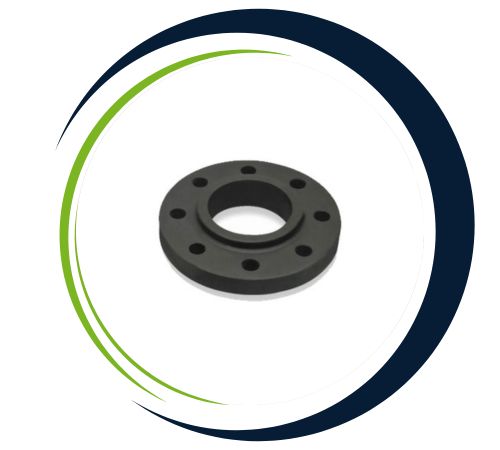

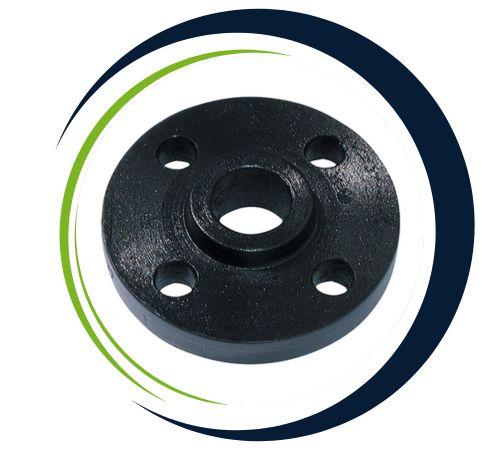

Ismail Flanges is a prominent manufacturer and exporter of Carbon Steel Slip On Flanges based in Jakarta, Indonesia. Our slip on flanges are easy to install and best suit low-pressure applications demanding moderate strength. Made of long-lasting carbon steel, they can be used in most industries such as oil & gas, water treatment, HVAC, and industrial piping. Flanges are produced to ASME, ANSI, and DIN specifications and come in different sizes and pressure classes. Ismail Flanges promises accuracy, reliability, and value for money in all the flanges we ship.
Carbon Steel Slip On Flanges are produced using carbon steel alloys having 0.1–0.3% carbon along with manganese and sulfur elements. The general mechanical properties are tensile strength of 485–620 MPa and yield strength of 250–415 MPa (ASTM A105). They have good ductility and perfect weldability. They function satisfactorily between -29°C and 425°C. It permits welding on inner and outer surfaces, which gives leak resistance and structural reinforcement, particularly in moderate-pressure pipelines.
| Specification | ASTM A694 / ASME SA105 |
|---|---|
| Size Chart | 1/2″ (15 NB) to 48″ (1200NB) DN10~DN5000 |
| Standards | ANSI/ASME B16.5, B16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, GOST Flange, ASME/ANSI B16.5/16.36/16.47A/16.47B, MCarbon S44, ISO70051, JISB2220, BS1560-3.1, API7S-15, API7S-43, API605, EN1092 |
| PRESSURE Rating ANSI | Class 150 LBS, 300 LBS, a105 LBS, 900 LBS, 1500 LBS, 2500 LBS |
| PRESSURE Calculation in DIN | 6Bar 10Bar 16Bar 25Bar 40Bar / PN6 PN10 PN16 PN25 PN40, PN64 |
| UNI | 6Bar 10Bar 16Bar 25Bar 40Bar |
| EN | 6Bar 10Bar 16Bar 25Bar 40Bar |
| Coating | Oil Black Paint, Anti-rust Paint, Zinc Plated, Yellow Transparent, Cold and Hot Dip Galvanized |
| Test Certificates | EN 10204/3.1B Raw Materials Certificate 100% Radiography Test Report Third Party Inspection Report, etc |
| Production Technique | Forged, Heat treated and machined |
| Connect Type/ Flange Face Type | Raised Face (RF), Ring Type Joint (RTJ), Flat Face (FF), Large Male-Female (LMF), Lap-Joint Face (LJF), Small Male-Female (SMF), Small Tongue, Large Tongue & Groove, Groove |
| Special design | As per your drawing AS, ANSI, BS, DIN and JIS |
| Test | Direct-reading Spectrograph, Hydrostatic testing machine, X-ray detector, UI trasonic flaw detector, Magnetic particle detector |
| Equipment | Precarbon-steel machine, Bending machine, Pushing Machine, electric bevelling machine, Sand-blasting machine etc |
| Manufacturer of | ANSI DIN, GOST, JIS, UNI, BS, AS2129, AWWA, EN, SABS, NFE etc. BS Flange, EN Flange, API 6A Flange, ANSI Flange, ASME Flange, DIN Flange, EN1092-1 Flange, UNI Flange, JIS/ KS Flange, BS4504 Flange, GB Flange, AWWA C207 Flange, GOST Flange, PSI Flange B.S: BS4504 , BS3293, BS1560, BS10 DIN: DIN 2527, DIN 2566, DIN 2573, DIN 2576, DIN 2641, DIN 2642, DIN 2655, DIN 2656, DIN 2627, DIN 2628, DIN 2629, DIN 2631, DIN 2632, DIN 2633, DIN 2634, DIN 2635, DIN 2636, DIN 2637, DIN 2638 ASTM A694 Lf2 Carbon Steel Flanges |
| Grades | Carbon Steel a105, Lf2, f42, f52, f56, f60, f65, f70, f80, A36, IS2062 |
| Material Test Certificates (MTC) as per EN 10204 3.1 and EN 10204 3.2, Test Certificates certifying NACE MR0103, NACE MR0175 | |
Ismail Flanges, a leading supplier in Indonesia, Jakarta, offers an extensive selection of Carbon Steel Slip On Flanges, including weld neck flanges, slip-on flanges, blind flanges, threaded flanges, and lap joint flanges. Designed for diverse industrial applications, our high-quality inventory and commitment to exceptional service make us a trusted choice for flange products in the region.
Carbon Steel Slip On Flanges are extensively used in systems where maintenance, inspection, or reconfiguration has to be done very frequently. They are suitable for oil & gas piping and fire protection systems at low to moderate pressures and cooling water lines. Their simplicity of installation and alignment also makes them favorable for use in large-diameter pipes. Carbon steel slip on flanges are also used in shipbuilding, food processing, and mechanical engineering. Provided that the welding and sealing are correct, carbon steel slip on flanges provide secure, leak-free joints, particularly in non-critical applications where ease of installation and cost-friendliness are essential.
| ASME/ANSI B 16.5 | Slip on Flange |
| PRESSURE CLASS | 150, 300, a105, a105, 900, 1500, 2500 |
| ASME/ANSI B 16.47 | Blind Flange [Series A & B],Welding Neck Flange |
| PRESSURE CLASS | 75, 150, 300, a105, a105, 900 |
| ASME/ANSI B 16.36 | Slip on Flange |
| PRESSURE CLASS | 300, a105, a105, 900, 1500, 2500 |
| PRESSURE CLASS | PN 2.5 TO PN 40 |
| BS 4504[PART 1] | Hubbed Slip-On |
| PRESSURE CLASS | PN 2.5 TO PN a105 |
| BS 1560 BOCarbon | Hubbed Slip-On Hubbed Threaded |
| PRESSURE CLASS | 150, 300, a105, a105, 900, 1500, 2500 |
| BS10 | Plate Slip-On Flange, Slip-On Bocarbon-steel Flange |
| TABLE | D, E, F, H |
| DIN FLANGES | DIN 2527, 2566, 2573, 2576, 2641,2642, 2655, 2656, 2627, 2628, 2629, 2631, 2632, 2633, 2634, 2635, 2636, 2637,2638, 2673 |
| PRESSURE CLASS | PN 6 TO PN 100 |
Yes, we offer custom sizes for Carbon Steel Slip On Flanges to meet specific project needs. Our team at Ismail Flanges is committed to providing tailored solutions for all your requirements. For more details, contact us at sales@ismailflanges.id.
We are renowned for delivering products with precise, accurate dimensions. Each product undergoes thorough testing, both destructive and non-destructive, to ensure quality before being shipped to our customers.
Our team is ready to assist you. Contact us for any queries or personalized solutions.
