Ismail Flanges, located in Jakarta, Indonesia, is a reliable manufacturer and supplier of high-performance industrial flanges tailored for pressure systems and high-temperature applications. Our P250GH Flanges are crafted from EN 10222-2 certified pressure vessel steel, making them perfect for seamless integration into boiler systems, pressure vessels, and heat exchangers. These flanges boast exceptional weldability, strength, and resistance to high-temperature stress. At Ismail Flanges, we ensure that every P250GH flange is produced to meet international standards like EN 1092-1, guaranteeing dependable performance for power plants, refineries, petrochemical facilities, and high-pressure piping systems across various industrial sectors.
P250GH Flanges are constructed from non-alloy quality steel, featuring a typical composition of carbon (≤0.20%), manganese (0.80–1.50%), silicon (≤0.40%), phosphorus (≤0.025%), and sulfur (≤0.015%). These flanges provide a minimum yield strength of 250 MPa, tensile strength ranging from 410 to 530 MPa, and an elongation of ≥24%, ensuring excellent formability and mechanical integrity. P250GH also demonstrates reliable creep resistance, impact strength, and weldability, making it suitable for high-pressure and high-temperature conditions in the energy and chemical processing industries.

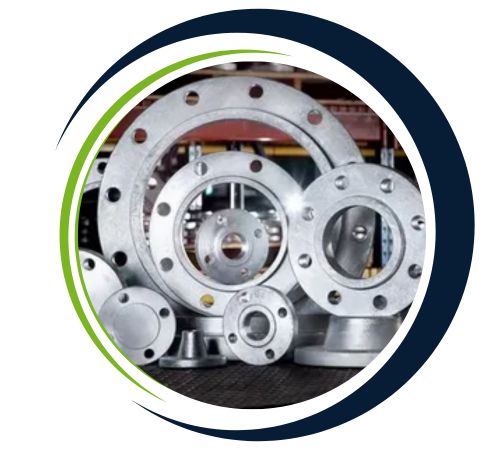

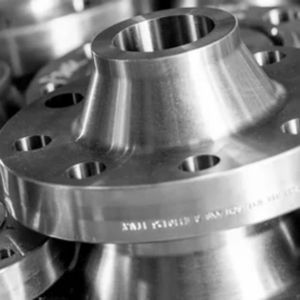

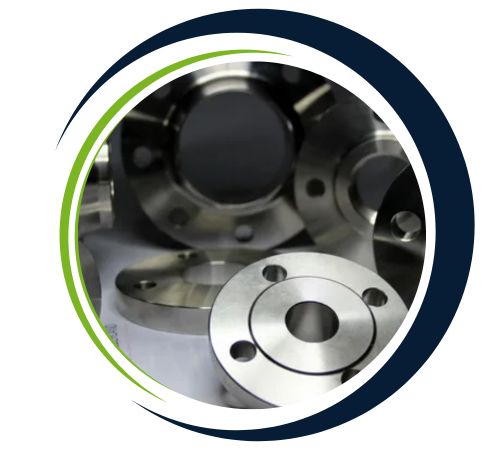

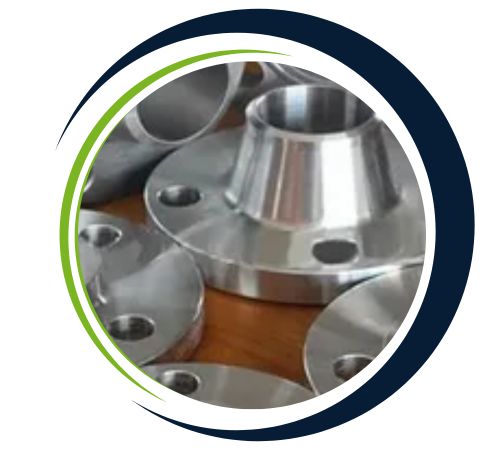

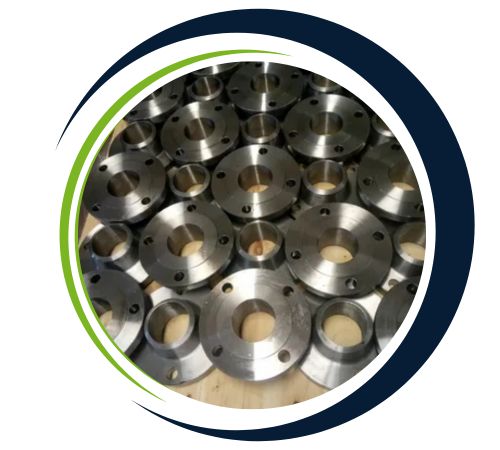

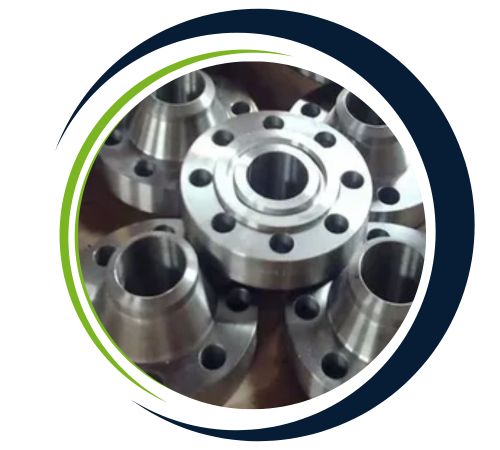

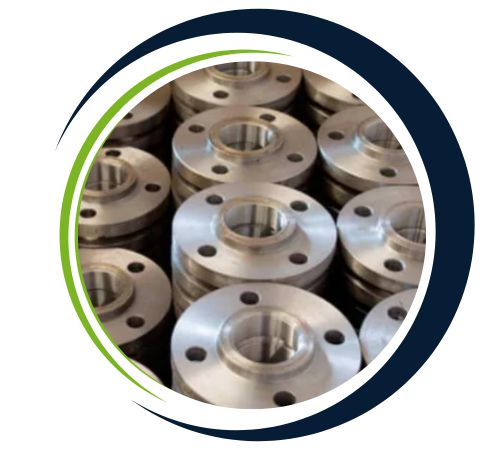

Ismail Flanges, a leading supplier in Indonesia, Jakarta, offers an extensive selection of P250gh Flange, including weld neck flanges, slip-on flanges, blind flanges, threaded flanges, and lap joint flanges. Designed for diverse industrial applications, our high-quality inventory and commitment to exceptional service make us a trusted choice for flange products in the region.
| Size Chart | 1/2 inch (15 Nominal Bore) to 48 Inch (1200 Nominal Bore) |
|---|---|
| Pressure Rating ANSI | Class 600, 900, 150, 2500, 300, 1500 LBS |
| Pressure Calculation in DIN | 16, 6, 25, 40, 10 Bar / PN10 PN16 PN6 PN25 PN64 PN40 |
| JIS Standards | 5, 10, 16 20, 30, 40, 63 K |
| UNI Standards | 6, 10, 16, 25, 40 Bar |
| EN Standards | 6, 10, 16, 25, 40 Bar |
| Coating | Cold and Hot Dip Galvanized, Anti-rust Paint, Zinc Plated,Oil Black Paint, Yellow Transparent |
| Most common types | Screwed, Forged, Threaded, Plate |
| Test Certificates | EN 10204/3.1B Raw Materials Certificate Third Party Inspection Report , 100% Radiography Test Report etc |
| Production technique | Forged, Heat treated and machined |
| Flange Face Type | Small Tongue, Lap-Joint Face, Raised Face, Ring Type Joint, Flat Face, Large Male-Female, Small Male-Female, Large Tongue & Groove Flanges manufacturer and Supplier |
| Flanges Marking | All Flanges are marked as follows: Supplier or Manufacturer’s Name, Size, Class, Bore, Dimension, Material, Heat No. Or according to the customer’s request. |
| Test | Hydrostatic testing machine, X-ray detector, UI trasonic flaw detector, Direct-reading Spectrograph, Magnetic particle detector |
| Equipment | Bending machine, Sand-blasting machine, Pushing Machine,Press machine, electric bevelling machine etc |
| Carbon | Silicon | Manganese | Nickel | Phosphorus | Sulfur | Chromium | Vanadium | niobium | Titanium | Aluminum | – |
| 0.18 – 0.23 | max 0.4 | 0.3 – 0.9 | max 0.3 | max 0.025 | max 0.015 | max 0.3 | max 0.02 | max 0.01 | max 0.03 | 0.015 – 0.05 | Cr+Cu+Mo+Ni < 0.7 |
| Nominal thickness (mm): | to 150 | ||
| Rm – Tensile strength (MPa) (+N) | 410-540 | ||
| Nominal thickness (mm): | to 50 | 50 – 100 | 100 – 150 |
| ReH – Minimum yield strength (MPa) (+N) | 250 | 240 | 230 |
| KV – Impact energy (J) longitud., | +20° 47 | ||
| Nominal thickness (mm): | to 150 | ||
| A – Min. elongation at fracture (%) (+N) | 25 |
P250GH Flanges find extensive use in power generation, oil & gas, petrochemical, and industrial boiler systems, where resistance to elevated temperatures and high pressures is crucial. These flanges are commonly found in pressure vessels, steam lines, heat exchangers, and thermal fluid systems. Thanks to their outstanding weldability and structural integrity, they are also utilized in pipeline construction, refineries, and chemical processing plants. Their mechanical properties and material stability under heat and pressure make them ideal for applications governed by EN 10216 and EN 1092-1 standards, ensuring safe operation in demanding environments.
Yes, we offer custom sizes for P250gh Flange to meet specific project needs. Our team at Ismail Flanges is committed to providing tailored solutions for all your requirements. For more details, contact us at sales@ismailflanges.id.
We are renowned for delivering products with precise, accurate dimensions. Each product undergoes thorough testing, both destructive and non-destructive, to ensure quality before being shipped to our customers.
Our team is ready to assist you. Contact us for any queries or personalized solutions.
