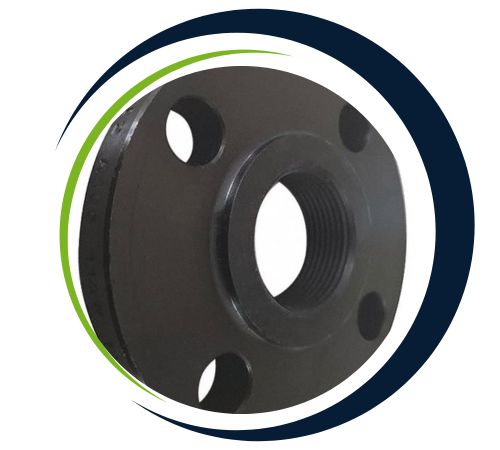

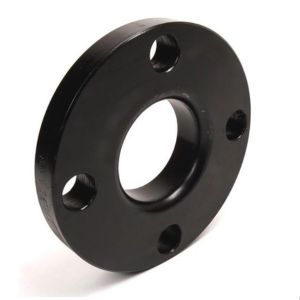

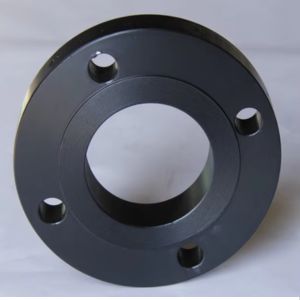

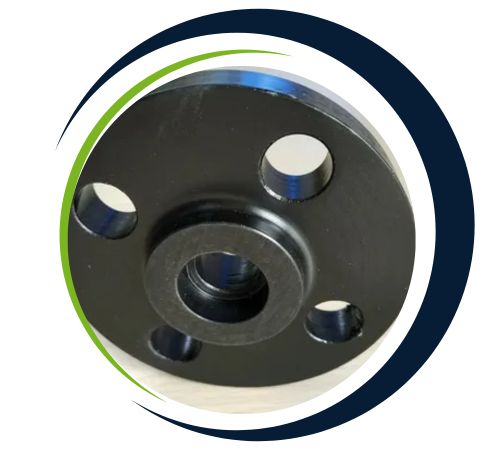

Ismail Flanges stands out as a top manufacturer and supplier of Carbon Steel Threaded Flanges, proudly based in Jakarta, Indonesia. These flanges are expertly engineered for ease of use and exceptional performance, allowing for piping connections without the need for welding. This feature makes them perfect for situations where heat input should be minimized. Ismail Flanges offers a diverse selection of threaded flanges in various sizes, pressure classes, and face types, all designed to meet ASME, ANSI, and other international standards. With cutting-edge machining, rigorous quality control, and quick delivery options, the company provides dependable products that industries around the globe trust.
Typically, Carbon Steel Threaded Flanges are made from fully killed carbon steel grades like ASTM A105. These flanges are primarily composed of iron, with carefully controlled amounts of carbon (up to about 0.30%), manganese, silicon, and trace elements. They boast mechanical properties such as tensile strength ranging from 485 to 620 MPa and yield strength around 250 MPa. The material is known for its good ductility, machinability, and toughness, ensuring reliable sealing and structural integrity. Designed for moderate pressure and temperature applications, Carbon Steel Threaded Flanges deliver long-lasting performance in general-purpose piping systems.
| Specification | ASTM A694 / ASME SA694 |
|---|---|
| Size Chart | 1/2″ (15 NB) to 48″ (1200NB) DN10~DN5000 |

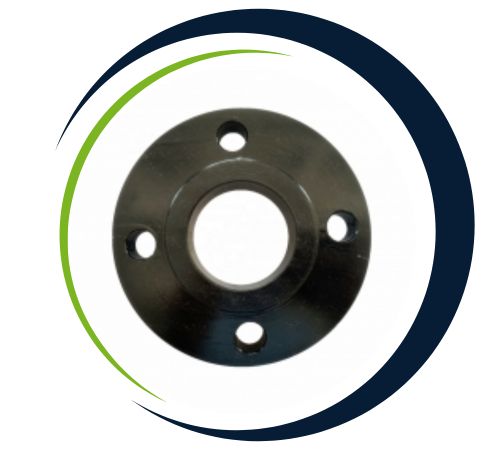

| Standards | ANSI/ASME B16.5, B16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, GOST Flange, ASME/ANSI B16.5/16.36/16.47A/16.47B, MCarbon Steel S44, ISO70051, JISB2220, BS1560-3.1, API7S-15, API7S-43, API605, EN1092 |

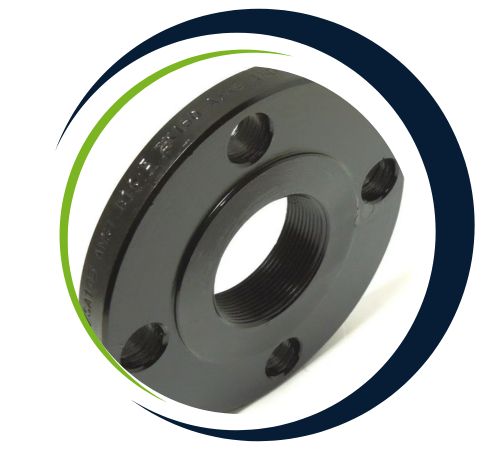

| Pressure Rating ANSI | Class 150 LBS, 300 LBS, 600 LBS, 900 LBS, 1500 LBS, 2500 LBS |
| Pressure Calculation in DIN | 6Bar 10Bar 16Bar 25Bar 40Bar / PN6 PN10 PN16 PN25 PN40, PN64 |
| UNI | 6Bar 10Bar 16Bar 25Bar 40Bar |
| EN | 6Bar 10Bar 16Bar 25Bar 40Bar |
| Coating | Oil Black Paint, Anti-rust Paint, Zinc Plated, Yellow Transparent, Cold and Hot Dip Galvanized |
| Test Certificates | EN 10204/3.1B Raw Materials Certificate 100% Radiography Test Report Third Party Inspection Report, etc |
| Production Technique | Forged, Heat treated and machined |
| Connect Type/ Flange Face Type | Raised Face (RF), Ring Type Joint (RTJ), Flat Face (FF), Large Male-Female (LMF), Lap-Joint Face (LJF), Small Male-Female (SMF), Small Tongue, Large Tongue & Groove, Groove |
| Special design | As per your drawing AS, ANSI, BS, DIN and JIS 15 NB (1/2″) to 200 NB (8″) Equal and Reducing Configurations |
| Test | Direct-reading Spectrograph, Hydrostatic testing machine, X-ray detector, UI trasonic flaw detector, Magnetic particle detector |
| Equipment | Press machine, Bending machine, Pushing Machine, electric bevelling machine, Sand-blasting machine etc |
| Manufacturer of | ANSI DIN, GOST, JIS, UNI, BS, AS2129, AWWA, EN, SABS, NFE etc. BS Flange, EN Flange, API 6A Flange, ANSI Flange, ASME Flange, DIN Flange, EN1092-1 Flange, UNI Flange, JIS/ KS Flange, BS4504 Flange, GB Flange, AWWA C207 Flange, GOST Flange, PSI Flange B.S: BS4504 , BS3293, BS1560, BS10 AS 2129: Table D; Table E; Table H ANSI B16.5, ANSI B16.47 Series A & B, MCarbon Steel SP44, ASA, API-605, AWWA, Custom Drawings ANSI : ANSI B16.5, ANSI B16.47(API605), MCarbon Steel SP44, ANSI B16.36, ANSI B16.48 ANSI B16.5, ANSI B16.47, MCarbon Steel SP44, ANSI B16.36, ANSI B16.48 American standard (ANSI) German (DIN) British standard (BS) DIN: DIN 2527, DIN 2566, DIN 2573, DIN 2576, DIN 2641, DIN 2642, DIN 2655, DIN 2656, DIN 2627, DIN 2628, DIN 2629, DIN 2631, DIN 2632, DIN 2633, DIN 2634, DIN 2635, DIN 2636, DIN 2637, DIN 2638 ASTM A694 is2062 Carbon Steel Flanges The other standard: AWWA C207; EN1092-1, GOST12820, JIS B2220; KS B1503, SABS1123; NFE29203; UNI2276 |

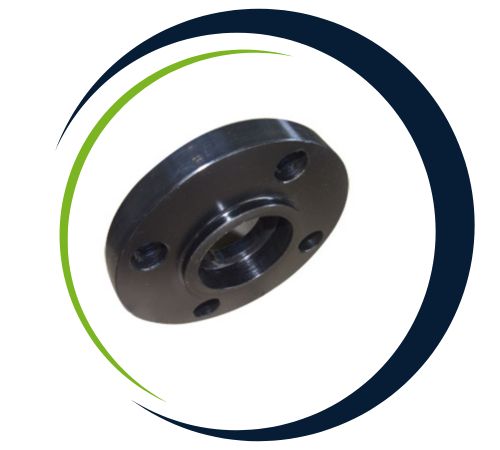

| Grades | Carbon Steel is2062, LF2, F42, A36, F60, F52, F70, F65, F56, F80, A105 |
| Material Test Certificates (MTC) as per EN 10204 3.1 and EN 10204 3.2, Test Certificates certifying NACE MR0103, NACE MR0175 | |
Ismail Flanges, a leading supplier in Indonesia, Jakarta, offers an extensive selection of Carbon Steel Threaded Flanges, including weld neck flanges, slip-on flanges, blind flanges, threaded flanges, and lap joint flanges. Designed for diverse industrial applications, our high-quality inventory and commitment to exceptional service make us a trusted choice for flange products in the region.
Carbon steel threaded flanges find extensive application in different industrial applications where high strength and durability are needed. They are extensively utilized in the oil and gas industry, chemical facilities, power generation and water treatment plants. The flanges are best suited for low pressure applications and where welding is not feasible. They create a leak-proof secure connection to piping systems, thus being most suitable for gas, water and oil pipelines. Also, their simplicity in installation and minimal cost make them appealing to most engineering teams.
| Size in In | Size in Millimeter | (OD) Outer Diameter | Flange Thick. | Hub OD | Weld Neck Outer Diameter | Welding Neck Length | Bore | RF Diameter | RF Height | PCD | Weld Face |
| A | B | C | D | E | F | G | H | I | J | ||
| 1/2 | 15 | 95 | 12.7 | 38 | 21.3 | 51 | Refer Note | 34.9 | 2 | 66.7 | 1.6 |
| 3/4 | 20 | 115 | 14.3 | 48 | 26.7 | 56 | 42.9 | 2 | 82.6 | 1.6 | |
| 1 | 25 | 125 | 15.9 | 54 | 33.4 | 60 | 50.8 | 2 | 88.9 | 1.6 | |
| 1 1/4 | 32 | 135 | 17.5 | 64 | 42.2 | 64 | 63.5 | 2 | 98.4 | 1.6 | |
| 1 1/2 | 40 | 155 | 19.1 | 70 | 48.3 | 67 | 73 | 2 | 114.3 | 1.6 | |
| 2 | 50 | 165 | 20.7 | 84 | 60.3 | 68 | 92.1 | 2 | 127 | 1.6 | |
| 2 1/2 | 65 | 190 | 23.9 | 100 | 73 | 75 | 104.8 | 2 | 149.2 | 1.6 | |
| 3 | 80 | 210 | 27 | 117 | 88.9 | 78 | 127 | 2 | 168.3 | 1.6 | |
| 3 1/2 | 90 | 230 | 28.6 | 133 | 101.6 | 79 | 139.7 | 2 | 184.2 | 1.6 | |
| 4 | 100 | 255 | 30.2 | 146 | 114.3 | 84 | 157.2 | 2 | 200 | 1.6 | |
| 5 | 125 | 280 | 33.4 | 178 | 141.3 | 97 | 185.7 | 2 | 235 | 1.6 | |
| 6 | 150 | 320 | 35 | 206 | 168.3 | 97 | 215.9 | 2 | 269.9 | 1.6 | |
| 8 | 200 | 380 | 39.7 | 260 | 219.1 | 110 | 269.9 | 2 | 330.2 | 1.6 | |
| 10 | 250 | 445 | 46.1 | 321 | 273 | 116 | 323.8 | 2 | 387.4 | 1.6 | |
| 12 | 300 | 520 | 49.3 | 375 | 323.8 | 129 | 381 | 2 | 450.8 | 1.6 | |
| 14 | 350 | 585 | 52.4 | 425 | 355.6 | 141 | 412.8 | 2 | 514.4 | 1.6 | |
| 16 | 400 | 650 | 55.6 | 483 | 406.4 | 144 | 469.9 | 2 | 571.5 | 1.6 | |
| 18 | 450 | 710 | 58.8 | 533 | 457 | 157 | 533.4 | 2 | 628.6 | 1.6 | |
| 20 | 500 | 775 | 62 | 587 | 508 | 160 | 584.2 | 2 | 685.8 | 1.6 | |
| 24 | 600 | 915 | 68.3 | 702 | 610 | 167 | 692.2 | 2 | 812.8 | 1.6 |
| Welding Neck Flange Bores (in inch) | ||||||||||||||
| NPS | O D | Sch 10 | Sch 20 | Sch 30 | Std. Wall | Sch 40 | Sch 60 | Extra Strong | Sch 80 | Sch 100 | Sch 120 | Sch 140 | Sch 160 | Double Extra Strong |
| 1/2” | 0.840 | 0.674 | 0.622 | 0.622 | 0.546 | 0.546 | 0.464 | 0.252 | ||||||
| 3/4” | 1.050 | 0.884 | 0.824 | 0.824 | 0.742 | 0.742 | 0.612 | 0.434 | ||||||
| 1” | 1.315 | 1.097 | 1.049 | 1.049 | 0.957 | 0.957 | 0.815 | 0.599 | ||||||
| 1.1/4” | 1.660 | 1.442 | 1.380 | 1.380 | 1.278 | 1.278 | 1.160 | 0.896 | ||||||
| 1.1/2” | 1.900 | 1.682 | 1.610 | 1.610 | 1.500 | 1.500 | 1.338 | 1.100 | ||||||
| 2” | 2.375 | 2.157 | 2.067 | 2.067 | 1.939 | 1.939 | 1.687 | 1.503 | ||||||
| 2.1/2” | 2.875 | 2.635 | 2.469 | 2.469 | 2.323 | 2.323 | 2.125 | 1.771 | ||||||
| 3” | 3.500 | 3.260 | 3.068 | 3.068 | 2.900 | 2.900 | 2.624 | 2.300 | ||||||
| 3-1/2” | 4.000 | 3.760 | 3.548 | 3.548 | 3.364 | 3.364 | 2.728 | |||||||
| 4” | 4.500 | 4.260 | 4.026 | 4.026 | 3.826 | 3.826 | 3.624 | 3.438 | 3.152 | |||||
| 5” | 5.563 | 5.295 | 5.047 | 5.047 | 4.813 | 4.813 | 4.563 | 4.313 | 4.063 | |||||
| 6” | 6.625 | 6.357 | 6.065 | 6.065 | 5.761 | 5.761 | 5.501 | 5.187 | 4.897 | |||||
| 8” | 8.625 | 8.329 | 8.125 | 8.071 | 7.981 | 7.981 | 7.813 | 7.625 | 7.625 | 7.437 | 7.187 | 7.001 | 6.813 | 6.875 |
| 10” | 10.750 | 10.420 | 10.250 | 10.136 | 10.020 | 10.020 | 9.750 | 9.750 | 9.562 | 9.312 | 9.062 | 8.750 | 8.500 | 8.750 |
| 12” | 12.750 | 12.390 | 12.250 | 12.090 | 12.000 | 11.938 | 11.626 | 11.750 | 11.374 | 11.062 | 10.750 | 10.500 | 10.126 | 10.750 |
| 14” | 14.000 | 13.500 | 13.376 | 13.250 | 13.250 | 13.124 | 12.812 | 13.000 | 12.500 | 12.124 | 11.814 | 11.500 | 11.188 | |
| 16” | 16.000 | 15.500 | 15.376 | 15.250 | 15.250 | 15.000 | 14.688 | 15.000 | 14.312 | 13.938 | 13.564 | 13.124 | 12.812 | |
| 18” | 18.000 | 17.500 | 17.376 | 17.124 | 17.250 | 16.876 | 16.500 | 17.000 | 16.124 | 15.688 | 15.250 | 14.876 | 14.438 | |
| 20” | 20.000 | 19.500 | 19.250 | 19.000 | 19.250 | 18.812 | 18.376 | 19.000 | 17.938 | 17.438 | 17.000 | 16.500 | 16.062 | |
| 24” | 24.000 | 23.500 | 23.250 | 22.876 | 23.250 | 22.624 | 22.062 | 23.000 | 21.562 | 20.938 | 20.376 | 19.876 | 19.312 | |
| 30” | 30.000 | 29.376 | 29.000 | 28.750 | 29.250 | 29.000 | ||||||||
| 36” | 36.000 | 35.376 | 35.000 | 34.750 | 35.250 | 34.500 | 35.000 | |||||||
| 42” | 42.000 | 41.250 | 41.000 | |||||||||||
Yes, we offer custom sizes for Carbon Steel Threaded Flanges to meet specific project needs. Our team at Ismail Flanges is committed to providing tailored solutions for all your requirements. For more details, contact us at sales@ismailflanges.id.
We are renowned for delivering products with precise, accurate dimensions. Each product undergoes thorough testing, both destructive and non-destructive, to ensure quality before being shipped to our customers.
