With its main office in Jakarta, Indonesia, Ismail Flanges is a reputable and skilled producer and supplier of stainless steel 304 flanges, catering to a variety of industries in Indonesia as well as international markets. We provide SS 304 flanges that satisfy international standards and are perfect for both general and corrosive environments. We are renowned for producing high-quality, precisely engineered products. The construction, chemical, food processing, and water treatment industries all make extensive use of these flanges. Ismail Flanges guarantees reliable performance, prompt delivery, and affordable solutions that are customised to meet the unique needs of every client thanks to its sophisticated production capabilities and strong emphasis on quality control.
In addition to trace amounts of carbon, manganese, silicon, phosphorus, and sulphur, stainless steel 304 flanges are made up of 18–20% chromium and 8–10.5% nickel, with iron making up the remaining percentage. Excellent corrosion resistance is provided by this austenitic stainless steel, especially in oxidising environments. The tensile, yield, and elongation strengths of stainless steel 304 are approximately 515 MPa, 205 MPa, and 40%, respectively. Additionally, it has a density of 8.0 g/cm³, good formability, and weldability, which make it a very adaptable and popular material in both commercial and industrial applications.
| Specifications List | ASTM A182 / ASME SA182 |
|---|---|
| Class / Pressure Rating | 150#, 300#, 600#, 900#, 1500#, 2500#, PN6, PN10, PN16, PN25, PN40, PN64 etc. |
| Size Chart | 1/2″ (15 NB) to 48″ (1200NB) |
| ASTM Standards | ANSI/ASME B16.5, B16.48, BS4504, B 16.47 Series A & B, BS 10, EN-1092, DIN, etc. |
| Standard s | ANSI, ASME, BS, DIN, EN etc. |

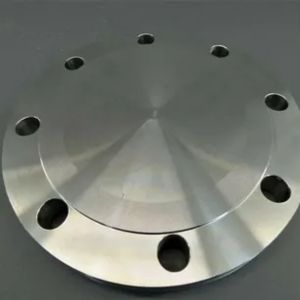

Ismail Flanges, a leading supplier in Indonesia, Jakarta, offers an extensive selection of Stainless Steel 304 flanges, including weld neck flanges, slip-on flanges, blind flanges, threaded flanges, and lap joint flanges. Designed for diverse industrial applications, our high-quality inventory and commitment to exceptional service make us a trusted choice for flange products in the region.
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N |
|---|---|---|---|---|---|---|---|---|---|
| SS 304 | 0.08 max | 2 max | 0.75 max | 0.045 max | 0.030 max | 18 – 20 | – | 8 – 11 | – |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
|---|---|---|---|---|
| 8.0 g/cm3 | 1400 °C (2550 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 35 % |
Because of their exceptional strength, resistance to corrosion, and hygienic qualities, stainless steel 304 flanges are utilised in a wide range of industries. They are frequently used in industries where sanitation is crucial, such as dairy systems, pharmaceutical manufacturing, and food and beverage processing. Because SS 304 flanges are resistant to mild chemicals, they are utilised in the chemical industry for pressure vessels and pipelines. They are also used in HVAC systems, construction, and water treatment facilities to safely connect pipes. They are a popular option for both indoor and outdoor piping systems because of their resistance to corrosion and simplicity of fabrication.
| NPS (in.) | Stainless Steel 304 Flanges Dimensions | ||||
|---|---|---|---|---|---|
| Dia. of Flange (in.) | No. of Bolts | Dia. of Bolts (in.) | Dia. of Bolt Holes (in.) | Bolt Circle (in.) | |
| 1/4 | 3-3/8 | 4 | 1/2 | 0.62 | 2-1/4 |
| 1/2 | 3-1/2 | 4 | 1/2 | 0.62 | 2-3/8 |
| 3/4 | 3-7/8 | 4 | 1/2 | 0.62 | 2-3/4 |
| 1 | 4-1/4 | 4 | 1/2 | 0.62 | 3-1/8 |
| 1-1/4 | 4-5/8 | 4 | 1/2 | 0.62 | 3-1/2 |
| 1-1/2 | 5 | 4 | 1/2 | 0.62 | 3-7/8 |
| 2 | 6 | 4 | 5/8 | 0.75 | 4-3/4 |
| 2-1/2 | 7 | 4 | 5/8 | 0.75 | 5-1/2 |
| 3 | 7-1/2 | 4 | 5/8 | 0.75 | 6 |
| 3-1/2 | 8-1/2 | 8 | 5/8 | 0.75 | 7 |
| 4 | 9 | 8 | 5/8 | 0.75 | 7-1/2 |
| 5 | 10 | 8 | 3/4 | 0.88 | 8-1/2 |
| 6 | 11 | 8 | 3/4 | 0.88 | 9-1/2 |
| 8 | 13-1/2 | 8 | 3/4 | 0.88 | 11-3/4 |
| 10 | 16 | 12 | 7/8 | 1 | 14-1/4 |
| 12 | 19 | 12 | 7/8 | 1 | 17 |
| 14 | 21 | 12 | 1 | 1.12 | 18-3/4 |
| 16 | 23-1/2 | 16 | 1 | 1.12 | 21-1/4 |
| 18 | 25 | 16 | 1-1/8 | 1.25 | 22-3/4 |
| 20 | 27-1/2 | 20 | 1-1/8 | 1.25 | 25 |
| 24 | 32 | 20 | 1-1/4 | 1.38 | 29-1/2 |
Yes, we offer custom sizes for Stainless Steel 304 flanges to meet specific project needs. Our team at Ismail Flanges is committed to providing tailored solutions for all your requirements. For more details, contact us at sales@ismailflanges.id.
We are renowned for delivering products with precise, accurate dimensions. Each product undergoes thorough testing, both destructive and non-destructive, to ensure quality before being shipped to our customers.
