Located in Jakarta, Indonesia, Ismail Flanges is a top producer and supplier of stainless steel 310H flanges, providing high-end flange solutions designed for applications requiring high pressure and extreme heat. Because of their high carbon content and exceptional thermal stability, our SS 310H flanges are designed to provide exceptional performance in demanding industrial settings. We provide services to many different industries, such as the thermal processing, power generation, and petrochemical sectors. Ismail Flanges has established a reputation for providing dependable and long-lasting stainless steel flanges in Indonesia and abroad by emphasising quality, precise engineering, and prompt delivery.
Stainless Steel 310H Flanges are composed of 24–26% chromium, 19–22% nickel, and a higher carbon content (0.04–0.10%) compared to 310S, which improves high-temperature strength. In high-temperature settings, this alloy offers exceptional resistance to oxidation and carburisation. The material’s tensile strength is roughly 515 MPa, its yield strength is 205 MPa, and its elongation is about 40%. SS 310H is appropriate for high-temperature and high-stress applications because it retains its structural integrity at temperatures as high as 1100°C. It is a dependable option in heat-intensive industries due to its mechanical strength and thermal stability.
Specifications : ASTM A182 & ASME SA182
Dimensions : ANSI/ASME B16.5, B 16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, etc.
Standard : ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, etc.
Size : 1/2″ (15 NB) to 48″ (1200NB)
Class / Pressure : 150#, 300#, 600#, 900#, 1500#, 2500#, PN6, PN10, PN16, PN25, PN40, PN64 etc.

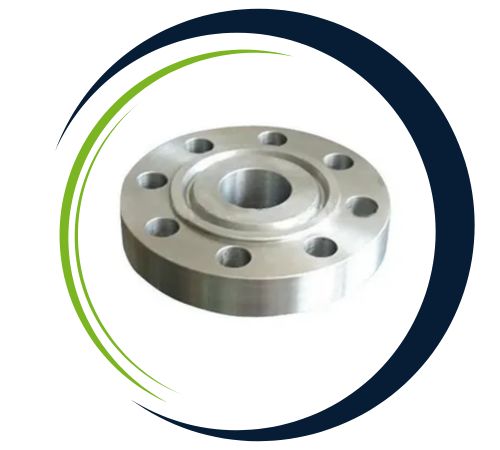

Flange Face Type : Flat Face (FF), Raised Face (RF), Ring Type Joint (RTJ)
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N | |
| 310H | min. | 0.04 | – | – | – | – | 24.0 | – | 19.0 | – |
| max. | 0.10 | 2.0 | 1.00 | 0.045 | 0.03 | 26.0 | 21.0 | – | ||
| Grade | Tensile Strength (MPa) min | Yield Strength 0.2% Proof (MPa) min | Elongation (% in 50mm) min | Hardness | |
| Rockwell B (HR B) max | Brinell (HB) max | ||||
| 310H | 515 | 205 | 40 | 95 | 217 |

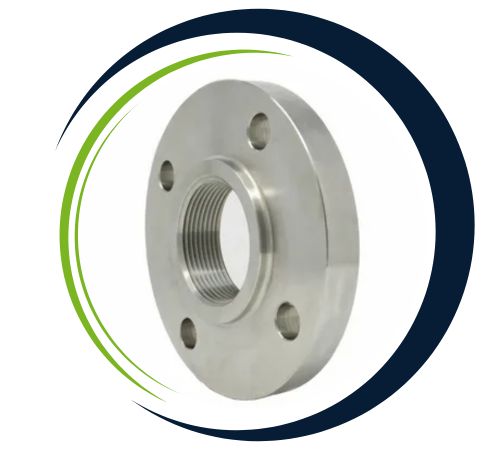

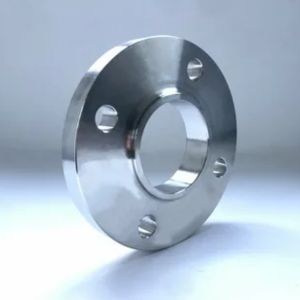

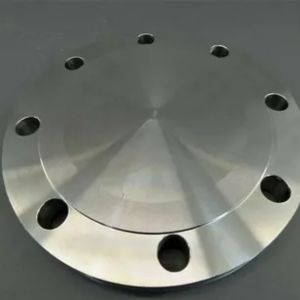

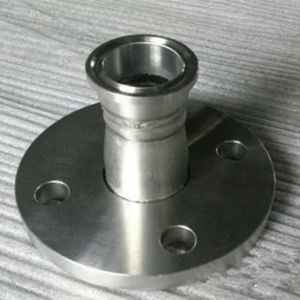

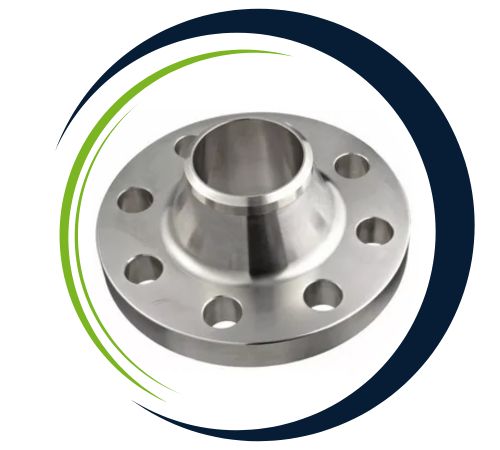

Ismail Flanges, a leading supplier in Indonesia, Jakarta, offers an extensive selection of Stainless Steel 310H flanges, including weld neck flanges, slip-on flanges, blind flanges, threaded flanges, and lap joint flanges. Designed for diverse industrial applications, our high-quality inventory and commitment to exceptional service make us a trusted choice for flange products in the region.
| Grade | UNS No | Old British | Euronorm | Swedish SS | Japanese JIS | ||
| BS | En | No | Name | ||||
| 310H | S31009 | – | – | – | – | – | – |
High-temperature and high-pressure industrial applications frequently use stainless steel 310H flanges. They are perfect for furnace parts, heat exchangers, and high-temperature piping systems because of their increased carbon content, which gives them more strength at higher temperatures. Refineries, thermal power plants, and petrochemical facilities that require resistance to oxidation, thermal fatigue, and carburisation make extensive use of these flanges. They can also be used in combustion chambers, kilns, and incinerators. Crucial process and power-related infrastructure depends on SS 310H flanges because they provide long-term durability in settings that demand stability under heat stress.
| ASME/ANSI B 16.5 | Welding Neck Flange, Slip on Flange, Blind Flange, High Hub Blind Flange, Socket Weld Flange, Lap Joint Flange, Threaded Flange, Ring Type Joint Flange |
| PRESSURE CLASS | 150, 300, 400, 600, 900, 1500, 2500 |
| ASME/ANSI B 16.47 | Welding Neck Flange, Blind Flange [Series A & B] |
| PRESSURE CLASS | 75, 150, 300, 400, 600, 900 |
| ASME/ANSI B 16.36 | Welding Neck Flange, Slip on Flange, Threaded Flange |
| PRESSURE CLASS | 300, 400, 600, 900, 1500, 2500 |
| BS 4504 SEC 3.1 | Welding Neck Flange, Hubbed Slip on Flange, Hubbed Threaded Flange, Lapped Pipe End Flange, Plate Flange, Loose Plate Flange, Loose Plate With Weld Neck Flange, Blank Flange |
| PRESSURE CLASS | PN 2.5 TO PN 40 |
| BS 4504[PART 1] | Welding Neck Flange, Hubbed Slip-On Hubbed Threaded, Plate Flange, Loose Plate With Weld On Plate Collar, Blank Flange |
| PRESSURE CLASS | PN 2.5 TO PN 400 |
| BS 1560 BOSS | Welding Neck Flange, Socket Welding Flange, Slip-On Flange, Blind Flange, Screwed Boss Flange, Lapped Flange |
| PRESSURE CLASS | 150, 300, 400, 600, 900, 1500, 2500 |
| BS10 | Welding Neck Flange, Plate Slip-On Flange, Screwed Boss Flange, Slip-On Boss Flange, Blind Flange |
| TABLE | D, E, F, H |
| DIN FLANGES | DIN 2527, 2566, 2573, 2576, 2641,2642, 2655, 2656, 2627, 2628, 2629, 2631, 2632, 2633, 2634, 2635, 2636, 2637,2638, 2673 |
| PRESSURE CLASS | PN 6 TO PN 100 |
Yes, we offer custom sizes for Stainless Steel 310H flanges to meet specific project needs. Our team at Ismail Flanges is committed to providing tailored solutions for all your requirements. For more details, contact us at sales@ismailflanges.id.
We are renowned for delivering products with precise, accurate dimensions. Each product undergoes thorough testing, both destructive and non-destructive, to ensure quality before being shipped to our customers.
Our team is ready to assist you. Contact us for any queries or personalized solutions.
